高氯酸水合-(高氯酸根)双-[μ-()-2-({[2-(吡啶-2-基)乙基]亚氨基}-甲基)苯酚根-κ,',:]二铜(II)的晶体结构

Crystal structure of aqua-(perchlorato)bis-[μ-()-2-({[2-(pyridin-2-yl)eth-yl]imino}-meth-yl)phenolato-κ,',:]dicopper(II) perchlorate.

作者信息

Okeke Ugochukwu, Gultneh Yilma, Butcher Ray J

机构信息

Department of Chemistry, Howard University, 525 College Street NW, Washington, DC 20059, USA.

出版信息

Acta Crystallogr E Crystallogr Commun. 2017 Oct 20;73(Pt 11):1708-1711. doi: 10.1107/S2056989017014694. eCollection 2017 Nov 1.

Abstract

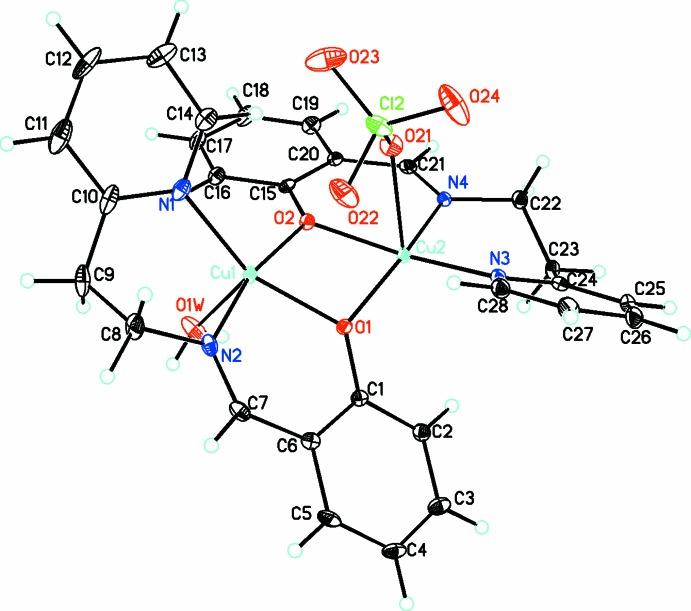

The title compound, [Cu(ClO)(CHNO)(HO)]ClO, crystallizes as an unsymmetrical dinuclear cation bridged by the phen-oxy O atoms with one Cu atom coordinated by a water mol-ecule and the other by a perchlorate anion, thus making both Cu atoms five-coordinate, and with a further perchlorate anion present for charge balance. A long inter-action [2.9893 (5) Å] between one of the two Cu atoms and an O atom of the perchlorate counter-ion links the cations and anions into linear chains along the axis direction. In addition, the water H atoms link with the perchlorate counter-ion. These inter-actions, along with numerous C-H⋯O inter-actions between the tetra-hedral perchlorate anions, link the ions into a complex three-dimensional array. One of the perchlorate anions is disordered over two conformations with occupancies of 0.586 (4) and 0.414 (4).

摘要

标题化合物[Cu(ClO)(CHNO)(HO)]ClO以一种不对称双核阳离子形式结晶,该阳离子由苯氧基O原子桥连,其中一个Cu原子由一个水分子配位,另一个由一个高氯酸根阴离子配位,从而使两个Cu原子均为五配位,并且存在另一个高氯酸根阴离子用于电荷平衡。两个Cu原子之一与高氯酸根抗衡离子的一个O原子之间存在长相互作用[2.9893 (5) Å],这将阳离子和阴离子沿轴方向连接成线性链。此外,水H原子与高氯酸根抗衡离子相连。这些相互作用,连同四面体高氯酸根阴离子之间大量的C-H⋯O相互作用,将离子连接成一个复杂的三维阵列。其中一个高氯酸根阴离子在两种构象上无序,占有率分别为0.586 (4)和0.414 (4)。
