Moon Suk-Hee, Kang Youngjin, Park Ki-Min
Department of Food and Nutrition, Kyungnam College of Information and Technology, Busan 47011, Republic of Korea.
Division of Science Education, Kangwon National University, Chuncheon 24341, Republic of Korea.
Acta Crystallogr E Crystallogr Commun. 2017 Nov 17;73(Pt 12):1871-1874. doi: 10.1107/S205698901701619X. eCollection 2017 Dec 1.

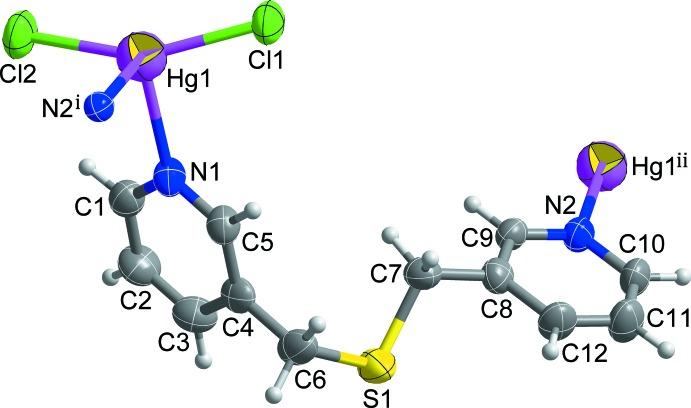

The reaction of mercury(II) chloride with bis-(pyridin-3-ylmeth-yl)sulfane (, CHNS) in methanol afforded the title crystalline coordination polymer -poly[[di-chlorido-mercury(II)]-μ-bis-(pyridin-3-ylmeth-yl)sulfane-κ:'], [HgCl] . The asymmetric unit consists of one Hg cation, one ligand and two chloride anions. Each Hg ion is coordinated by two pyridine N atoms from separate ligands and two chloride anions. The metal adopts a highly distorted tetra-hedral geometry, with bond angles about the central atom in the range 97.69 (12)-153.86 (7)°. Each ligand bridges two Hg ions, forming an infinite -(Hg-) - zigzag chain along the axis, with an Hg⋯Hg separation of 10.3997 (8) Å. In the crystal, adjacent chains are connected by inter-molecular C-H⋯Cl hydrogen bonds, together with Hg-Cl⋯π inter-actions [chloride-to-centroid distance = 3.902 (3) Å], that form between a chloride anion and the one of the pyridine rings of , generating a two-dimensional layer extending parallel to (101). These layers are further linked by inter-molecular C-H⋯π hydrogen bonds, forming a three-dimensional supra-molecular network.
氯化汞(II)与双(吡啶-3-基甲基)硫烷(,CHNS)在甲醇中反应,得到标题晶体配位聚合物 -聚[[二氯汞(II)]-μ-双(吡啶-3-基甲基)硫烷-κ:'],[HgCl] 。不对称单元由一个Hg阳离子、一个配体和两个氯离子阴离子组成。每个Hg离子由来自不同配体的两个吡啶N原子和两个氯离子阴离子配位。金属采用高度扭曲的四面体几何构型,中心原子周围的键角范围为97.69 (12)-153.86 (7)°。每个配体桥连两个Hg离子,沿轴形成无限的-(Hg-) - 锯齿链,Hg⋯Hg间距为10.3997 (8) Å。在晶体中,相邻链通过分子间C-H⋯Cl氢键以及Hg-Cl⋯π相互作用[氯到质心距离 = 3.902 (3) Å]相连,该相互作用在氯离子阴离子与配体的一个吡啶环之间形成,产生平行于(101)延伸的二维层。这些层通过分子间C-H⋯π氢键进一步连接,形成三维超分子网络。
