Edmonds Mark T, Collins James L, Hellerstedt Jack, Yudhistira Indra, Gomes Lídia C, Rodrigues João N B, Adam Shaffique, Fuhrer Michael S
School of Physics and Astronomy, Monash University, Clayton, Victoria 3800, Australia.
Monash Centre for Atomically Thin Materials, Monash University, Clayton, Victoria 3800 Australia.
Sci Adv. 2017 Dec 22;3(12):eaao6661. doi: 10.1126/sciadv.aao6661. eCollection 2017 Dec.

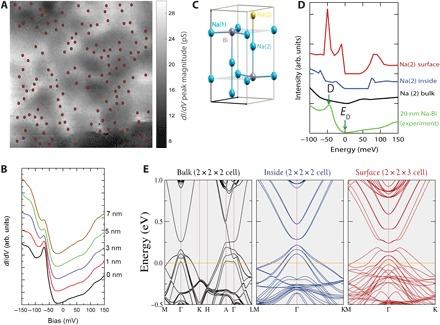

Topological Dirac semimetals (TDSs) are three-dimensional analogs of graphene, with carriers behaving like massless Dirac fermions in three dimensions. In graphene, substrate disorder drives fluctuations in Fermi energy, necessitating construction of heterostructures of graphene and hexagonal boron nitride (h-BN) to minimize the fluctuations. Three-dimensional TDSs obviate the substrate and should show reduced fluctuations due to better metallic screening and higher dielectric constants. We map the potential fluctuations in TDS NaBi using a scanning tunneling microscope. The rms potential fluctuations are significantly smaller than the thermal energy room temperature (Δ = 4 to 6 meV = 40 to 70 K) and comparable to the highest-quality graphene on h-BN. Surface Na vacancies produce a novel resonance close to the Dirac point with surprisingly large spatial extent and provide a unique way to tune the surface density of states in a TDS thin-film material. Sparse defect clusters show bound states whose occupation may be changed by applying a bias to the scanning tunneling microscope tip, offering an opportunity to study a quantum dot connected to a TDS reservoir.
拓扑狄拉克半金属(TDSs)是石墨烯的三维类似物,其载流子在三维空间中的行为类似于无质量狄拉克费米子。在石墨烯中,衬底无序会导致费米能的波动,因此需要构建石墨烯与六方氮化硼(h-BN)的异质结构以最小化这种波动。三维TDSs无需衬底,并且由于更好的金属屏蔽和更高的介电常数,应表现出更小的波动。我们使用扫描隧道显微镜绘制了TDS NaBi中的电势波动。均方根电势波动明显小于室温下的热能(Δ = 4至6毫电子伏特 = 40至70开尔文),并且与h-BN上质量最高的石墨烯相当。表面钠空位在狄拉克点附近产生了一种具有惊人的大空间范围的新型共振,并提供了一种独特的方式来调节TDS薄膜材料中的表面态密度。稀疏的缺陷簇显示出束缚态,通过向扫描隧道显微镜尖端施加偏压可以改变其占据情况,这为研究连接到TDS库的量子点提供了机会。
