采用偏振敏感光学相干断层扫描和机械压痕技术定量评估牛早期骨关节炎模型的双折射。

Quantifying birefringence in the bovine model of early osteoarthritis using polarisation-sensitive optical coherence tomography and mechanical indentation.

机构信息

The Dodd-Walls Centre for Photonic and Quantum Technologies, Department of Physics, The University of Auckland, Private Bag, 92019, Auckland, New Zealand.

Department of Chemical and Materials Engineering, The University of Auckland, Private Bag, 92019, Auckland, New Zealand.

出版信息

Sci Rep. 2018 Jun 5;8(1):8568. doi: 10.1038/s41598-018-25982-9.

Abstract

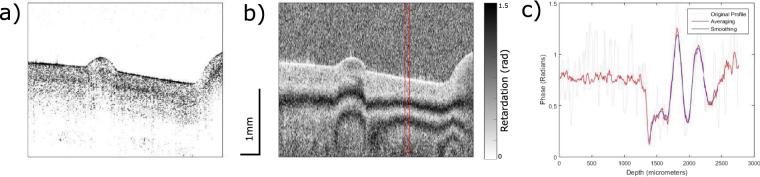

Recent studies have shown potential for using polarisation sensitive optical coherence tomography (PS-OCT) to study cartilage morphology, and to be potentially used as an in vivo, non-invasive tool for detecting osteoarthritic changes. However, there has been relatively limited ability of this method to quantify the subtle changes that occur in the early stages of cartilage degeneration. An established mechanical indenting technique that has previously been used to examine the microstructural response of articular cartilage was employed to fix the bovine samples in an indented state. The samples were subject to creep loading with a constant compressive stress of 4.5 MPa and, when imaged using PS-OCT, enabled birefringent banding patterns to be observed. The magnitude of the birefringence was quantified using the birefringence coefficient (BRC) and statistical analysis revealed that PS-OCT is able to detect and quantify significant changes between healthy and early osteoarthritic cartilage (p < 0.001). This presents a novel utilization of PS-OCT for future development as an in vivo assessment tool.

摘要

最近的研究表明,偏振敏感光相干断层扫描(PS-OCT)在研究软骨形态方面具有潜力,并可能作为一种用于检测骨关节炎变化的体内非侵入性工具。然而,这种方法在量化软骨退变早期发生的细微变化方面的能力相对有限。一种已建立的机械压痕技术,之前曾用于检查关节软骨的微观结构响应,被用于将牛样本固定在压痕状态。样本在恒定的 4.5 MPa 压缩应力下进行蠕变加载,当使用 PS-OCT 进行成像时,可以观察到双折射带模式。使用双折射系数(BRC)对双折射的幅度进行量化,统计分析表明 PS-OCT 能够检测和量化健康和早期骨关节炎软骨之间的显著变化(p < 0.001)。这为 PS-OCT 作为未来体内评估工具的新用途提供了依据。
