Suttiruengwong Supakij, Pivsa-Art Sommai, Chareonpanich Metta
Department of Materials Science and Engineering, Faculty of Engineering and Industrial Technology, Silpakorn University, Sanamchandra Palace Campus, Nakhon Pathom 73000, Thailand.
Department of Material and Metallurgical Engineering, Faculty of Engineering, Rajamangala University of Technology Thanyaburi, Pathumthani 12110, Thailand.
Materials (Basel). 2018 Jul 5;11(7):1142. doi: 10.3390/ma11071142.

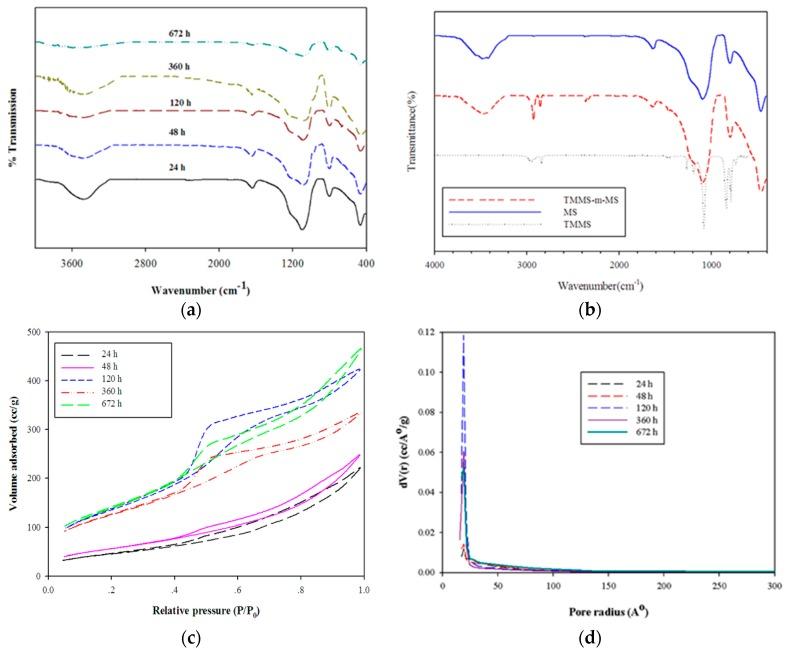

This work describes the preparation of mesoporous silica by the green reaction of rice husk ash (RHA) with glycerol, followed by the modification and the potential use as a drug carrier. The reaction was carried out at 215 °C for 2 h. The solution was further hydrolyzed with deionized water and aged for various times (24, 48, 120, 360, 528 and 672 h) before calcinations at 500 °C for 24 h. Further treatment of prepared mesoporous silica was performed using trimethylmethoxysilane (TMMS) to obtain hydrophobic Mesoporous silica. For all synthesized silicas, silica contents were as high as 95 wt %, whereas organic residues were less than 3 wt %. RHA-glycerol showed the highest specific surface area with smallest pore diameter (205.70 m²/g, 7.46 nm) when aged for 48 h. The optimal hydrolysis-ageing period of 120 h resulted in 500.7 m²/g specific surface area, 0.655 cm³/g pore volume and 5.23 nm pore diameter. The surface modification of RHA-glycerol occurred through the reaction with TMMS as confirmed by FTIR (Fourier-transform infrared spectroscopy). Ibuprofen was selected as a model drug for the adsorption experiments. The adsorption under supercritical CO₂ was carried out at isothermal temperature of 40 °C and 100 bar; % ibuprofen loading of TMMS modified mesoporous silica (TMMS-g-MS) was 6 times less than that of mesoporous silica aged for 24 h (MS-24h) due to the hydrophobic nature of modified mesoporous silica, not surface and pore characteristics. The release kinetics of ibuprofen-loaded mesoporous silicas were also investigated in vitro. The release rate of ibuprofen-loaded MS-24h was much faster than that of ibuprofen-loaded TMMS-g-MS, but comparable to the crystalline ibuprofen. The slower release rate was attributed to the diffusion control and the stability of hydrophobic nature of modified silica. This would allow the design of a controlled release drug delivery system.
这项工作描述了通过稻壳灰(RHA)与甘油的绿色反应制备介孔二氧化硅,随后进行改性以及作为药物载体的潜在用途。反应在215℃下进行2小时。溶液用去离子水进一步水解,并在不同时间(24、48、120、360、528和672小时)老化,然后在500℃下煅烧24小时。使用三甲基甲氧基硅烷(TMMS)对制备的介孔二氧化硅进行进一步处理,以获得疏水性介孔二氧化硅。对于所有合成的二氧化硅,二氧化硅含量高达95 wt%,而有机残留物小于3 wt%。当老化48小时时,RHA-甘油显示出最高的比表面积和最小的孔径(205.70 m²/g,7.46 nm)。120小时的最佳水解-老化期导致比表面积为500.7 m²/g,孔体积为0.655 cm³/g,孔径为5.23 nm。通过傅里叶变换红外光谱(FTIR)证实,RHA-甘油的表面改性是通过与TMMS反应实现的。选择布洛芬作为吸附实验的模型药物。在40℃和100 bar的等温温度下进行超临界CO₂吸附;由于改性介孔二氧化硅的疏水性,而非表面和孔特征,TMMS改性介孔二氧化硅(TMMS-g-MS)的布洛芬负载量比老化24小时的介孔二氧化硅(MS-24h)少6倍。还研究了负载布洛芬的介孔二氧化硅的体外释放动力学。负载布洛芬的MS-24h的释放速率比负载布洛芬的TMMS-g-MS快得多,但与结晶布洛芬相当。较慢的释放速率归因于扩散控制和改性二氧化硅疏水性的稳定性。这将有助于设计一种控释药物递送系统。
