用于医学应用的磁驱动胶囊微机器人系统的性能评估

Performance Evaluation of a Magnetically Actuated Capsule Microrobotic System for Medical Applications.

作者信息

Fu Qiang, Zhang Songyuan, Guo Shuxiang, Guo Jian

机构信息

Tianjin Key Laboratory for Control Theory & Application in Complicated Systems and Biomedical Robot Laboratory, School of Electrical and Electronic Engineering, Tianjin University of Technology, Binshui Xidao 391, Tianjin 300384, China.

State Key Laboratory of Robotics and System, Harbin Institute of Technology, Harbin 150001, China.

出版信息

Micromachines (Basel). 2018 Dec 4;9(12):641. doi: 10.3390/mi9120641.

DOI:10.3390/mi9120641
PMID:30518087
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC6316535/
Abstract

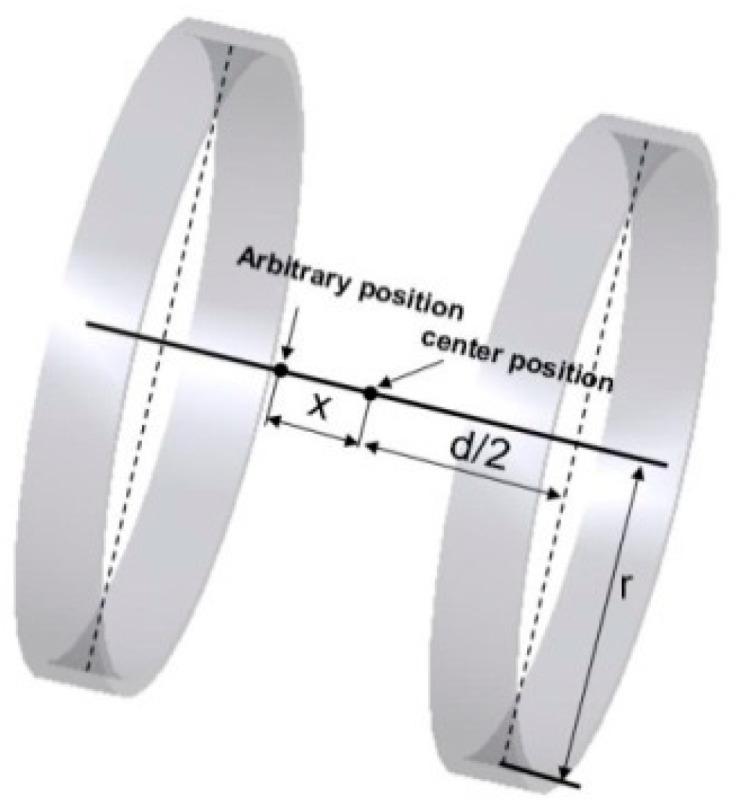

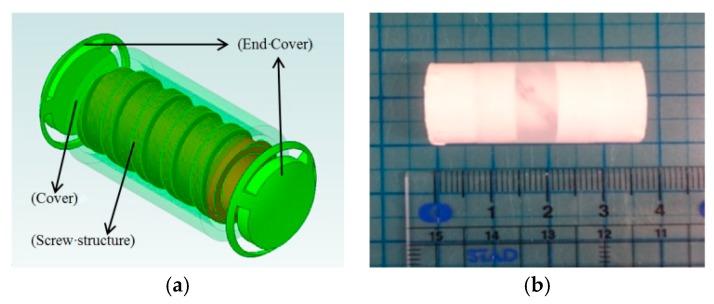

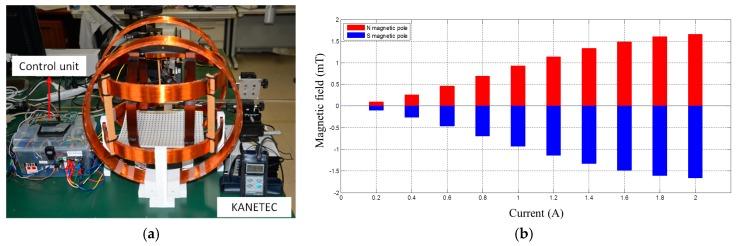

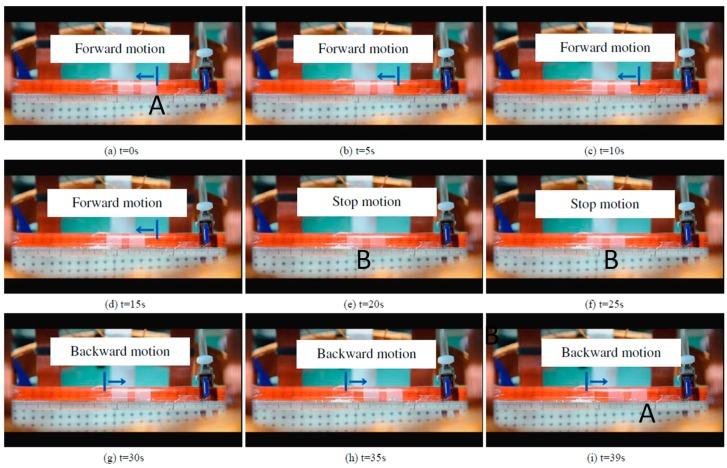

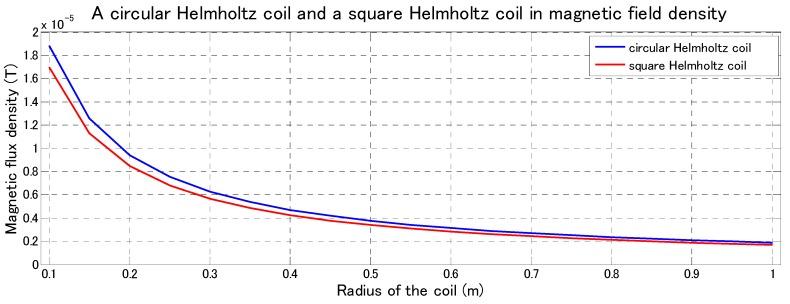

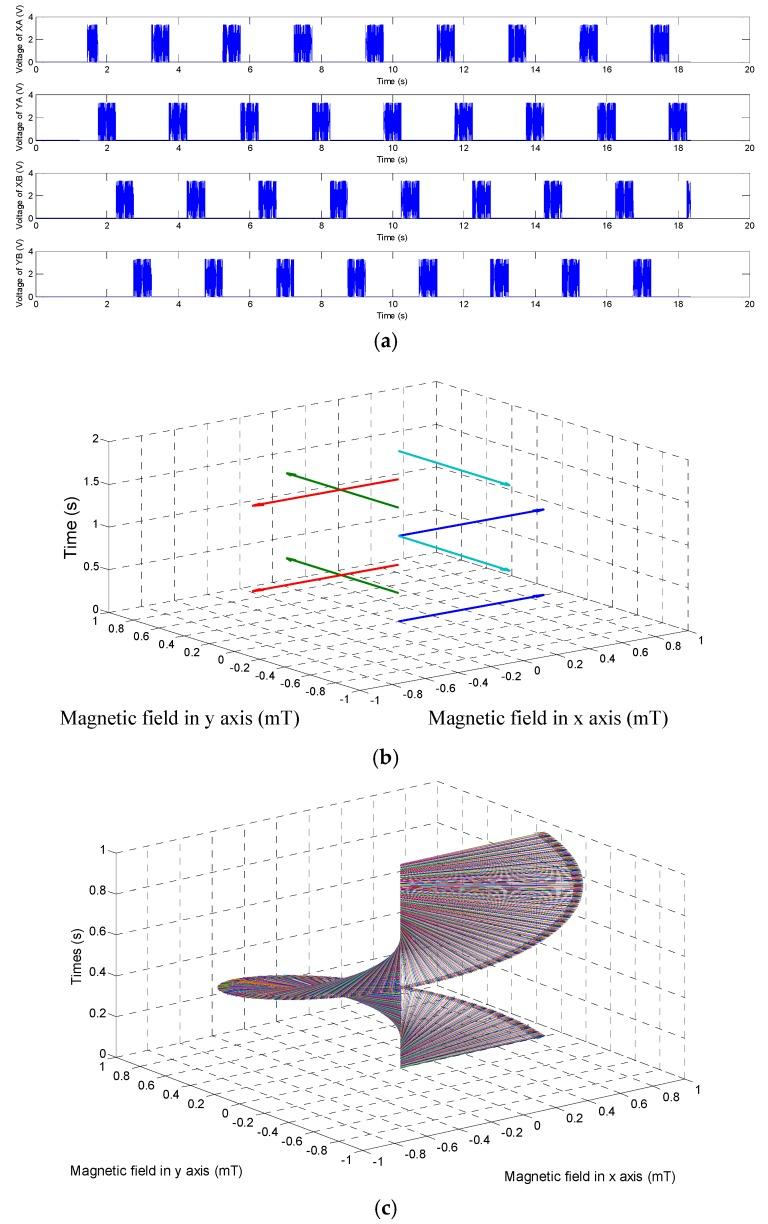

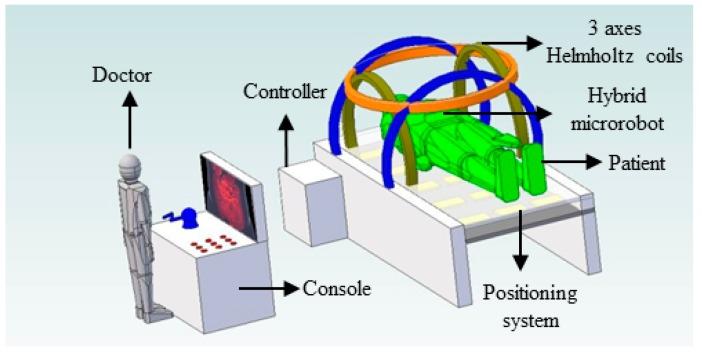

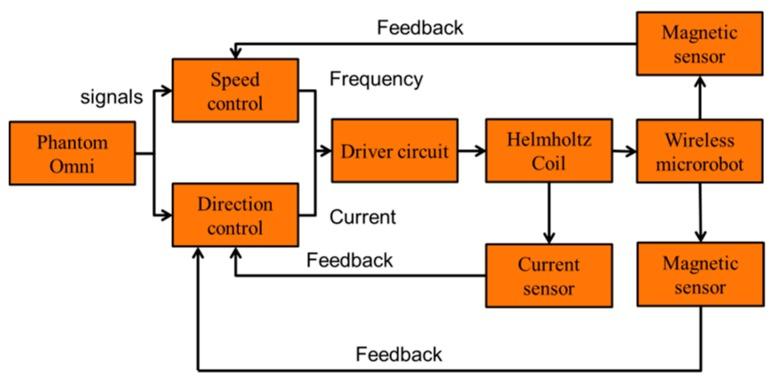

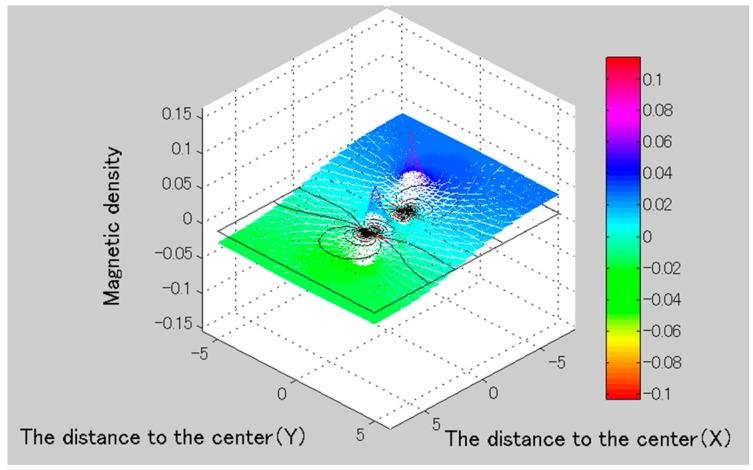

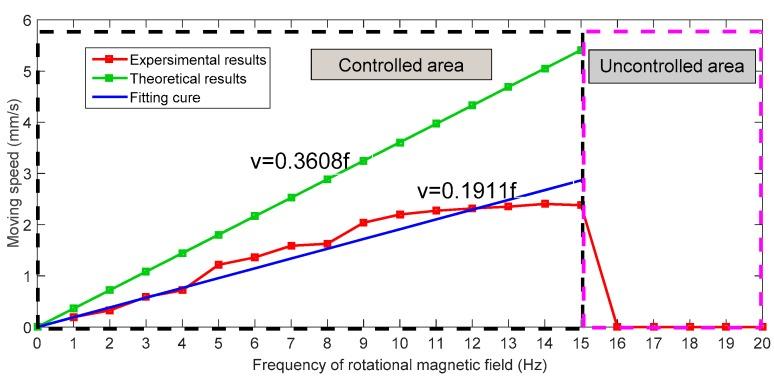

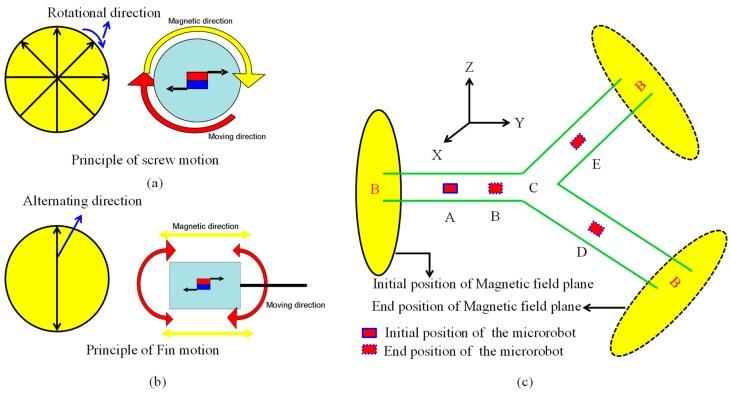

The paper aims to propose a magnetic actuated capsule microrobotic system, which is composed of a magnetically actuated microrobot with a screw jet mechanism, a driving system, and a positioning system. The magnetically actuated microrobot embedded an O-ring magnet as an actuator has potential for achieving a particular task, such as medical diagnose or drug delivery. The driving system composes of a three axes Helmholtz coils to generate a rotational magnetic field for controlling the magnetically actuated microrobot to realize the basic motion in pipe, e.g., forward/backward motion and upward/downward motion. The positioning system is used to detect the pose of the magnetically actuated microrobot in pipe. We will discuss the shape of the Helmholtz coils and the magnetic field around the O-ring magnet to obtain an optimal performance of the magnetically actuated microrobot. The experimental result indicated that the microrobot with screw jet motion has a flexible movement in pipe by adjusting the rotational magnetic field plane and the magnetic field changing frequency.

摘要

本文旨在提出一种磁驱动胶囊微机器人系统，该系统由具有螺旋喷射机制的磁驱动微机器人、驱动系统和定位系统组成。嵌入O形环磁体作为致动器的磁驱动微机器人具有完成特定任务的潜力，如医学诊断或药物输送。驱动系统由三轴亥姆霍兹线圈组成，用于产生旋转磁场，以控制磁驱动微机器人在管道中实现基本运动，例如向前/向后运动和向上/向下运动。定位系统用于检测磁驱动微机器人在管道中的姿态。我们将讨论亥姆霍兹线圈的形状以及O形环磁体周围的磁场，以获得磁驱动微机器人的最佳性能。实验结果表明，具有螺旋喷射运动的微机器人通过调整旋转磁场平面和磁场变化频率，在管道中具有灵活的运动能力。
