Bhosale Sunil, Ingale Pramod, Srivastava Sudhir, Marathe Nandan, Bhide Prajakta
Department of Orthopaedics, Seth GS Medical College and KEM Hospital, Mumbai, Maharashtra, India.
J Craniovertebr Junction Spine. 2019 Jan-Mar;10(1):10-13. doi: 10.4103/jcvjs.JCVJS_77_18.

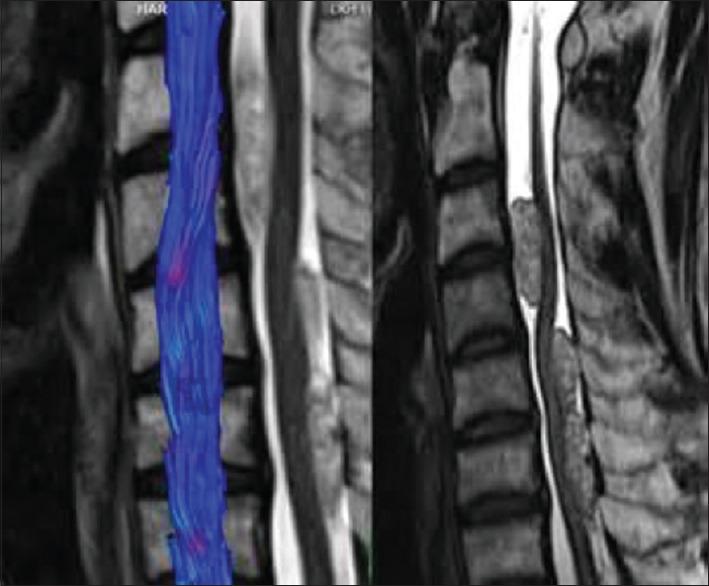

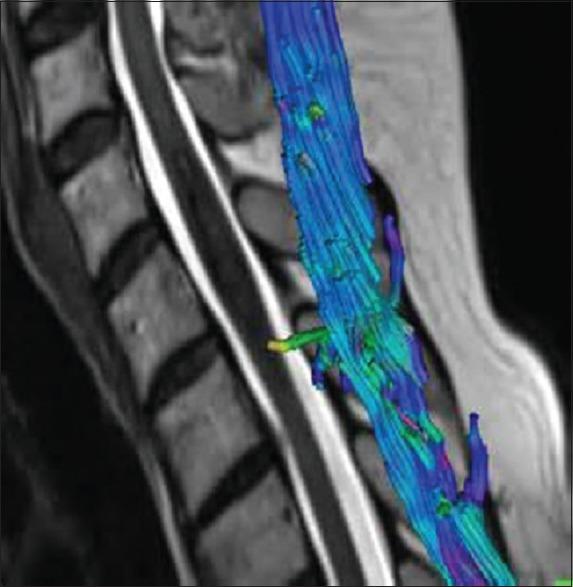

INTRODUCTION: Multiple investigation modalities have been invented for diagnosis and for planning management of degenerative cervical myelopathy, which include magnetic resonance imaging (MRI), computed tomography scan, and plain X-rays. Diffusion tensor imaging (DTI) of the spinal cord is a special variety of MRI where diffusion of water molecules across and along the tracts is mapped. The changes in anisotropy at the stenotic level can be a postoperative prognostic factor. The aim of this study was to establish postoperative prognostic predictive value of DTI in cases of degenerative cervical myelopathy. MATERIALS AND METHODS: The study included 30 indoor patients in a tertiary care hospital diagnosed with degenerative compressive cervical myelopathy based on both clinical and radiological parameters with complete clinical data including follow-up. All patients with medical neurological diseases, cases who underwent repeat surgery, cases who developed surgical site infection, and those patients who were lost to follow-up were excluded from the study. The patients underwent operative decompression through either anterior or posterior approach with or without fixation with titanium implants as per indication. All patients underwent pre- and postoperative DTI. The fractional anisotropy (FA) and apparent diffusion coefficient (ADC) were noted in both pre- and postoperative imaging. Epidemiological data such as age and sex were noted. Pre- and postoperative modified Japanese Orthopedic Association (mJOA) scores were calculated. RESULTS: There was a significant improvement in FA values postoperatively. Preoperatively, both FA and ADC values showed a significant correlation with preoperative Neurological status of the patient while postoperatively only FA values were found to be significantly correlated. The regression equations for determining postoperative mJOA score based on preoperative FA and ADC values revealed mJOA = 9.77 + 12.1 (FA), mJOA = 14.2 + 2408.4 (ADC), and mJOA = 9.54 + 11.2 (FA) +1575.5 (ADC). This means that postoperative mJOA score, i.e., postoperative clinical status improvement can be determined using DTI variables which are an objective preoperative data. However, relative strength of prediction for FA value is 66.7% and for ADC value is 28.7%. CONCLUSION: DTI tractography of the spinal cord will be a helpful objective prognostic factor for patients in whom surgery is planned. However, a study with larger subject size is required to increase the accuracy of determination of regression coefficient.
引言:为诊断和规划退行性颈椎病的治疗方案,已发明了多种检查方式,包括磁共振成像(MRI)、计算机断层扫描和普通X线检查。脊髓弥散张量成像(DTI)是MRI的一种特殊形式,可绘制水分子在神经束内及沿神经束扩散的情况。狭窄节段各向异性的变化可能是术后的一个预后因素。本研究的目的是确定DTI在退行性颈椎病病例中的术后预后预测价值。 材料与方法:本研究纳入了一家三级医院的30例住院患者,这些患者根据临床和影像学参数被诊断为退行性压迫性颈椎病,且拥有包括随访在内的完整临床资料。所有患有内科神经疾病的患者、接受再次手术的病例、发生手术部位感染的病例以及失访的患者均被排除在研究之外。根据适应证,患者通过前路或后路进行手术减压,可选择或不选择钛植入物固定。所有患者均在术前和术后进行DTI检查。记录术前和术后影像学检查中的分数各向异性(FA)和表观扩散系数(ADC)。记录年龄和性别等流行病学数据。计算术前和术后改良日本骨科协会(mJOA)评分。 结果:术后FA值有显著改善。术前,FA和ADC值均与患者术前神经状态显著相关,而术后仅发现FA值与之显著相关。根据术前FA和ADC值确定术后mJOA评分的回归方程显示,mJOA = 9.77 + 12.1(FA),mJOA = 14.2 + 2408.4(ADC),以及mJOA = 9.54 + 11.2(FA) +1575.5(ADC)。这意味着术后mJOA评分,即术后临床状态的改善,可以使用DTI变量来确定,而DTI变量是客观的术前数据。然而,FA值的预测相对强度为66.7%,ADC值为28.7%。 结论:脊髓DTI纤维束成像对于计划进行手术的患者将是一个有用的客观预后因素。然而,需要进行更大样本量的研究以提高回归系数测定的准确性。
