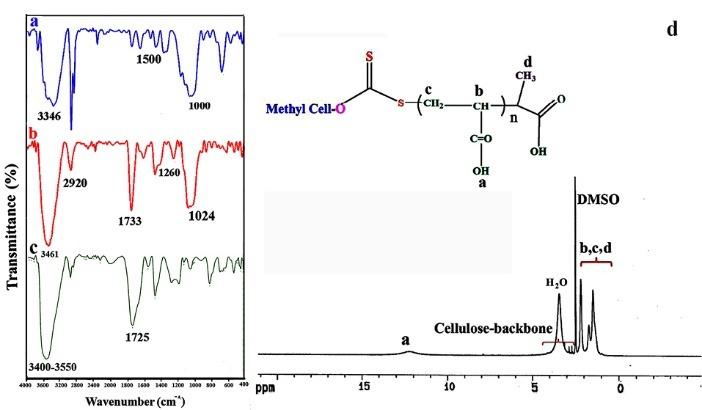

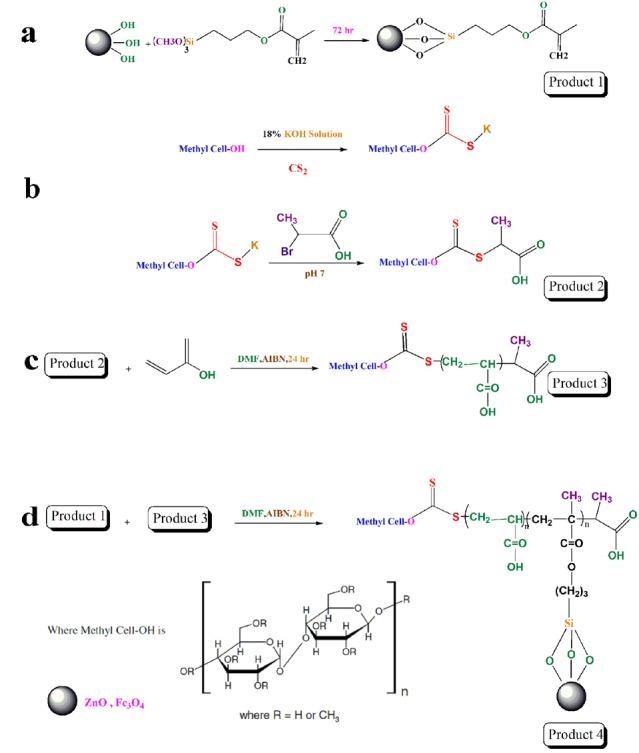

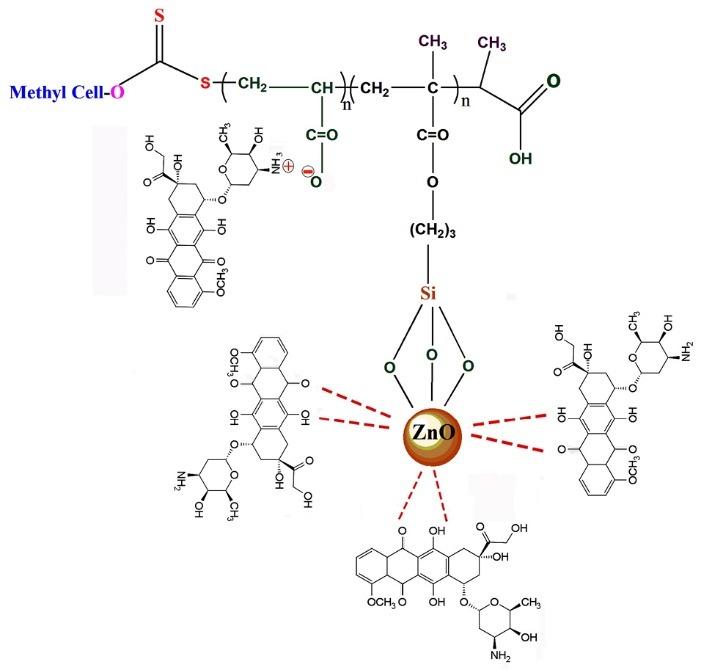

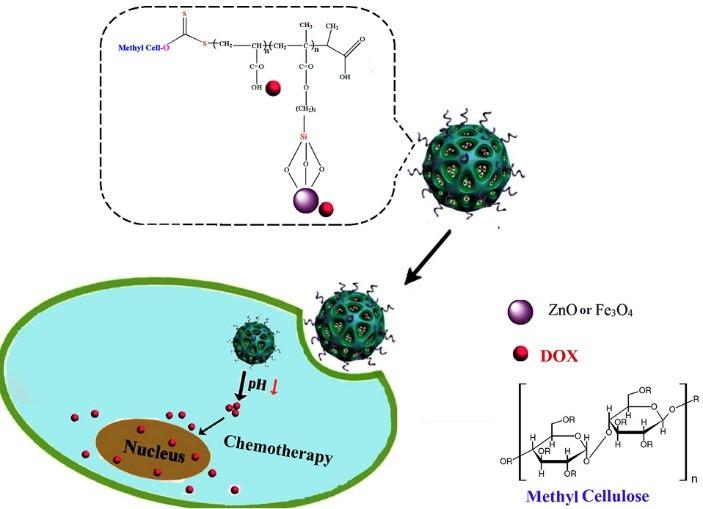

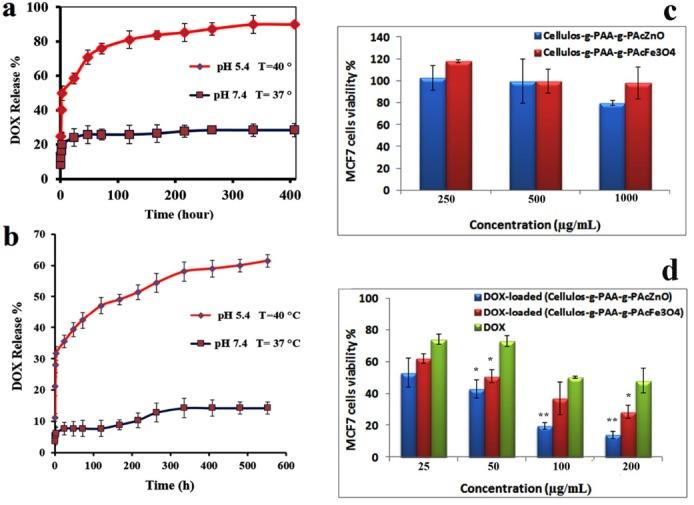

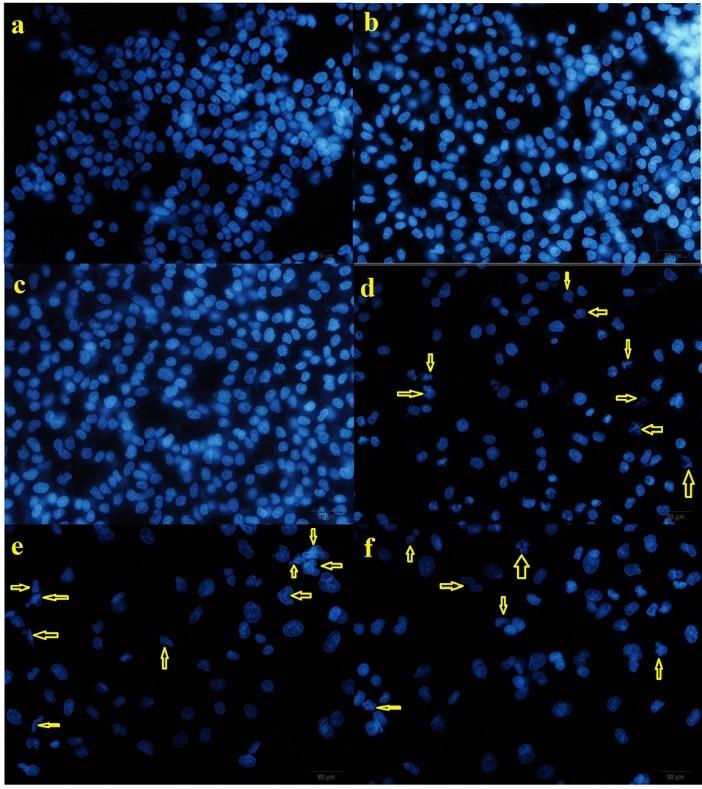

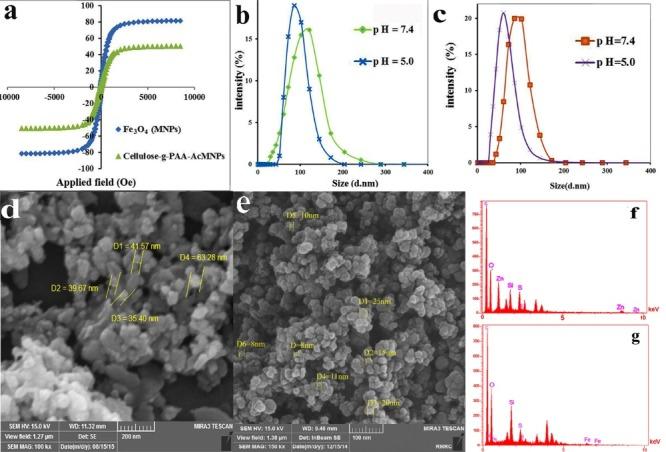

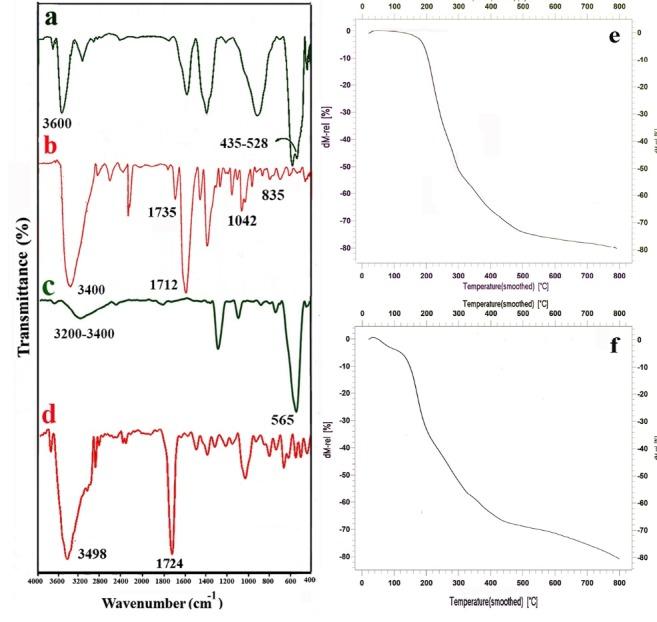

The objective of the current study was to compare the anticancer efficacy of doxorubicin-loaded cellulose based magnetic (FeO), zinc oxide (ZnO) nanoparticles on and free doxorubicin (DOX) on MCF-7 breast cancer cells. Novel pH-sensitive cellulose-graft poly acrylic acid based FeO (Cellulose-g-PAAg- PAcMNPs) and ZnO (Cellulose-g-PAA-g-PAcZnO) nanocomposites were synthesized via polymerization of acrylic acid and modified 3-(trimethoxysilyl) propyl methacrylate onto the cellulosic backbone via reversible addition-fragmentation chain transfer (RAFT) method. : Cellulose-g-PAA-g-PAcMNPs and Cellulose-g-PAA-g-PAcZnO nanocarriers with mean diameter of 15 and 38 nm were prepared successfully. DOX was loaded effectively to the ZnO and FeO nanocarriers via complexing and electrostatic force with great encapsulation efficiency of 99.07% and 98.92%, respectively. DOX-loaded nanocarriers showed obvious pHdependent tumor specific drug release pattern. MTT assay results indicated that IC50 of the DOX loaded Cellulose-g-PAA-g-PAcZnO, DOX loaded Cellulose-g-PAA-g-PAcMNPs and free DOX after 48 hours treatment with MCF7 cell lines were about 24.03, 49.27 and 99.76 μg mL, respectively. Therefore both DOX nanoformulations significantly increase antitumor ability compared to free DOX ( < 0.05). The results of MTT assay and DAPI staining revealed that DOX-loaded Cellulose-g-PAA-g-PAcZnO NPs show higher chemotherapy efficiency in MCF7 breast cancer cell line compare to the DOX-loaded Cellulose-g-PAA-g-PAcMNPs due to high interaction of ZnO with DOX. The formation of the complexes between the DOX and ZnO nanoparticles at the chelating sites of the quinone and the phenolic oxygen molecules of DOX, lead to more sustained drug release and enhanced chemotherapy effectiveness by increasing the intracellular concentration of DOX.
