Liu Huan, Han Genquan, Liu Yan, Hao Yue
State Key Discipline Laboratory of Wide Band Gap Semiconductor Technology, School of Microelectronics, Xidian University, Xi'an, 710071, China.
Nanoscale Res Lett. 2019 Jun 11;14(1):202. doi: 10.1186/s11671-019-3037-4.

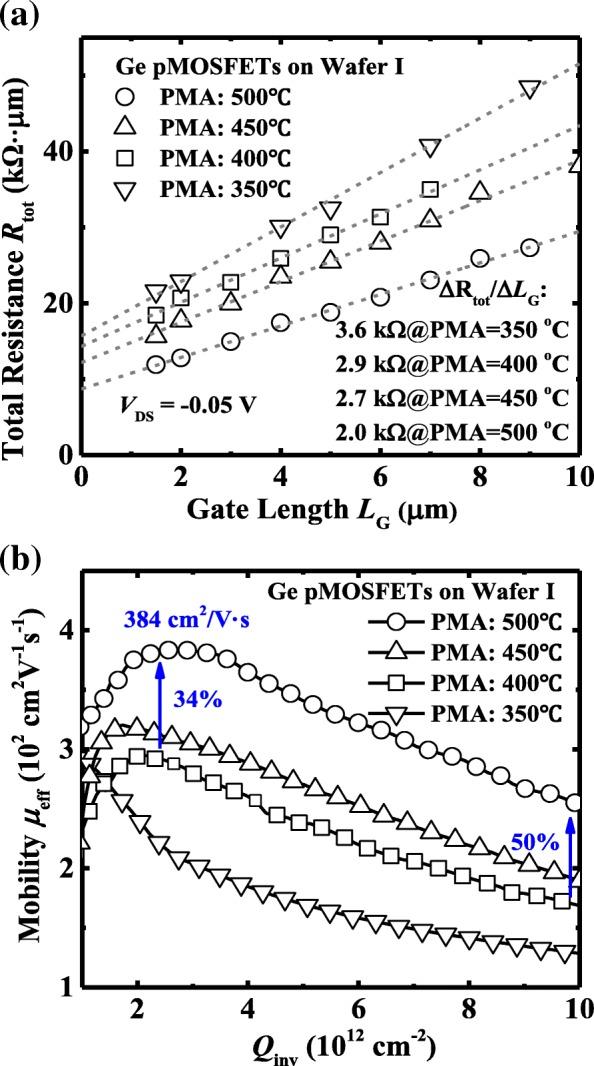

This paper investigates the impacts of post metal annealing (PMA) and post deposition annealing (PDA) on the electrical performance of Ge p-type metal-oxide-semiconductor field-effect transistors (pMOSFETs) with ZrO dielectric. For the transistors without PDA, on-state current (I), subthreshold swing (SS), and capacitance equivalent thickness (CET) characteristics are improved with PMA temperature increasing from 350 to 500 °C. Crystallization of ZrO dielectric at the higher PMA temperature contributes to the increase of the permittivity of ZrO and the decrease of the density of interface states (D), resulting in a reduced CET and high effective hole mobility (μ). It is demonstrated that Ge pMOSFETs with a PDA treatment at 400 °C have a lower CET and a steeper SS but a lower μ compared to devices without PDA.
本文研究了金属后退火(PMA)和沉积后退火(PDA)对具有ZrO电介质的锗p型金属氧化物半导体场效应晶体管(pMOSFET)电学性能的影响。对于未进行PDA处理的晶体管,随着PMA温度从350℃升高到500℃,导通电流(I)、亚阈值摆幅(SS)和电容等效厚度(CET)特性得到改善。较高PMA温度下ZrO电介质的结晶有助于ZrO介电常数的增加和界面态密度(D)的降低,从而导致CET降低和有效空穴迁移率(μ)提高。结果表明,与未进行PDA处理的器件相比,在400℃进行PDA处理的锗pMOSFET具有更低的CET和更陡的SS,但μ更低。
