Jitpun Ekkapot, Wattanasen Yodkhwan, Tirakotai Wuttipong
Department of Neurosurgery, Prasat Neurological Institute, Bangkok, Thailand.
Department of Neuroradiology, Prasat Neurological Institute, Bangkok, Thailand.
Asian J Neurosurg. 2019 Nov 25;14(4):1082-1088. doi: 10.4103/ajns.AJNS_162_19. eCollection 2019 Oct-Dec.
Carotid endarterectomy is a major treatment modality for high-grade carotid stenosis. Preoperative identification of the level of the carotid bifurcation and its branching pattern is important in planning for adequate exposure and cross-clamping to achieve hemostasis during the procedure. Most of the previous studies on carotid arteries were performed in cadavers.
We studied levels of carotid bifurcation compared relatively with the level of the vertebral body and ipsilateral angle of the mandible and its branching pattern using computed tomographic angiogram (CTA) carotid with multiplanar reconstruction and three-dimensional imaging in 100 CTA studies.

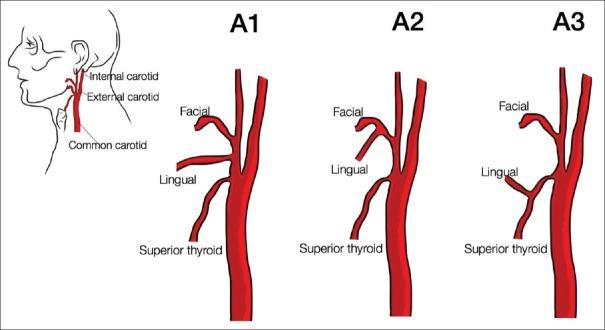

Most of the carotid bifurcations were located at the level of C3-C4 vertebral body and 12% were considered to be high bifurcation. Carotid bifurcations were located below the angle of the mandible in 83.5%. The superior thyroid, facial, and lingual arteries arose from separate branches of external carotid arteries in 67.7% of samples. Facial arteries arose in common trunk with lingual arteries in 29.2%, much more common than previous cadaveric studies. The lingual arteries arose with superior thyroid arteries in 2%, while occipital arteries had high variations in their branching patterns.
CTA is an effective and reliable modality for preoperative evaluation of the carotid system in patients undergoing carotid endarterectomy and other carotid procedures. Higher percentage of high carotid bifurcation was found in our study, concordant with other Asian cadaveric studies. We assumed that carotid bifurcation of Asian tends to be located slightly higher than those of the Caucasian population.
颈动脉内膜切除术是治疗重度颈动脉狭窄的主要方式。术前确定颈动脉分叉的位置及其分支模式对于规划充分暴露和交叉钳夹以在手术过程中实现止血非常重要。以往大多数关于颈动脉的研究是在尸体上进行的。
我们在100例计算机断层血管造影(CTA)研究中,使用多平面重建和三维成像的CTA颈动脉,将颈动脉分叉的位置与椎体水平和同侧下颌角进行相对比较,并研究其分支模式。
大多数颈动脉分叉位于C3 - C4椎体水平,12%被认为是高位分叉。83.5%的颈动脉分叉位于下颌角以下。67.7%的样本中,甲状腺上动脉、面动脉和舌动脉分别起自颈外动脉的不同分支。29.2%的样本中,面动脉与舌动脉共干发出,比以往尸体研究更为常见。2%的样本中,舌动脉与甲状腺上动脉共干发出,而枕动脉的分支模式变异较大。
CTA是对接受颈动脉内膜切除术及其他颈动脉手术患者进行颈动脉系统术前评估的有效且可靠的方法。我们的研究中发现高位颈动脉分叉的比例较高,与其他亚洲尸体研究结果一致。我们推测亚洲人的颈动脉分叉位置往往比白种人略高。
