Department of Chemistry, Poznan University of Life Sciences, Wojska Polskiego 75, 60-625 Poznan, Poland.
Department of Food Biochemistry and Analysis, Poznan University of Life Sciences, Mazowiecka 48, 60-623 Poznan, Poland.
Molecules. 2020 Mar 28;25(7):1544. doi: 10.3390/molecules25071544.

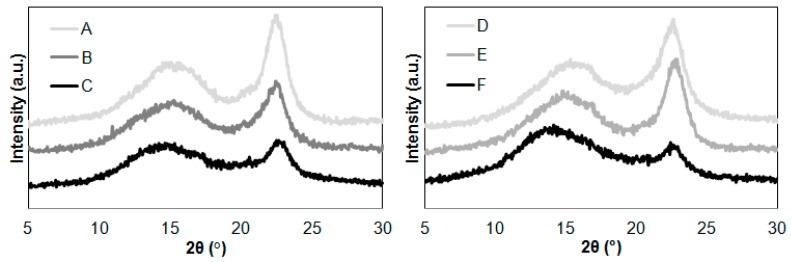

Cellulose nanocrystals were prepared using ionic liquids (ILs), 1-ethyl-3-methylimidazolium chloride [EMIM][Cl] and 1-propyl-3-methylimidazolium chloride [PMIM][Cl], from microcrystalline cellulose. The resultant samples were characterized by X-ray diffraction (XRD), Fourier transform infrared spectroscopy (FTIR), dynamic light scattering (DLS), scanning electron microscopy (SEM), and transmission electron microscopy (TEM). The XRD results showed that nanocellulose obtained by treatment with both ILs preserved basic cellulose I structure, but crystallinity index of samples (except for Sigmacell treated with [EMIM][Cl]) was lower in comparison to the starting microcrystalline cellulose. The DLS results indicated noticeably smaller particle sizes of prepared cellulose for material treated with [PMIM][Cl] compared to cellulose samples hydrolyzed with [EMIM][Cl], which were prone to agglomeration. The obtained nanocellulose had a rod-like structure that was confirmed by electron microscopy analyses. Moreover, the results described in this paper indicate that cation type of ILs influences particle size and morphology of cellulose after treatment with ionic liquids.
采用离子液体(ILs),1-乙基-3-甲基咪唑氯化物[EMIM][Cl]和1-丙基-3-甲基咪唑氯化物[PMIM][Cl],从微晶纤维素中制备纤维素纳米晶。通过 X 射线衍射(XRD)、傅里叶变换红外光谱(FTIR)、动态光散射(DLS)、扫描电子显微镜(SEM)和透射电子显微镜(TEM)对所得样品进行了表征。XRD 结果表明,用两种 IL 处理得到的纳米纤维素保留了基本的纤维素 I 结构,但与起始微晶纤维素相比,样品的结晶度指数(除 Sigmacell 用[EMIM][Cl]处理的样品外)较低。DLS 结果表明,与用[EMIM][Cl]水解的纤维素样品相比,用[PMIM][Cl]处理的制备纤维素的颗粒尺寸明显更小,容易团聚。通过电子显微镜分析证实,所得到的纳米纤维素具有棒状结构。此外,本文的结果表明,离子液体处理后纤维素的阳离子类型影响其颗粒尺寸和形态。
