Fatyeyeva Kateryna, Rogalsky Sergiy, Makhno Stanislav, Tarasyuk Oksana, Soto Puente Jorge Arturo, Marais Stéphane
Polymères Biopolymères Surfaces (PBS), Normandie University, UNIROUEN, INSA ROUEN, CNRS, 76000 Rouen, France.
Institute of Bioorganic Chemistry and Petrochemistry, National Academy of Science of Ukraine, 50, Kharkivske Schose, 02160 Kyiv, Ukraine.
Membranes (Basel). 2020 Apr 28;10(5):82. doi: 10.3390/membranes10050082.

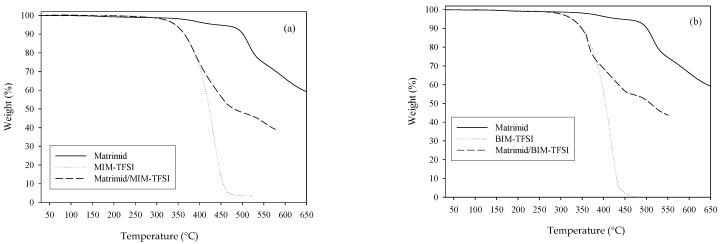

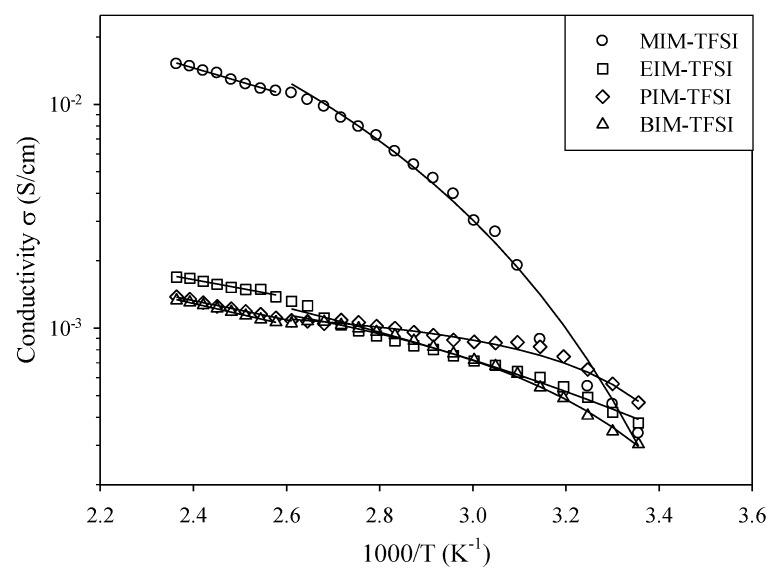

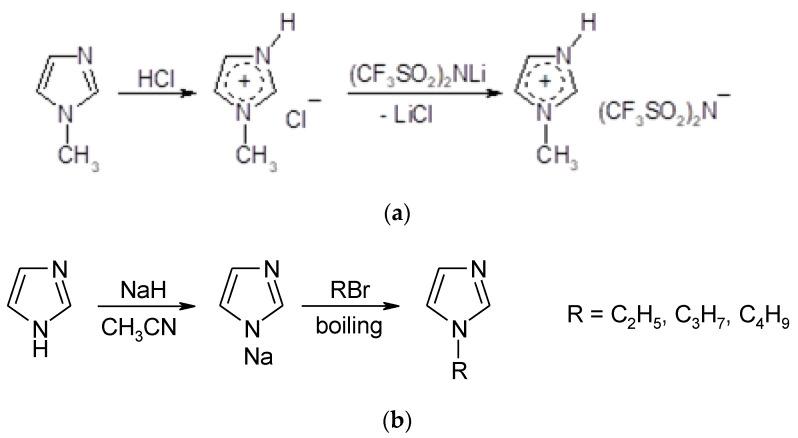

Four water insoluble room-temperature protic ionic liquids (PILs) based on the -alkylimidazolium cation with the alkyl chain length from 1 to 4 and bis(trifluoromethylsulfonyl)imide anion were synthesized and their chemical structure was confirmed by the H NMR and F NMR analysis. PILs were revealed to be thermally stable up to 360 and 400 °C. At the same time, the proton conductivity of PILs was found to be dependent mostly on the temperature and, to a less extent, on the type of the cation, i.e., the increase of the conductivity from 3 × 10 S/cm at 25 °C to 2 × 10 S/cm at 150 °C was observed. The water vapour sorption capacity of PILs was evaluated as a function of relative humidity and the influence of the alkyl chain length on the phase behaviour in the PIL-water system was discussed. The composite polyimide/PILs membranes were prepared by the PIL immobilization in the porous polymer (Matrimid 5218) film. The composite membranes showed a high level of proton conductivity (10 S/cm) at elevated temperatures (up to 160 °C). The obtained results reveal that the elaborated composite polyimide/PIL membranes are promising candidates for the application as proton exchange membrane at middle and high temperatures.
合成了四种基于烷基链长度为1至4的烷基咪唑阳离子和双(三氟甲基磺酰)亚胺阴离子的水不溶性室温质子离子液体(PIL),并通过1H NMR和19F NMR分析确认了它们的化学结构。结果表明,PIL在高达360和400°C的温度下具有热稳定性。同时,发现PIL的质子传导率主要取决于温度,在较小程度上取决于阳离子的类型,即在25°C时电导率从3×10-6 S/cm增加到150°C时的2×10-4 S/cm。评估了PIL的水蒸气吸附容量与相对湿度的函数关系,并讨论了烷基链长度对PIL-水体系相行为的影响。通过将PIL固定在多孔聚合物(Matrimid 5218)薄膜中来制备复合聚酰亚胺/PIL膜。复合膜在高温(高达160°C)下显示出高水平的质子传导率(10-3 S/cm)。所得结果表明,所制备的复合聚酰亚胺/PIL膜有望作为中高温质子交换膜应用。
