A Practical Approach to Condition Assessment of Asphalt-Covered Concrete Bridge Decks on Korean Expressways by Dielectric Constant Measurements Using Air-Coupled GPR.

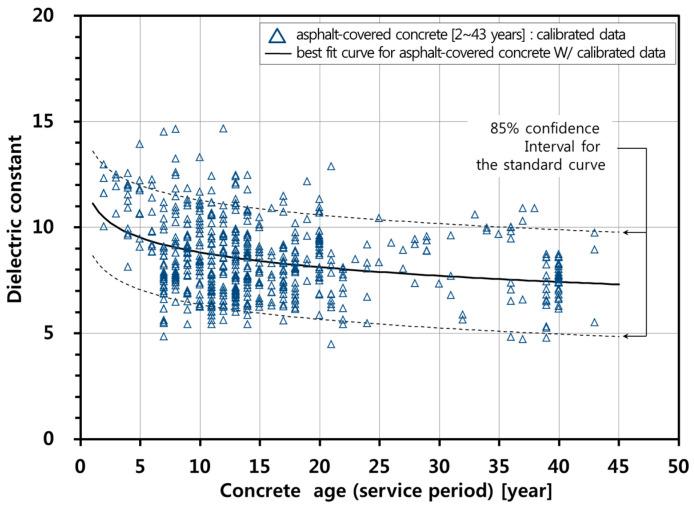

The main objectives of this study are to investigate the variations of the dielectric constant of concrete on Korean expressways by using a 1 GHz air-coupled Ground Penetrating Radar (GPR) system and to develop a practical approach to the condition assessment of concrete bridge decks with asphalt overlay on Korean expressways by dielectric constant measurements. A total of 684 GPR investigations of 601 actual concrete bridge decks, which are in service between 2 and 43 years, were carried out during the period between 1999 and 2013. Statistical analysis revealed that the dielectric constant of asphalt-covered concrete bridge decks reduced with service age and this trend continued until service age of over 40 years. As a result, this study provides a practical dielectric constant curve that could be used for condition evaluation of top concrete in asphalt-covered bridge decks with consideration of concrete age. Based on regression analyses of the GPR field survey data and experiences through the field survey, a double cut-off dielectric constant criterion was proposed for condition assessment of asphalt-covered concrete bridge decks on Korean expressways. In addition, a GPR field survey was performed at an actual bridge on the Yeongdong expressway in Korea to test the proposed GPR signal interpretation method. The field survey results provide fundamental data to better understand the variation of the dielectric constant of concrete in actual bridges with asphalt overlay and to develop a practical approach to condition assessment of asphalt-covered concrete bridge decks on Korean expressways by dielectric constant measurements using air-coupled GPR.
