Zhang Xin, Ni Wei, Feng Rui, Li Yanjiang, Lei Yu, Xia Ding, Gao Peng, Yang Shaoxuan, Gu Yuxiang
Department of Neurosurgery, Huashan Hospital, Fudan University, Shanghai 200040, China.
Department of Radiology, Huashan Hospital, Fudan University, Shanghai 200040, China.
Oxid Med Cell Longev. 2020 Aug 11;2020:8561609. doi: 10.1155/2020/8561609. eCollection 2020.
Hyperperfusion syndrome (HPS) after bypass surgery for moyamoya disease (MMD) mainly results from redistribution of blood flow, which leads to poor outcomes, while effective methods to predict HPS are still lacking. Indocyanine green (ICG) videoangiography can assess regional cerebral blood flow changes semiquantitatively with the application of FLOW 800 software. The purpose of this study was to investigate whether the intraoperative evaluation of local hemodynamic changes around anastomotic sites using FLOW 800 videoangiography mapping can predict the incidence of HPS and clinical outcomes.

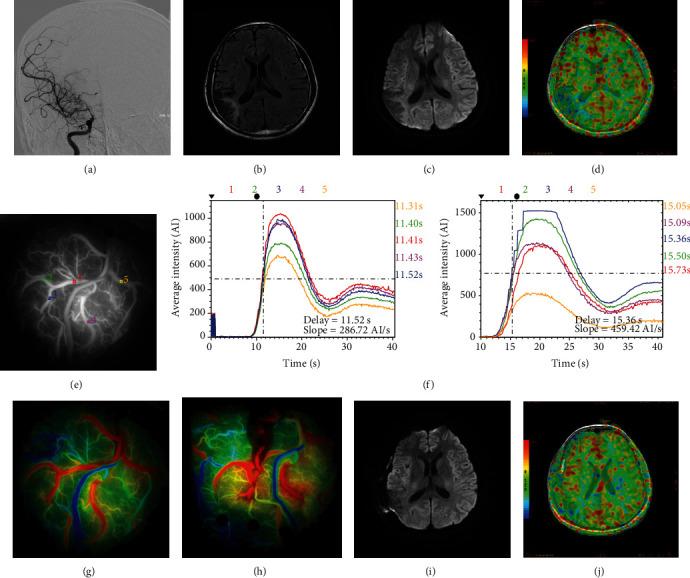

Of the patients who were diagnosed with MMD in our hospital between August 2018 and December 2019, who underwent superficial temporal artery-middle cerebral artery bypass surgeries, we investigated 65 hemispheres (in 62 patients) in which intraoperative ICG analysis was performed using FLOW 800 (Zeiss Meditec, Oberkochen, Germany) to evaluate the local cerebral hemodynamics before and after anastomosis. Regions of interest were set at more than 2 points on the brain surface according to the location and situation of recipient arteries in the surgical area. Peak cerebral blood volume (CBV), regional cerebral blood flow (CBF), and time to peak (TTP) were calculated from the selected points. As the data were available intraoperatively, anastomoses were performed in a suitable area. According to the occurrence of HPS, patients were divided into the asymptomatic and symptomatic groups, from which hemodynamic parameters were compared. Furthermore, ROC analysis was performed to determine the diagnostic accuracy of change rates in CBV, CBF, and TTP (i.e., CBV, CBF, and TTP) for predicting HPS.
Data from the 62 patients were analyzed, and all patients were closely assessed during hospitalization after the procedures. The values of CBV and CBF were significantly higher in the symptomatic group ( < 0.01), while TTP is slightly lower in the symptomatic group with no statistical differences ( = 0.72). Hemodynamic parameters including CBV and CBF, calculated by FLOW 800, had high sensitivity and specificity according to the ROC curve (CBV: AUC = 0.743, 95% CI, 0.605-0.881, = 0.002; CBF: AUC = 0.852, 95% CI, 0.750-0.954, < 0.01), which could be used as predictors for HPS.
Intraoperative ICG-FLOW 800 videoangiography mapping is a safe method which can reflect hemodynamic characteristics in the surgical area for MMD, the findings of which correlate with the occurrence of HPS. Parameters including CBV and CBF are proven to be efficient in the prediction of HPS.
烟雾病(MMD)搭桥手术后的高灌注综合征(HPS)主要由血流重新分布引起,导致预后不良,而目前仍缺乏预测HPS的有效方法。吲哚菁绿(ICG)血管造影术可通过FLOW 800软件的应用半定量评估局部脑血流变化。本研究的目的是探讨使用FLOW 800血管造影术图谱对吻合口周围局部血流动力学变化进行术中评估是否能够预测HPS的发生率及临床结局。
在2018年8月至2019年12月期间于我院被诊断为MMD且接受颞浅动脉-大脑中动脉搭桥手术的患者中,我们对62例患者的65个半球进行了研究,术中使用FLOW 800(德国奥伯科亨蔡司医疗技术公司)进行ICG分析,以评估吻合前后的局部脑血流动力学。根据手术区域受血动脉的位置和情况,在脑表面2个以上的点设置感兴趣区。从选定的点计算脑血容量峰值(CBV)、局部脑血流量(CBF)和达峰时间(TTP)。由于术中可获得数据,在合适的区域进行吻合。根据HPS的发生情况,将患者分为无症状组和有症状组,并比较两组的血流动力学参数。此外,进行ROC分析以确定CBV、CBF和TTP的变化率(即ΔCBV、ΔCBF和ΔTTP)对预测HPS的诊断准确性。
分析了62例患者的数据,所有患者在术后住院期间均接受密切评估。有症状组的CBV和CBF值显著更高(<0.01),而有症状组的TTP略低,但无统计学差异(=0.72)。根据ROC曲线,通过FLOW 800计算的包括CBV和CBF在内的血流动力学参数具有较高的敏感性和特异性(CBV:AUC = 0.743,95%CI,0.605 - 0.881,=0.002;CBF:AUC = 0.852,95%CI,0.750 - 0.954,<0.01),可作为HPS的预测指标。
术中ICG - FLOW 800血管造影术图谱是一种安全的方法,可反映MMD手术区域的血流动力学特征,其结果与HPS的发生相关。已证实包括CBV和CBF在内的参数在预测HPS方面有效。
