Sarrigiannidis Stylianos O, Moussa Hanan, Dobre Oana, Dalby Matthew J, Tamimi Faleh, Salmeron-Sanchez Manuel
Centre for the Cellular Microenvironment, University of Glasgow, Rankine Building, 79-85 Oakfield Ave, Glasgow G12 8LT, United Kingdom.
Faculty of Dentistry, McGill University, Strathcona Building, 3640 University Street, Montreal, Quebec H3A 2B2, Canada.
ACS Appl Bio Mater. 2020 Aug 17;3(8):5056-5066. doi: 10.1021/acsabm.0c00555. Epub 2020 Jul 6.

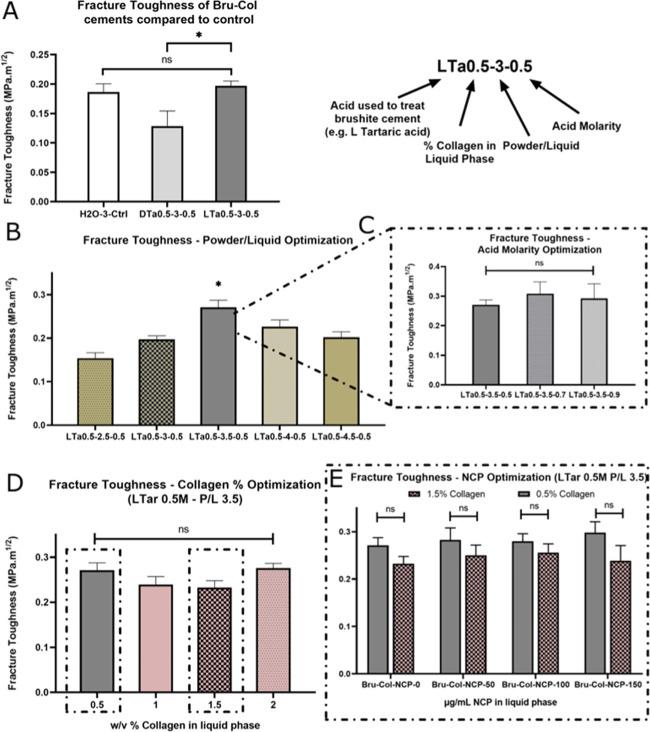

Brushite cements are promising bone regeneration materials with limited biological and mechanical properties. Here, we engineer a mechanically improved brushite-collagen type I cement with enhanced biological properties by use of chiral chemistry; d- and l-tartaric acid were used to limit crystal growth and increase the mechanical properties of brushite-collagen cements. The impact of the chiral molecules on the cements was examined with Fourier-transform infrared spectroscopy (FTIR), X-ray diffraction (XRD), and scanning electron microscopy (SEM). A 3-point bend test was utilized to study the fracture toughness, and cell attachment and morphology studies were carried out to demonstrate biocompatibility. XRD and SEM analyses showed that l-, but not d-tartaric acid, significantly restrained brushite crystal growth by binding to the {010} plane of the mineral and increased brushite crystal packing and the collagen interaction area. l-Tartaric acid significantly improved fracture toughness compared to traditional brushite by 30%. Collagen significantly enhanced cell morphology and focal adhesion expression on l-tartaric acid-treated brushite cements.
透钙磷石水泥是一种很有前景的骨再生材料,但其生物学和力学性能有限。在此,我们通过手性化学手段设计了一种机械性能得到改善、生物学性能增强的透钙磷石-Ⅰ型胶原水泥;使用d-和l-酒石酸来限制晶体生长并提高透钙磷石-胶原水泥的机械性能。采用傅里叶变换红外光谱(FTIR)、X射线衍射(XRD)和扫描电子显微镜(SEM)研究了手性分子对水泥的影响。利用三点弯曲试验研究断裂韧性,并进行细胞附着和形态学研究以证明生物相容性。XRD和SEM分析表明,l-酒石酸而非d-酒石酸通过与矿物的{010}面结合,显著抑制了透钙磷石晶体生长,并增加了透钙磷石晶体堆积和胶原相互作用面积。与传统透钙磷石相比,l-酒石酸显著提高了30%的断裂韧性。胶原显著改善了l-酒石酸处理的透钙磷石水泥上的细胞形态和粘着斑表达。
