The effect of a knee brace in dynamic motion-An instrumented gait analysis.

BACKGROUND

Osteoarthritis (OA) is a common problem in the older population. To reduce pain and stress in the affected knee joint compartment, a functional knee brace is often prescribed by physicians to protect it from high loads.

OBJECTIVES

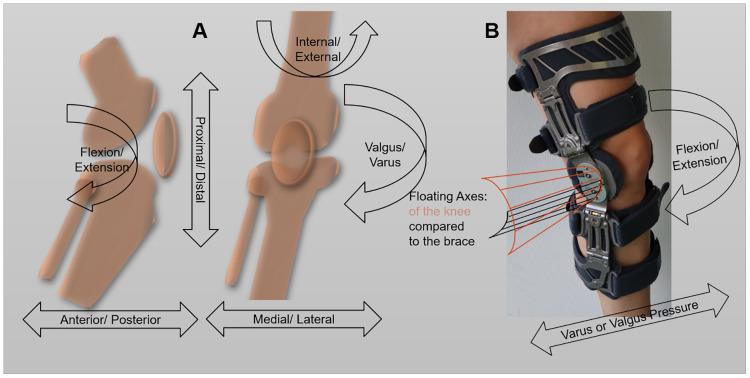

An instrumented gait analysis should evaluate how the 4-point knee orthosis for varus or valgus load relief (M.4s OA) changes the kinematics of the knee, especially in the frontal plane.

METHODS

17 healthy participants took part and were analyzed with an inertial sensor system (MyoMotion) giving continuous, objective information on the anatomical angles. The measurements were made both without wearing a knee brace and with the brace in different settings.

RESULTS

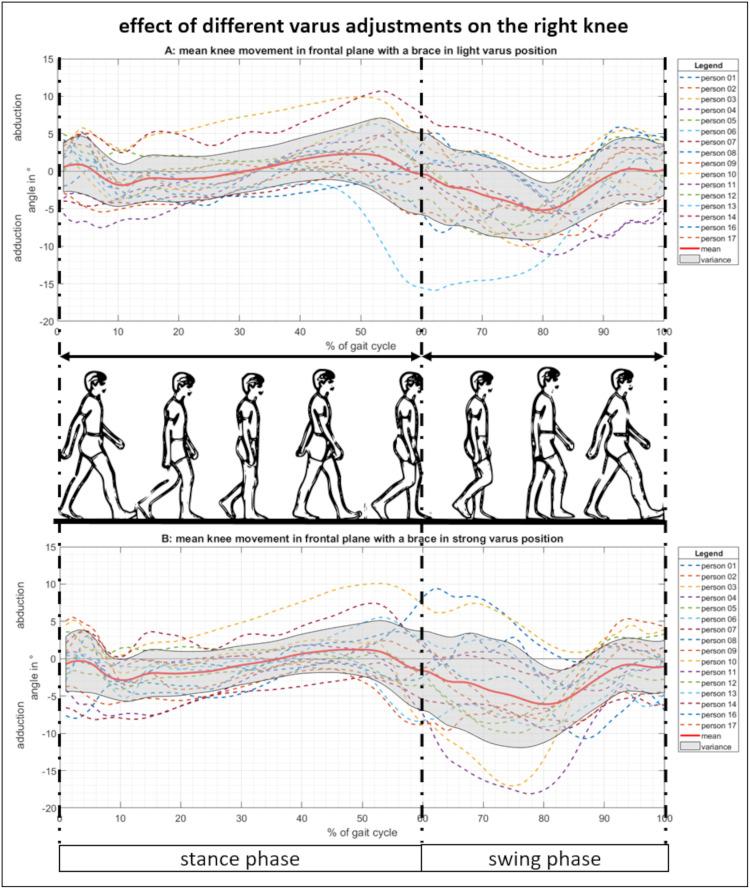

The results show a significant reduction in the maximum knee abduction and raised knee adduction. The knee brace, with a strong adjustment in varus or valgus orientation, caused a shift of maximum ab-/adduction in the proposed direction in 69% and 75% of the dynamic tests, respectively. The knee motion in the frontal plane shows individual movement patterns.

CONCLUSION

The use of the brace leads to significant changes in the knee's movement. Patient-specific movement patterns may explain different effects of functional knee braces on individual persons. Inertial sensors have been shown to be a low-cost, easy-to-use option for individual movement analysis and further personalized therapy.
