Pascariu Petronela, Olaru Niculae, Rotaru Aurelian, Airinei Anton
"Petru Poni" Institute of Macromolecular Chemistry, 41A Grigore Ghica Voda Alley, 700487 Iasi, Romania.
Faculty of Electrical Engineering and Computer Science & MANSiD Research Center, Stefan cel Mare University, 13 Str. Universitatii, 720229 Suceava, Romania.
Nanomaterials (Basel). 2020 Sep 18;10(9):1873. doi: 10.3390/nano10091873.

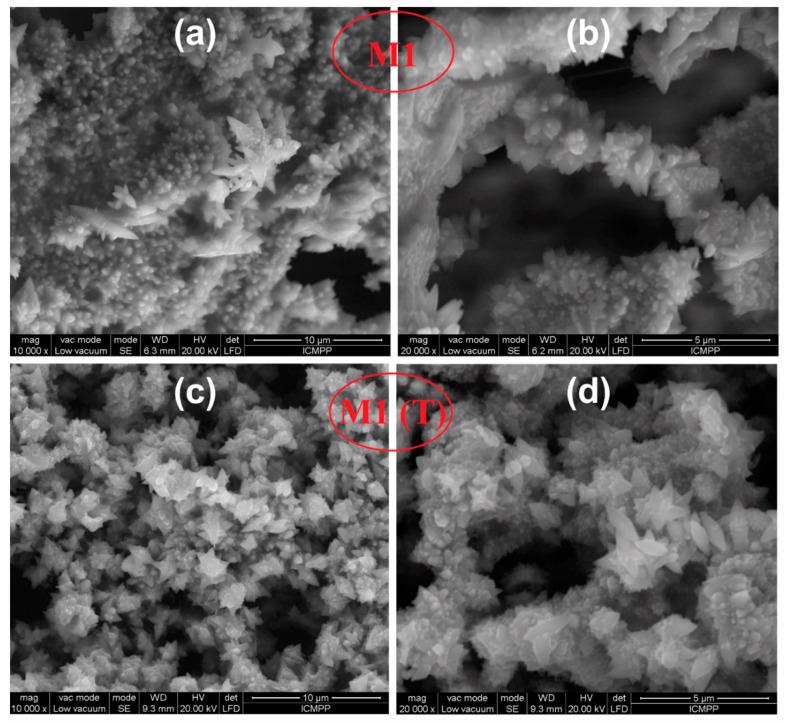

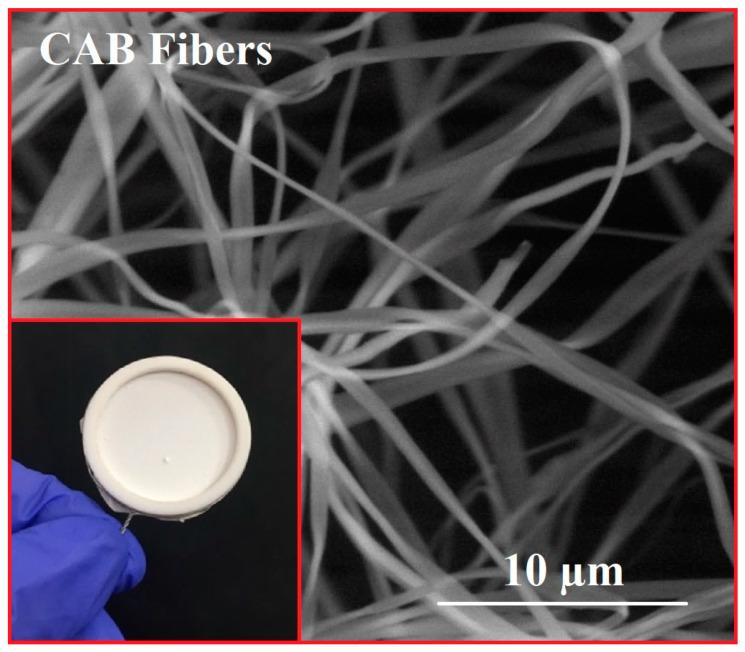

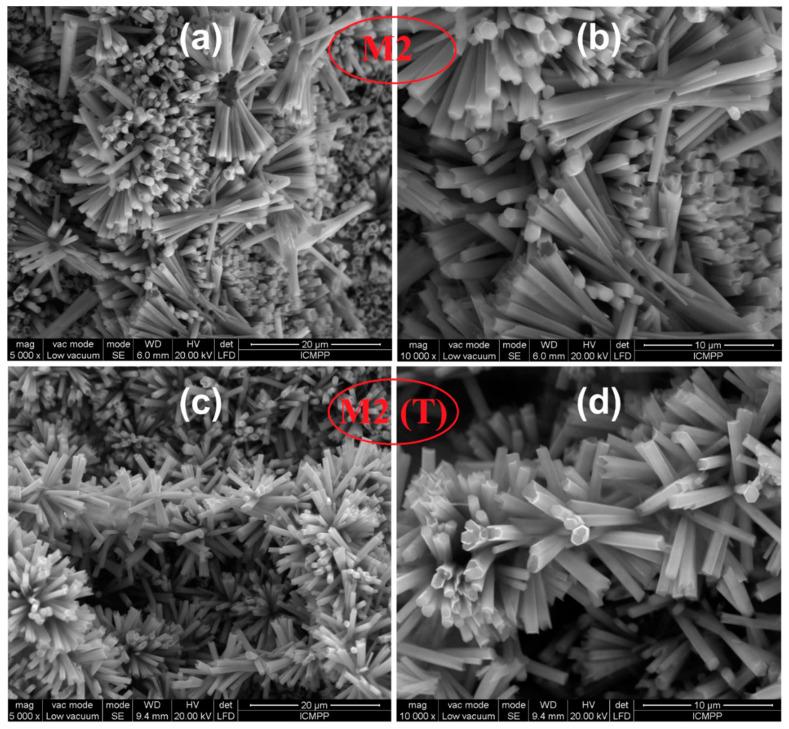

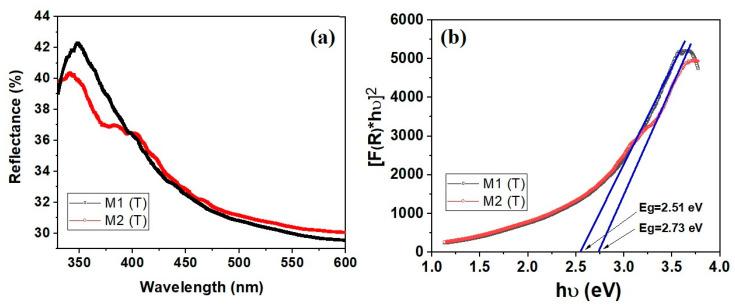

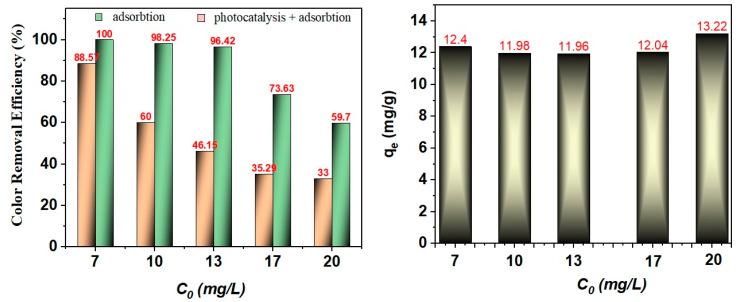

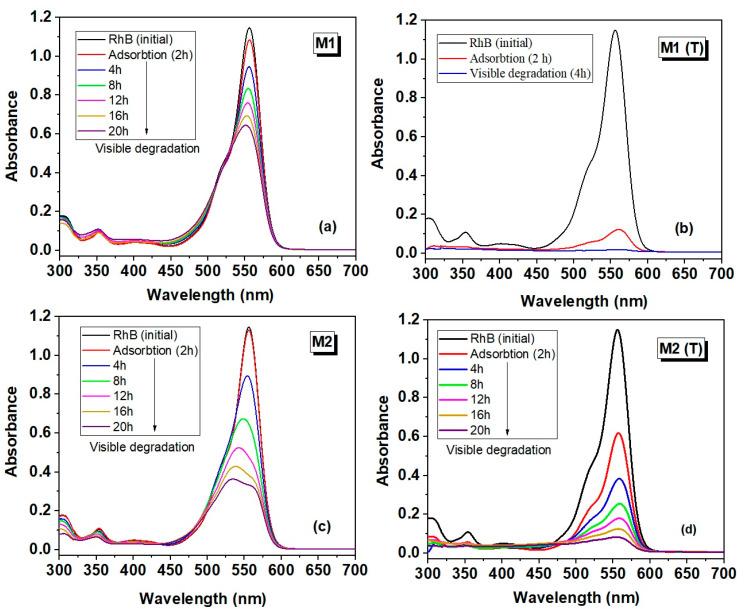

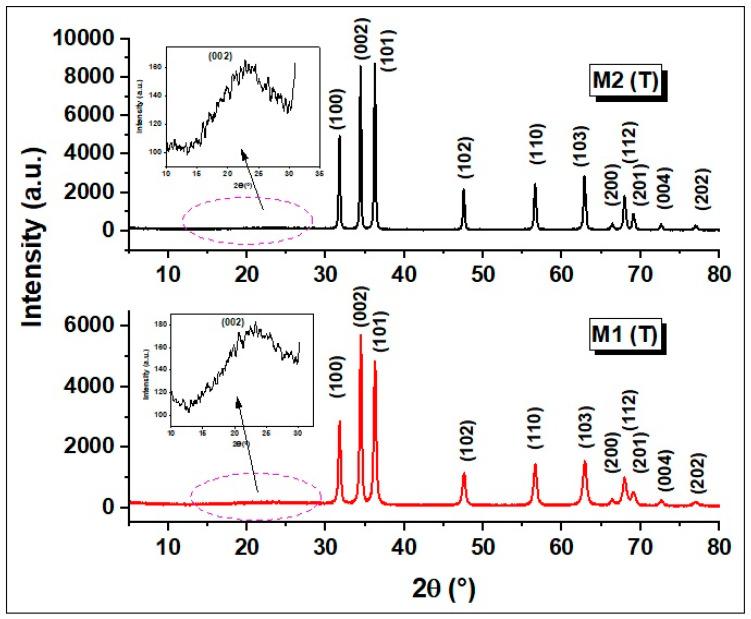

A new type of material based on carbon/ZnO nanostructures that possesses both adsorption and photocatalytic properties was obtained in three stages: cellulose acetate butyrate (CAB) microfiber mats prepared by the electrospinning method, ZnO nanostructures growth by dipping and hydrothermal methods, and finally thermal calcination at 600 °C in N for 30 min. X-ray diffraction (XRD) confirmed the structural characteristics. It was found that ZnO possesses a hexagonal wurtzite crystalline structure. The ZnO nanocrystals with star-like and nanorod shapes were evidenced by scanning electron microscopy (SEM) measurements. A significant decrease in value was found for carbon/ZnO hybrid materials (2.51 eV) as compared to ZnO nanostructures (3.21 eV). The photocatalytic activity was evaluated by studying the degradation of three dyes, Methylene Blue (MB), Rhodamine B (RhB) and Congo Red (CR) under visible-light irradiation. Therefore, the maximum color removal efficiency (both adsorption and photocatalytic processes) was: 97.97% of MB ( = 10 mg/L), 98.34% of RhB ( = 5 mg/L), and 91.93% of CR ( = 10 mg/L). Moreover, the value of the rate constant () was found to be 0.29 × 10 min. The novelty of this study relies on obtaining new photocatalysts based on carbon/ZnO using cheap and accessible raw materials, and low-cost preparation techniques.
通过三个阶段制备了一种新型的基于碳/氧化锌纳米结构的兼具吸附和光催化性能的材料:采用静电纺丝法制备醋酸丁酸纤维素(CAB)微纤维垫,通过浸渍法和水热法生长氧化锌纳米结构,最后在氮气中600℃热煅烧30分钟。X射线衍射(XRD)证实了其结构特征。发现氧化锌具有六方纤锌矿晶体结构。扫描电子显微镜(SEM)测量证明了存在星形和纳米棒形状的氧化锌纳米晶体。与氧化锌纳米结构(3.21eV)相比发现碳/氧化锌杂化材料(2.51eV)的 值显著降低。通过研究三种染料,即亚甲基蓝(MB)、罗丹明B(RhB)和刚果红(CR)在可见光照射下的降解来评估光催化活性。因此,最大脱色效率(吸附和光催化过程两者)为:MB( =10mg/L)的97.97%、RhB( =5mg/L)的98.34%和CR( =10mg/L)的91.93%。此外,发现速率常数()的值为0.29×10 分钟。本研究的新颖之处在于使用廉价且易得的原材料以及低成本的制备技术来获得基于碳/氧化锌的新型光催化剂。
