• 文献检索
  • 文档翻译
  • 深度研究
  • 学术资讯
  • Suppr Zotero 插件Zotero 插件
  • 邀请有礼
  • 套餐&价格
  • 历史记录
应用&插件
Suppr Zotero 插件Zotero 插件浏览器插件Mac 客户端Windows 客户端微信小程序
定价
高级版会员购买积分包购买API积分包
服务
文献检索文档翻译深度研究API 文档MCP 服务
关于我们
关于 Suppr公司介绍联系我们用户协议隐私条款
关注我们

Suppr 超能文献

核心技术专利:CN118964589B侵权必究
粤ICP备2023148730 号-1Suppr @ 2026

文献检索

告别复杂PubMed语法,用中文像聊天一样搜索,搜遍4000万医学文献。AI智能推荐,让科研检索更轻松。

立即免费搜索

文件翻译

保留排版,准确专业,支持PDF/Word/PPT等文件格式,支持 12+语言互译。

免费翻译文档

深度研究

AI帮你快速写综述,25分钟生成高质量综述,智能提取关键信息,辅助科研写作。

立即免费体验

稀土Y和Al-Ti-B中间合金变质6063铝合金的热变形行为及组织演变

Hot Deformation Behavior and Microstructure Evolution of 6063 Aluminum Alloy Modified by Rare Earth Y and Al-Ti-B Master Alloy.

作者信息

Ding Wanwu, Liu Xiaoxiong, Zhao Xiaoyan, Chen Taili, Zhang Haixia, Cheng Yan, Shi Huaixin

机构信息

School of Materials Science and Engineering, Lanzhou University of Technology, Lanzhou 730050, China.

State Key Laboratory of Advanced Processing and Recycling of Non-ferrous Metals, Lanzhou University of Technology, Lanzhou 730050, China.

出版信息

Materials (Basel). 2020 Sep 23;13(19):4244. doi: 10.3390/ma13194244.

DOI:10.3390/ma13194244
PMID:32977667
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC7579208/
Abstract

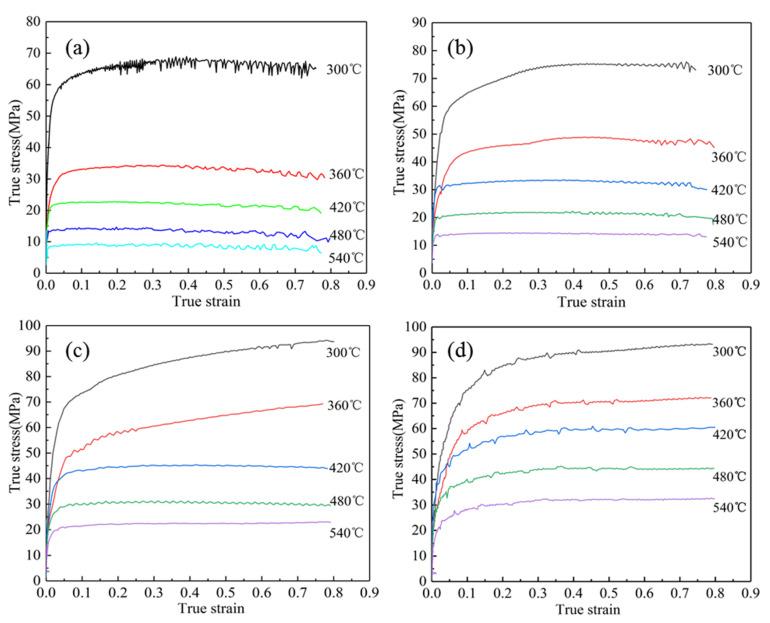

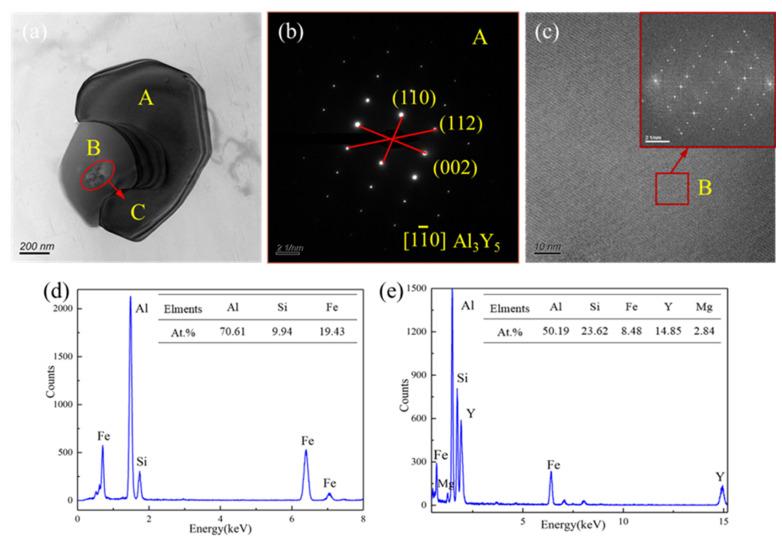

The hot deformation behaviors of the new 6063 aluminum alloy modified by rare earth Y and Al-Ti-B master alloy were studied through isothermal hot compression experiments on the Gleeble-3800 thermal simulator. By characterizing the flow curves, constitutive models, hot processing maps, and microstructures, we can see from the true stress-true strain curves that the flow stress decreases with the increase of deformation temperature and the decrease of strain rate. Through the calculation of the constitutive equation, we derived that the activation energy of the new composite modified 6063 aluminum alloy is 224.570 KJ/mol. we roughly obtained its excellent hot processing range of temperatures between 470-540 °C and the strain rates of 0.01-0.1 s. The verification of the deformed microstructure shows that with the decrease of lnZ, the grain boundary changes from a low-angle one to a high-angle one and the dynamic recrystallization is dominated by geometric dynamic recrystallization and continuous dynamic recrystallization. Analysis of typical samples at 480 °C/0.01 s shows that the addition of rare earth Y mainly helps form AlY and AlFeSiY phases, thus making the alloy have the performance of high-temperature recrystallization, which is beneficial to the hot workability of the alloy.

摘要

通过在Gleeble-3800热模拟试验机上进行等温热压缩试验,研究了稀土Y和Al-Ti-B中间合金复合变质处理后的新型6063铝合金的热变形行为。通过对流动曲线、本构模型、热加工图和微观组织的表征,从真应力-真应变曲线可以看出,流变应力随变形温度的升高和应变速率的降低而减小。通过本构方程计算得出,新型复合变质6063铝合金的激活能为224.570 KJ/mol。大致得出其优良的热加工温度范围为470-540℃,应变速率为0.01-0.1s-1。对变形后的微观组织进行验证表明,随着lnZ值的减小,晶界由小角度晶界向大角度晶界转变,动态再结晶以几何动态再结晶和连续动态再结晶为主。对480℃/0.01s-1条件下的典型试样分析表明,稀土Y的加入主要促进了AlY和AlFeSiY相的形成,从而使合金具有高温再结晶性能,有利于合金的热加工性能。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/b23a/7579208/f8900ba43280/materials-13-04244-g010.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/b23a/7579208/bfacb23aeea4/materials-13-04244-g001.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/b23a/7579208/fab4b6bb8141/materials-13-04244-g002.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/b23a/7579208/38299e119b33/materials-13-04244-g003.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/b23a/7579208/035374dfd896/materials-13-04244-g004.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/b23a/7579208/038506da3328/materials-13-04244-g005.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/b23a/7579208/776de56ada1c/materials-13-04244-g006.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/b23a/7579208/f516ea432005/materials-13-04244-g007.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/b23a/7579208/02bd1cee14d5/materials-13-04244-g008.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/b23a/7579208/38f6fcce1b57/materials-13-04244-g009.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/b23a/7579208/f8900ba43280/materials-13-04244-g010.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/b23a/7579208/bfacb23aeea4/materials-13-04244-g001.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/b23a/7579208/fab4b6bb8141/materials-13-04244-g002.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/b23a/7579208/38299e119b33/materials-13-04244-g003.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/b23a/7579208/035374dfd896/materials-13-04244-g004.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/b23a/7579208/038506da3328/materials-13-04244-g005.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/b23a/7579208/776de56ada1c/materials-13-04244-g006.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/b23a/7579208/f516ea432005/materials-13-04244-g007.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/b23a/7579208/02bd1cee14d5/materials-13-04244-g008.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/b23a/7579208/38f6fcce1b57/materials-13-04244-g009.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/b23a/7579208/f8900ba43280/materials-13-04244-g010.jpg

相似文献

1
Hot Deformation Behavior and Microstructure Evolution of 6063 Aluminum Alloy Modified by Rare Earth Y and Al-Ti-B Master Alloy.稀土Y和Al-Ti-B中间合金变质6063铝合金的热变形行为及组织演变
Materials (Basel). 2020 Sep 23;13(19):4244. doi: 10.3390/ma13194244.
2
Constitutive Analysis and Microstructure Characteristics of As-Homogenized 2198 Al-Li Alloy under Different Hot Compression Deformation Conditions.不同热压缩变形条件下均匀化态2198铝锂合金的本构分析及微观组织特征
Materials (Basel). 2023 Mar 27;16(7):2660. doi: 10.3390/ma16072660.
3
Dynamic recrystallization behavior and processing map of the Cu-Cr-Zr-Nd alloy.Cu-Cr-Zr-Nd合金的动态再结晶行为及加工图
Springerplus. 2016 May 20;5(1):666. doi: 10.1186/s40064-016-2317-z. eCollection 2016.
4
Hot Deformation Behavior and Microstructure Evolution of Cu-Ni-Co-Si Alloys.铜镍钴硅合金的热变形行为与微观组织演变
Materials (Basel). 2020 Apr 27;13(9):2042. doi: 10.3390/ma13092042.
5
Hot Deformation Behavior and Dynamic Softening Mechanism in 7B50 Aluminum Alloy.7B50铝合金的热变形行为及动态软化机制
Materials (Basel). 2023 Aug 12;16(16):5590. doi: 10.3390/ma16165590.
6
A Physically Based Constitutive Model and Continuous Dynamic Recrystallization Behavior Analysis of 2219 Aluminum Alloy during Hot Deformation Process.2219铝合金热变形过程中基于物理的本构模型及连续动态再结晶行为分析
Materials (Basel). 2018 Aug 15;11(8):1443. doi: 10.3390/ma11081443.
7
Hot Deformation Behaviors of the Mg-3Sn-2Al-1Zn Alloy: Investigation on its Constitutive Equation, Processing Map, and Microstructure.Mg-3Sn-2Al-1Zn合金的热变形行为:本构方程、加工图及微观组织研究
Materials (Basel). 2020 Jan 9;13(2):312. doi: 10.3390/ma13020312.
8
Dynamic Recrystallization Behavior and Processing Map of the 6082 Aluminum Alloy.6082铝合金的动态再结晶行为及加工图
Materials (Basel). 2020 Feb 26;13(5):1042. doi: 10.3390/ma13051042.
9
Constitutive Equation and Hot Compression Deformation Behavior of Homogenized Al-7.5Zn-1.5Mg-0.2Cu-0.2Zr Alloy.均匀化Al-7.5Zn-1.5Mg-0.2Cu-0.2Zr合金的本构方程及热压缩变形行为
Materials (Basel). 2017 Oct 18;10(10):1193. doi: 10.3390/ma10101193.
10
Effect of Zr and Er Addition on the Microstructural Evolution of a Novel Al-Mg-Zn-Er-Zr Alloy during Hot Compression.添加Zr和Er对新型Al-Mg-Zn-Er-Zr合金热压缩过程中微观组织演变的影响
Materials (Basel). 2023 Jan 16;16(2):858. doi: 10.3390/ma16020858.

引用本文的文献

1
Hot Deformation Behavior and Workability of In Situ TiB2/7050Al Composites Fabricated by Powder Metallurgy.粉末冶金制备原位TiB2/7050Al复合材料的热变形行为及加工性能
Materials (Basel). 2020 Nov 24;13(23):5319. doi: 10.3390/ma13235319.

本文引用的文献

1
Microstructural Evolution and Dynamic Softening Mechanisms of Al-Zn-Mg-Cu Alloy during Hot Compressive Deformation.Al-Zn-Mg-Cu合金在热压缩变形过程中的微观组织演变及动态软化机制
Materials (Basel). 2014 Jan 8;7(1):244-264. doi: 10.3390/ma7010244.
