Assessment of D-Shaped Annulus of Mitral Valve in Patients with Severe MR Using Semi-Automated 4-Dimensional Analysis: Implications for Transcatheter Interventions.

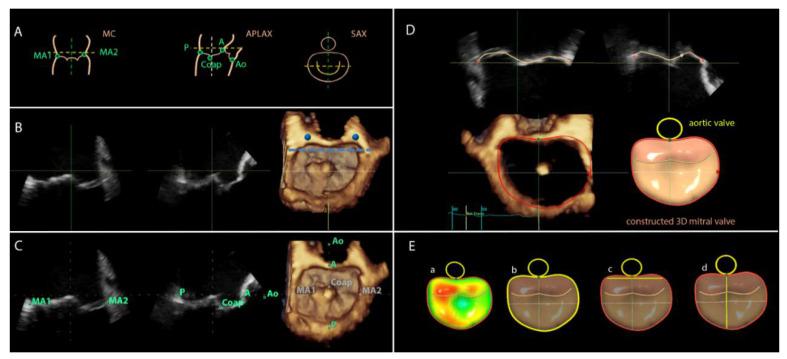

The development of transcatheter mitral valve replacement therapies requires accurate post-processing analysis tools to provide D-shaped mitral annulus dimensions from 3-dimensional (3D) data. The agreement between two semi-automated, software packages to process 3D transesophageal echocardiography (TEE) data for the measurement of the mitral valve annulus dimensions was evaluated. 3DTEE data of patients with moderate-severe mitral regurgitation (MR) were postprocessed with semi-automated, vendor-independent (VI) software and vendor-specific (VS) software. Both post-processing software provided key measurements for the selection of transcatheter valve prosthesis size: annulus area, annulus circumference and the septal-to-lateral distance of the annulus. The intertrigonal distance was provided only by the VS software. The inter- and intra-observer agreements were assessed with Bland-Altman analysis. Of 105 patients (63.8 ± 11 years, 66% male) with MR, 28 had secondary MR, 45 fibroelastic deficiency, and 32 Barlow's disease. Using VS software, the dimensions for the overall population were 16.1 ± 4.6 cm for annulus area, for circumference 14.4 ± 1.9 cm, intertrigonal distance 3.4 ± 0.5 cm and septal-to-lateral distance 3.8 ± 0.6 cm. Similar dimensions were obtained using VI software: 15.7 ± 4.6 cm for annulus area, 14.5 ± 2.0 cm for circumference, and 4.1 ± 0.6 cm for septal-to-lateral distance. The inter- and intra-observer agreement for both software programs was excellent. In conclusion, current post-processing software programs for 3DTEE data of the mitral valve annulus provide good reproducibility of key measurements to select the transcatheter prosthesis size.
