Liang Bingliang, Ai Yunlong, Wang Yiliang, Liu Changhong, Ouyang Sheng, Liu Meijiao
Key Laboratory for Microstructural Control of Metallic Materials of Jiangxi Province, Nanchang Hangkong University, Nanchang 330063, China.
School of Materials Science and Engineering, Nanchang Hangkong University, No.696, South Fenhe Avenue, Nanchang 330063, China.
Materials (Basel). 2020 Dec 18;13(24):5798. doi: 10.3390/ma13245798.

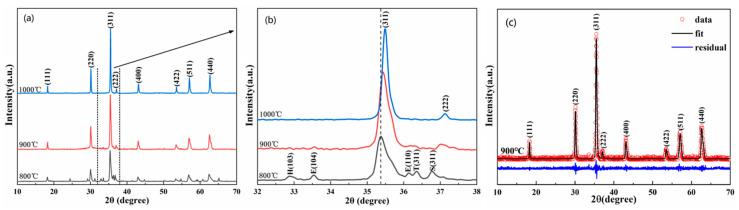

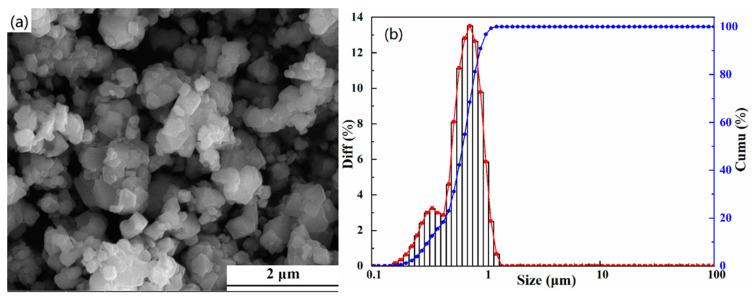

High-entropy oxides (HEOs) have attracted more and more attention because of their unique structures and potential applications. In this work, (FeCoCrMnZn)O HEO powders were synthesized via a facile solid-state reaction route. The confirmation of phase composition, the observation of microstructure, and the analysis of crystal structure, distribution of elements, and valences of elements were conducted by X-ray diffraction (XRD), scanning electron microscopy (SEM), transmission electron microscopy (TEM), energy-dispersive X-ray spectroscopy (EDS), and X-ray photoelectron spectroscopy (XPS), respectively. Furthermore, a (FeCoCrMnZn)O/nickel foam ((FeCoCrMnZn)O/NF) electrode was prepared via a coating method, followed by the investigation of its supercapacitor performance. The results show that, after calcining (FeCoCrMnZn)O powders at 900 °C for 2 h, a single spinel structure (FCC, Fd-3m, = 0.8399 nm) was obtained with uniform distribution of Fe, Co, Cr, Mn, and Zn elements, the typical characteristic of a high-entropy oxide. In addition, the mass specific capacitance of the (FeCoCrMnZn)O/NF composite electrode was 340.3 F·g (with 1 M KOH as the electrolyte and 1 A·g current density), which indicates that the (FeCoCrMnZn)O HEO can be regarded as a prospective candidate for an electrode material in the field of supercapacitor applications.
高熵氧化物(HEOs)因其独特的结构和潜在的应用而受到越来越多的关注。在本工作中,通过简便的固态反应路线合成了(FeCoCrMnZn)O高熵氧化物粉末。分别采用X射线衍射(XRD)、扫描电子显微镜(SEM)、透射电子显微镜(TEM)、能量色散X射线光谱(EDS)和X射线光电子能谱(XPS)对相组成进行确认、对微观结构进行观察以及对晶体结构、元素分布和元素价态进行分析。此外,通过涂覆法制备了(FeCoCrMnZn)O/泡沫镍((FeCoCrMnZn)O/NF)电极,并对其超级电容器性能进行了研究。结果表明,将(FeCoCrMnZn)O粉末在900℃下煅烧2 h后,获得了单一的尖晶石结构(FCC,Fd-3m, = 0.8399 nm),Fe、Co、Cr、Mn和Zn元素分布均匀,这是高熵氧化物的典型特征。此外,(FeCoCrMnZn)O/NF复合电极的质量比电容为340.3 F·g(以1 M KOH为电解质,电流密度为1 A·g),这表明(FeCoCrMnZn)O高熵氧化物可被视为超级电容器应用领域中电极材料的潜在候选者。
