Waisman Center, University of Wisconsin-Madison, Madison, Wisconsin, United States of America.
School of Medicine and Public Health, University of Wisconsin-Madison, Madison, Wisconsin, United States of America.
PLoS One. 2020 Dec 23;15(12):e0244186. doi: 10.1371/journal.pone.0244186. eCollection 2020.

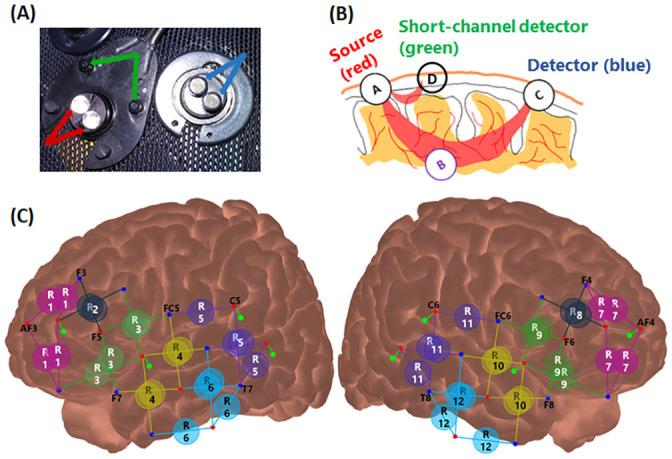

Functional near-infrared spectroscopy (fNIRS) is a non-invasive technique used to measure changes in oxygenated (HbO) and deoxygenated (HbR) hemoglobin, related to neuronal activity. fNIRS signals are contaminated by the systemic responses in the extracerebral tissue (superficial layer) of the head, as fNIRS uses a back-reflection measurement. Using shorter channels that are only sensitive to responses in the extracerebral tissue but not in the deeper layers where target neuronal activity occurs has been a 'gold standard' to reduce the systemic responses in the fNIRS data from adults. When shorter channels are not available or feasible for implementation, an alternative, i.e., anti-correlation (Anti-Corr) method has been adopted. To date, there has not been a study that directly assesses the outcomes from the two approaches. In this study, we compared the Anti-Corr method with the 'gold standard' in reducing systemic responses to improve fNIRS neural signal qualities. We used eight short channels (8-mm) in a group of adults, and conducted a principal component analysis (PCA) to extract two components that contributed the most to responses in the 8 short channels, which were assumed to contain the global components in the extracerebral tissue. We then used a general linear model (GLM), with and without including event-related regressors, to regress out the 2 principal components from regular fNIRS channels (30 mm), i.e., two GLM-PCA methods. Our results found that, the two GLM-PCA methods showed similar performance, both GLM-PCA methods and the Anti-Corr method improved fNIRS signal qualities, and the two GLM-PCA methods had better performance than the Anti-Corr method.
功能近红外光谱(fNIRS)是一种非侵入性技术,用于测量与神经元活动相关的含氧(HbO)和去氧(HbR)血红蛋白的变化。fNIRS 信号受到头部外脑组织(浅层)的系统反应的污染,因为 fNIRS 使用背反射测量。使用仅对外脑组织反应敏感而不对目标神经元活动发生的更深层敏感的较短通道一直是减少成人 fNIRS 数据中系统反应的“金标准”。当较短的通道不可用时或无法实施时,采用了替代方法,即抗相关(Anti-Corr)方法。迄今为止,还没有一项研究直接评估这两种方法的结果。在这项研究中,我们比较了 Anti-Corr 方法与“金标准”在减少系统反应以改善 fNIRS 神经信号质量方面的效果。我们在一组成年人中使用了 8 个短通道(8mm),并进行了主成分分析(PCA),以提取对 8 个短通道反应贡献最大的两个成分,这两个成分被认为包含了外脑组织中的全局成分。然后,我们使用广义线性模型(GLM),包括和不包括事件相关回归器,从常规 fNIRS 通道(30mm)中回归出这两个主成分,即两种 GLM-PCA 方法。我们的结果发现,两种 GLM-PCA 方法表现出相似的性能,两种 GLM-PCA 方法和 Anti-Corr 方法都改善了 fNIRS 信号质量,并且两种 GLM-PCA 方法的性能均优于 Anti-Corr 方法。
