Zhang Mingyue, Fang Ningjie, Song Xincheng, Chu Yinghao, Shu Song, Liu Yongjun
College of Architecture and Environment, Sichuan University, Chengdu 610065, Sichuan, China.
National Engineering Technology Research Center for Flue Gas Desulfurization, Chengdu 610065, Sichuan, China.
ACS Omega. 2020 Dec 8;5(50):32715-32723. doi: 10.1021/acsomega.0c05106. eCollection 2020 Dec 22.

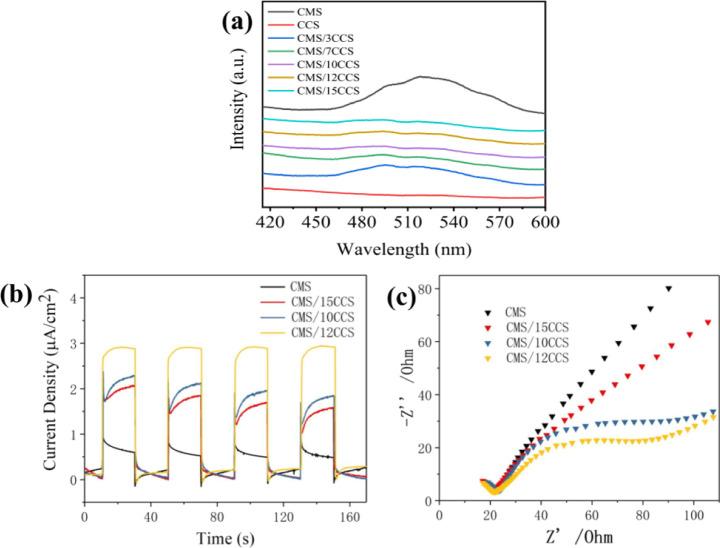

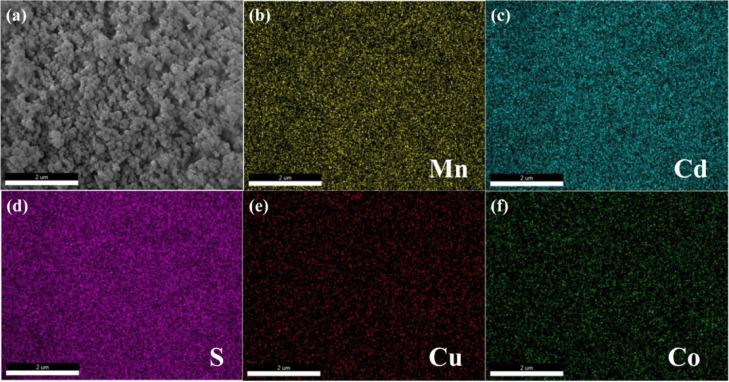

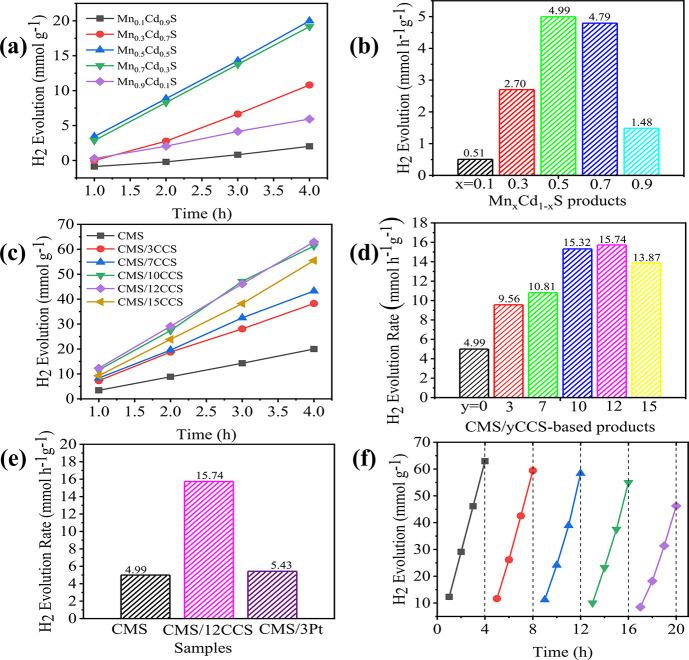

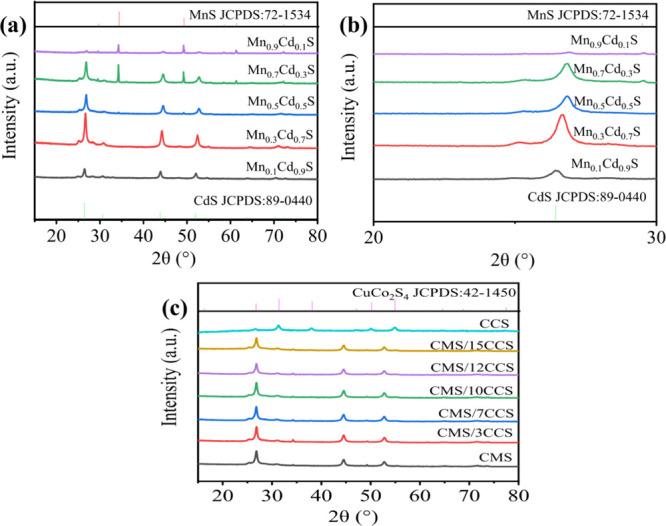

It is highly important to develop efficient and cheap photocatalysts for hydrogen production. Herein, a series of p-n heterojunction MnCdS/CuCoS has been successfully synthesized for the first time by the hydrothermal impregnation method. MnCdS/CuCoS loading with 12 wt % CuCoS shows the highest H evolution rate of 15.74 mmol h g under visible light (λ ≥ 420 nm) irradiation, which is about 3.15 and 15.28 times higher than that of bare MnCdS (4.99 mmol h g) and CuCoS (1.03 mmol h g), respectively. In addition, it shows a relatively good stability during the five recycle tests, with about 20% loss of reaction rate compared to that of the first cycle. The superior photocatalytic performance is attributed to the effective separation and transfer of photogenerated charge carriers because of the formation of the p-n junction. The samples are systematically characterized by X-ray diffraction, ultraviolet-visible (UV-vis), diffuse reflectance spectroscopy, scanning electron microscopy, transmission electron microscopy (TEM), high-resolution TEM, X-ray photoelectron spectroscopy, photoluminescence, EIS, and so on. UV-vis and EIS show that CuCoS can effectively improve the visible light response of MnCdS/CuCoS and promote the electron transfer from CuCoS to the conduction band of MnCdS, so as to improve the photocatalytic efficiency. This study reveals that the p-n heterojunction MnCdS/CuCoS is a promising photocatalyst to explore the photocatalysts without noble metals.
开发高效且廉价的用于制氢的光催化剂至关重要。在此,首次通过水热浸渍法成功合成了一系列p-n异质结MnCdS/CuCoS。负载12 wt% CuCoS的MnCdS/CuCoS在可见光(λ≥420 nm)照射下显示出最高的析氢速率,为15.74 mmol h g,分别约为裸MnCdS(4.99 mmol h g)和CuCoS(1.03 mmol h g)的3.15倍和15.28倍。此外,在五次循环测试中它表现出相对较好的稳定性,与第一次循环相比反应速率损失约20%。优异的光催化性能归因于p-n结的形成使得光生电荷载流子得到有效分离和转移。通过X射线衍射、紫外可见(UV-vis)、漫反射光谱、扫描电子显微镜、透射电子显微镜(TEM)、高分辨率TEM、X射线光电子能谱、光致发光、电化学阻抗谱等对样品进行了系统表征。UV-vis和EIS表明CuCoS可以有效改善MnCdS/CuCoS的可见光响应,并促进电子从CuCoS转移到MnCdS的导带,从而提高光催化效率。这项研究表明p-n异质结MnCdS/CuCoS是一种有前景的用于探索无贵金属光催化剂的光催化剂。
