经皮声诺维增强超声造影联合体外验证在早期乳腺癌前哨淋巴结检测及定性中的应用。
Percutaneous Sonazoid-enhanced ultrasonography combined with in vitro verification for detection and characterization of sentinel lymph nodes in early breast cancer.
机构信息
Department of Ultrasound, Peking University Third Hospital, 49 North Garden Road, Haidian District, Beijing, 100191, China.
Department of General Surgery, Peking University Third Hospital, 49 North Garden Road, Haidian District, Beijing, 100191, China.
出版信息
Eur Radiol. 2021 Aug;31(8):5894-5901. doi: 10.1007/s00330-020-07639-2. Epub 2021 Jan 27.
OBJECTIVES
To assess the efficacy of percutaneous Sonazoid-enhanced ultrasound and in vitro verification for identification sentinel lymph nodes (SLNs) and diagnosis of metastatic SLNs in patients with early breast cancer (BC).
METHODS
Sixty-eight patients with early BC were enrolled finally. After the induction of general anesthesia, 0.4 ml of Sonazoid (SNZ), a new second-generation tissue-specific ultrasound contrast agent (UCA), mixed with 0.6 ml of methylene blue, was injected intradermally. The lymphatic vessels and connected SLNs were immediately observed and marked. After being resected, these SLNs were soaked in saline water and examined still in the mode of contrast-enhanced ultrasound (CEUS) in vitro. This procedure could ensure that all the enhanced nodes had been removed as much as possible. The numbers of SLNs detected by UCA and blue dye were recorded. The enhancement patterns of SLNs were compared with the final pathological results.
RESULTS

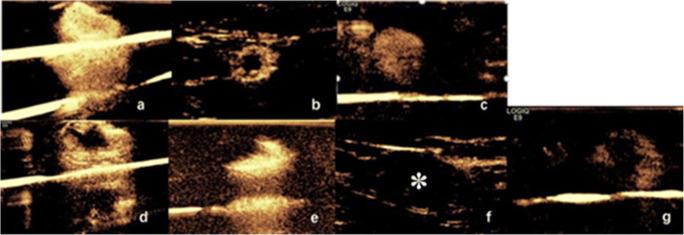

SLNs detection rate by SNZ-CEUS was 100%, which was higher than that by blue dye (95.59%). CEUS identified a median of 1.5 nodes, while blue dye identified a median of 1.9 nodes per case (p = 0.0012). When homogeneous high perfusion and complete annular high perfusion were regarded as negative nodes, the sensitivity and negative predictive value were 92.31% and 96.79% respectively, while the specificity was 84.21%.
CONCLUSIONS
Percutaneous SNZ-enhanced ultrasonography combined with in vitro verification is a feasible and reliable method for SLNs identification intraoperatively. Enhancement patterns can be helpful in determining the status of SLNs.
KEY POINTS
• CEUS with percutaneous injection of Sonazoid can successfully identify SLNs with the rate of 100% in early breast cancer patients, higher than 95.59% of blue dye. • Sonazoid, with high affinity with reticuloendothelial cells, increases the imaging time of SLNs and facilitates biopsy intraoperatively better than Sonovue as a lymphatic tracer. • Homogenous high and complete annular high perfusions have a sensitivity of 92.31% and a negative predictive value of 96.79% in the prediction of uninvolved SLNs.
目的
评估 SonoVue 增强超声经皮穿刺法与体外验证在早期乳腺癌患者前哨淋巴结(SLN)识别和转移性 SLN 诊断中的应用。
方法
最终纳入 68 例早期乳腺癌患者。全身麻醉诱导后,皮内注射 0.4ml 声诺维(第二代组织特异性超声造影剂),混合 0.6ml 亚甲蓝。立即观察并标记淋巴管和连接的 SLN。切除后,这些 SLN 浸泡在盐水中,在体外仍以超声造影(CEUS)模式进行检查。该过程可确保尽可能多地切除增强的淋巴结。记录 UCA 和蓝染法检测到的 SLN 数量。比较 SLN 的增强模式与最终病理结果。
结果
SNZ-CEUS 检测 SLN 的成功率为 100%,高于蓝染法(95.59%)。CEUS 平均检出 1.5 个淋巴结,而蓝染法平均检出 1.9 个(p=0.0012)。当将均匀高灌注和完全环状高灌注视为阴性淋巴结时,其灵敏度和阴性预测值分别为 92.31%和 96.79%,特异性为 84.21%。
结论
经皮 Sonazoid 增强超声联合体外验证是一种可行、可靠的术中 SLN 识别方法。增强模式有助于确定 SLN 的状态。
关键点
早期乳腺癌患者经皮注射声诺维的 CEUS 可成功识别 SLN,成功率为 100%,高于蓝染法(95.59%)。
Sonazoid 与网状内皮细胞具有高亲和力,增加了 SLN 的成像时间,优于 Sonovue 作为淋巴管示踪剂,有助于术中活检。
均匀高灌注和完全环状高灌注对预测无转移 SLN 的灵敏度为 92.31%,阴性预测值为 96.79%。
