PURPOSE

To evaluate the microsphere outflow dynamics and residual Ho-166 activity during and after transarterial radioembolization planning and treatment procedures, and to assess the distribution and predilection sites of residual activity in the proprietary delivery set and the microcatheter.

MATERIALS AND METHODS

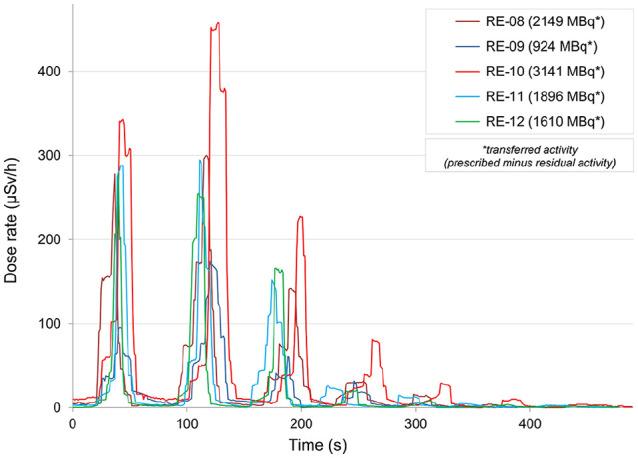

Fifteen planning and 12 therapeutic radioembolization procedures were performed with poly-l-lactic acid microspheres loaded with Ho-166. The amount and distribution of residual activity was assessed by dose calibrator measurements and SPECT imaging. The activity flow profile from the microcatheter was assessed dynamically. For planning procedures, different injection methods were evaluated in order to attempt to decrease the residual activity.

RESULTS

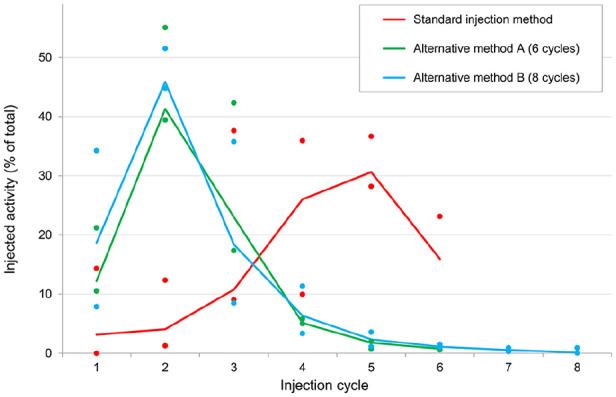

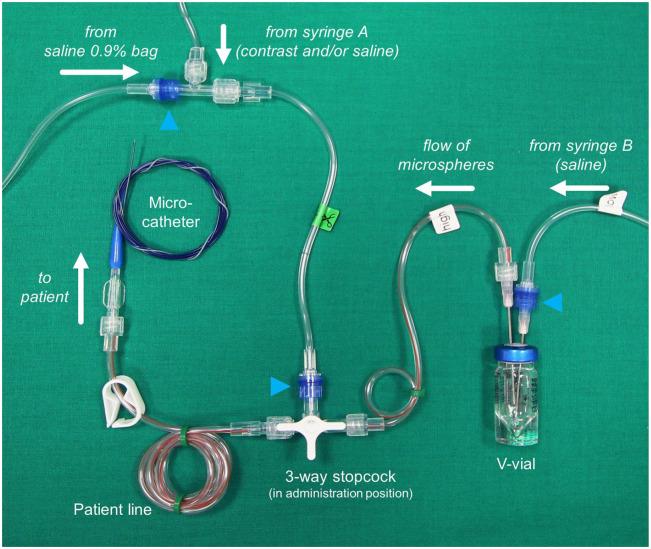

The median residual activities for planning and treatment procedures using standard injection methods were 31.2% (range 17.3%-44.1%) and 4.3% (range 3.5%-6.9%), respectively. Planning residual activities could be decreased significantly with 2 injection methods similar to treatment procedures, to 17.5% and 10.9%, respectively ( = 0.002). Main predilection sites of residual microspheres were the 3-way stopcock and the outflow needle connector. During treatment procedures, more than 80% of the injected activity is transferred during the first 3 injection cycles.

CONCLUSION

After treatment procedures with holmium-loaded microspheres, mean residual activity in the delivery set is reproducibly low and between reported values for glass and resin microspheres. The majority of microspheres is transferred to the patient during the second and third injection cycle. An estimated residual waste of 3% to 4% may be included in the treatment activity calculation. For planning procedures, a modified injection technique should be used to avoid high residual activities.
