Inspiratory Efforts, Positive End-Expiratory Pressure, and External Resistances Influence Intraparenchymal Gas Redistribution in Mechanically Ventilated Injured Lungs.

BACKGROUND

Potentially harmful lung overstretch can follow intraparenchymal gas redistribution during mechanical ventilation. We hypothesized that inspiratory efforts characterizing spontaneous breathing, positive end-expiratory pressure (PEEP), and high inspiratory resistances influence inspiratory intraparenchymal gas redistribution.

METHODS

This was an experimental study conducted on a swine model of mild acute respiratory distress syndrome. Dynamic computed tomography and respiratory mechanics were simultaneously acquired at different PEEP levels and external resistances, during both spontaneous breathing and controlled mechanical ventilation. Images were collected at two cranial-caudal levels. Delta-volume images (ΔVOLs) were obtained subtracting pairs of consecutive inspiratory images. The first three ΔVOLs, acquired for each analyzed breath, were used for the analysis of inspiratory pendelluft defined as intraparenchymal gas redistribution before the start of inspiratory flow at the airway opening. The following ΔVOLs were used for the analysis of gas redistribution during ongoing inspiratory flow at the airway opening.

RESULTS

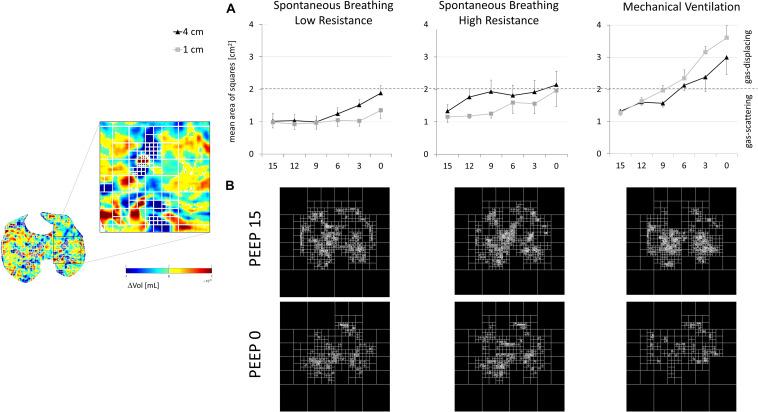

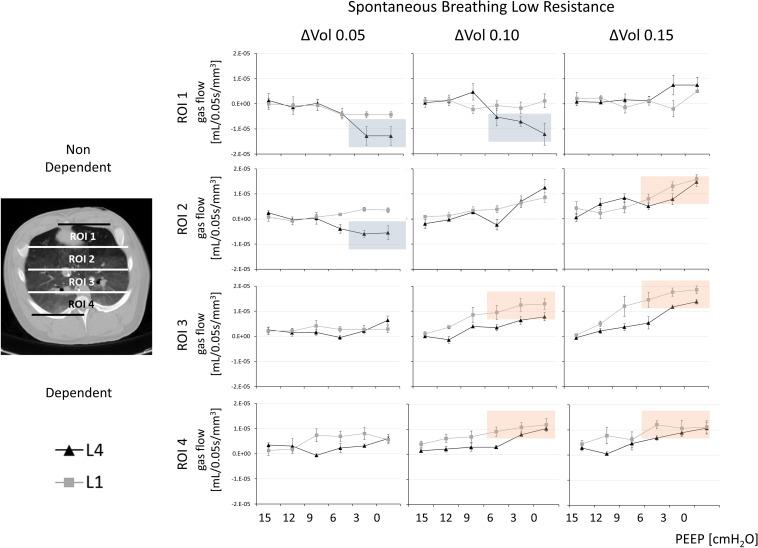

During the first flow-independent phase of inspiration, the pendelluft of gas was observed only during spontaneous breathing and along the cranial-to-caudal and nondependent-to-dependent directions. The pendelluft was reduced by high PEEP ( < 0.04 comparing PEEP 15 and PEEP 0 cm HO) and low external resistances ( < 0.04 comparing high and low external resistance). During the flow-dependent phase of inspiration, two patterns were identified: (1) characterized by large gas redistribution areas; (2) characterized by small, numerous areas of gas redistribution. was observed at low PEEP, high external resistances, and it characterized controlled mechanical ventilation ( < 0.01, comparing high and low PEEP during controlled mechanical ventilation).

CONCLUSIONS

Low PEEP and high external resistances favored inspiratory pendelluft. During the flow-dependent phase of the inspiration, controlled mechanical ventilation and low PEEP and high external resistances favored larger phenomena of intraparenchymal gas redistribution (gas displacing) endangering lung stability.
