Department of Nuclear Medicine, School of Medicine, Kyungpook National University, 130 Dongdeok-ro, Jung Gu, Daegu, 41944, Republic of Korea.
Department of Nuclear Medicine, Kyungpook National University Hospital, Daegu, Republic of Korea.
Sci Rep. 2021 Mar 3;11(1):5041. doi: 10.1038/s41598-021-84636-5.

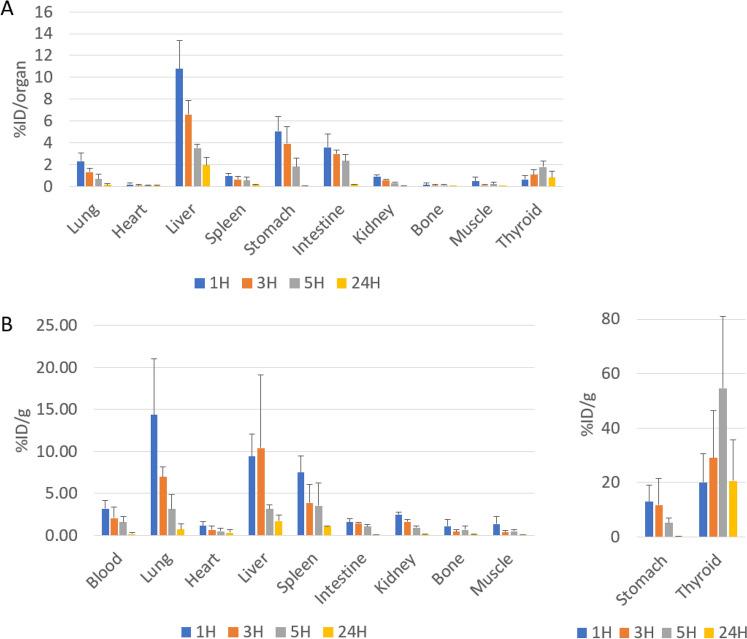

Biodistribution and role of extracellular vesicles (EVs) are still largely unknown. Reliable tracking methods for EVs are needed. In this study, nuclear imaging using radioiodine were developed and applied for tracking EVs derived from cell lines. EVs were obtained from supernatant of thyroid cancer cell (Cal62) and natural killer cells (NK92-MI) using sequential ultracentrifuges. Sulfosuccinimidyl-3-(4-hydroxypheynyl) propionate were labeled to membrane of Cal62 and NK92-MI cell derived EVs, then the EVs were labeled with radioiodine (I-131 and I-125) using pre-coated iodination tubes (RI-EVs). In vivo gamma camera images were obtained after intravenous injection of the RI-EVs, and ex vivo biodistribution study was also performed. EVs were labeled with radioiodine and radiochemical purity of the RI-EV was more than 98%. Results of nanoparticle tracking analysis and electron microscopy showed that there was no significant difference in EVs before and after the radioiodine labeling. After intravenous injection of RI-EVs to mice, gamma camera imaging well visualized the real-time biodistribution of the RI-EVs. RI-EVs were mainly visualized at liver, spleen, and lung. Nuclear imaging system of EVs derived from thyroid cancer and NK cells using radioiodine labeling of the EVs was established. Thus, this system might be helpful for in vivo tracking of EVs.
细胞外囊泡(EVs)的分布和作用在很大程度上仍然未知。需要可靠的 EV 追踪方法。在这项研究中,开发了使用放射性碘的核成像,并将其应用于追踪源自细胞系的 EVs。使用连续超速离心法从甲状腺癌细胞(Cal62)和自然杀伤细胞(NK92-MI)的上清液中获得 EVs。用琥珀酰亚胺基-3-(4-羟苯基)丙酸标记 Cal62 和 NK92-MI 细胞衍生的 EV 的膜,然后使用预涂碘化管(RI-EVs)将 EV 标记放射性碘(I-131 和 I-125)。静脉注射 RI-EVs 后获得体内伽马相机图像,并进行体外生物分布研究。RI-EV 的放射性碘标记和放射化学纯度均大于 98%。纳米颗粒跟踪分析和电子显微镜的结果表明,放射性碘标记前后 EVs 没有明显差异。将 RI-EVs 静脉注射到小鼠体内后,伽马相机成像很好地可视化了 RI-EVs 的实时生物分布。RI-EVs 主要在肝脏、脾脏和肺部可视化。使用 EVs 的放射性碘标记建立了源自甲状腺癌和 NK 细胞的 EVs 的核成像系统。因此,该系统可能有助于 EV 的体内追踪。
