使用振荡梯度自旋回波对骨骼肌收缩进行扩散张量成像。

Diffusion Tensor Imaging of Skeletal Muscle Contraction Using Oscillating Gradient Spin Echo.

作者信息

Mazzoli Valentina, Moulin Kevin, Kogan Feliks, Hargreaves Brian A, Gold Garry E

机构信息

Department of Radiology, Stanford University, Stanford, CA, United States.

出版信息

Front Neurol. 2021 Feb 15;12:608549. doi: 10.3389/fneur.2021.608549. eCollection 2021.

Abstract

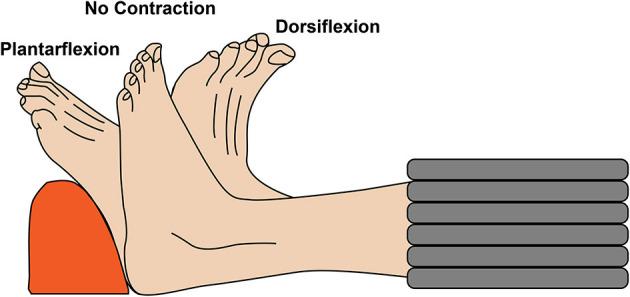

Diffusion tensor imaging (DTI) measures water diffusion in skeletal muscle tissue and allows for muscle assessment in a broad range of neuromuscular diseases. However, current DTI measurements, typically performed using pulsed gradient spin echo (PGSE) diffusion encoding, are limited to the assessment of non-contracted musculature, therefore providing limited insight into muscle contraction mechanisms and contraction abnormalities. In this study, we propose the use of an oscillating gradient spin echo (OGSE) diffusion encoding strategy for DTI measurements to mitigate the effect of signal voids in contracted muscle and to obtain reliable diffusivity values. Two OGSE sequences with encoding frequencies of 25 and 50 Hz were tested in the lower leg of five healthy volunteers with relaxed musculature and during active dorsiflexion and plantarflexion, and compared with a conventional PGSE approach. A significant reduction of areas of signal voids using OGSE compared with PGSE was observed in the tibialis anterior for the scans obtained in active dorsiflexion and in the soleus during active plantarflexion. The use of PGSE sequences led to unrealistically elevated axial diffusivity values in the tibialis anterior during dorsiflexion and in the soleus during plantarflexion, while the corresponding values obtained using the OGSE sequences were significantly reduced. Similar findings were seen for radial diffusivity, with significantly higher diffusivity measured in plantarflexion in the soleus muscle using the PGSE sequence. Our preliminary results indicate that DTI with OGSE diffusion encoding is feasible in human musculature and allows to quantitatively assess diffusion properties in actively contracting skeletal muscle. OGSE holds great potential to assess microstructural changes occurring in the skeletal muscle during contraction, and for non-invasive assessment of contraction abnormalities in patients with muscle diseases.

摘要

扩散张量成像(DTI)可测量骨骼肌组织中的水扩散情况,并有助于对多种神经肌肉疾病进行肌肉评估。然而,目前的DTI测量通常使用脉冲梯度自旋回波(PGSE)扩散编码来进行,仅限于对未收缩肌肉组织的评估,因此对肌肉收缩机制和收缩异常的了解有限。在本研究中,我们提出使用振荡梯度自旋回波(OGSE)扩散编码策略进行DTI测量,以减轻收缩肌肉中信号空洞的影响,并获得可靠的扩散率值。在五名健康志愿者的小腿处于肌肉放松状态、主动背屈和跖屈时,对编码频率为25 Hz和50 Hz的两种OGSE序列进行了测试,并与传统的PGSE方法进行比较。与PGSE相比,在主动背屈时获得的胫前肌扫描以及主动跖屈时比目鱼肌的扫描中,观察到使用OGSE时信号空洞区域显著减少。使用PGSE序列导致在背屈时胫前肌以及跖屈时比目鱼肌的轴向扩散率值出现不切实际的升高,而使用OGSE序列获得的相应值则显著降低。在径向扩散率方面也有类似发现,使用PGSE序列时比目鱼肌在跖屈时测得的扩散率显著更高。我们的初步结果表明,采用OGSE扩散编码的DTI在人体肌肉组织中是可行的,并且能够定量评估主动收缩的骨骼肌中的扩散特性。OGSE在评估收缩过程中骨骼肌发生的微观结构变化以及对肌肉疾病患者的收缩异常进行无创评估方面具有巨大潜力。
