Skowrońska Beata, Chmielewski Tomasz, Kulczyk Mariusz, Skiba Jacek, Przybysz Sylwia
Faculty of Production Engineering, Warsaw University of Technology, Narbutta 85, 02-524 Warsaw, Poland.
Institute of High Pressure Physics, Polish Academy of Sciences (Unipress), Sokołowska 29, 01-142 Warsaw, Poland.
Materials (Basel). 2021 Mar 21;14(6):1537. doi: 10.3390/ma14061537.

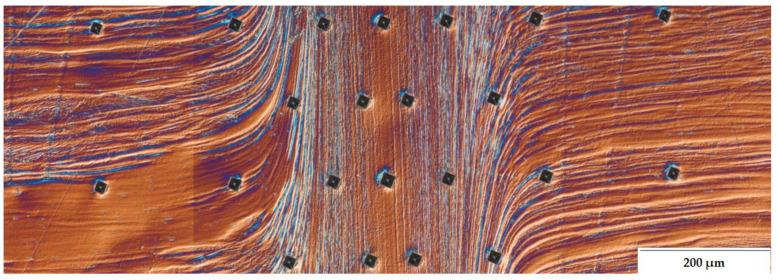

The paper presents the microstructural investigation of a friction-welded joint made of 316L stainless steel with an ultrafine-grained structure obtained by hydrostatic extrusion (HE). Such a plastically deformed material is characterized by a metastable state of energy equilibrium, increasing, among others, its sensitivity to high temperatures. This feature makes it difficult to weld ultra-fine-grained metals without losing their high mechanical properties. The use of high-speed friction welding and a friction time of <1 s reduced the scale of the weakening of the friction joint in relation to result obtained in conventional rotary friction welding. The study of changes in the microstructure of individual zones of the friction joint was carried out on an optical microscope (OM), scanning electron microscope (SEM), transmission electron microscope (TEM) and electron backscattered diffraction (EBSD) analysis system. The correlation between the microstructure and hardness of the friction joint is also presented. The heat released during the high-speed friction welding initiated the process of dynamic recrystallization (DRX) of single grains in the heat-affected zone (HAZ). The additional occurrence of strong plastic deformations (in HAZ) during flash formation and internal friction (in the friction weld and high-temperature HAZ) contributed to the formation of a highly deformed microstructure with numerous sub-grains. The zones with a microstructure other than the base material were characterized by lower hardness. Due to the complexity of the microstructure and its multifactorial impact on the properties of the friction-welded joint, strength should be the criterion for assessing the properties of the joint.
本文介绍了对由316L不锈钢制成的摩擦焊接接头的微观结构研究,该不锈钢具有通过静水挤压(HE)获得的超细晶粒结构。这种经过塑性变形的材料具有能量平衡的亚稳态,除其他外,其对高温的敏感性增加。这一特性使得在不损失其高机械性能的情况下焊接超细晶粒金属变得困难。使用高速摩擦焊接和小于1秒的摩擦时间,相对于传统旋转摩擦焊接的结果,减小了摩擦接头弱化的程度。在光学显微镜(OM)、扫描电子显微镜(SEM)、透射电子显微镜(TEM)和电子背散射衍射(EBSD)分析系统上对摩擦接头各个区域的微观结构变化进行了研究。还介绍了摩擦接头的微观结构与硬度之间的相关性。高速摩擦焊接过程中释放的热量引发了热影响区(HAZ)中单晶晶粒的动态再结晶(DRX)过程。在飞边形成过程中(在热影响区)和内部摩擦(在摩擦焊缝和高温热影响区)额外出现的强烈塑性变形,促成了具有大量亚晶粒的高度变形微观结构的形成。微观结构不同于母材的区域硬度较低。由于微观结构的复杂性及其对摩擦焊接接头性能的多因素影响,强度应作为评估接头性能的标准。
