Depth estimates of anomalous subsurface sources using 2D/3D modeling of potential field data: implications for groundwater dynamics in the Ziway-Shala Lakes Basin, Central Main Ethiopian Rift.

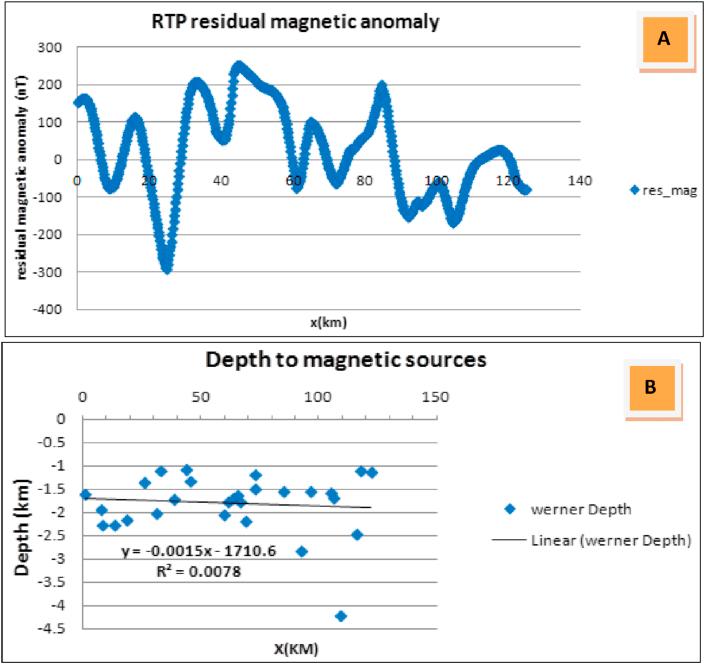

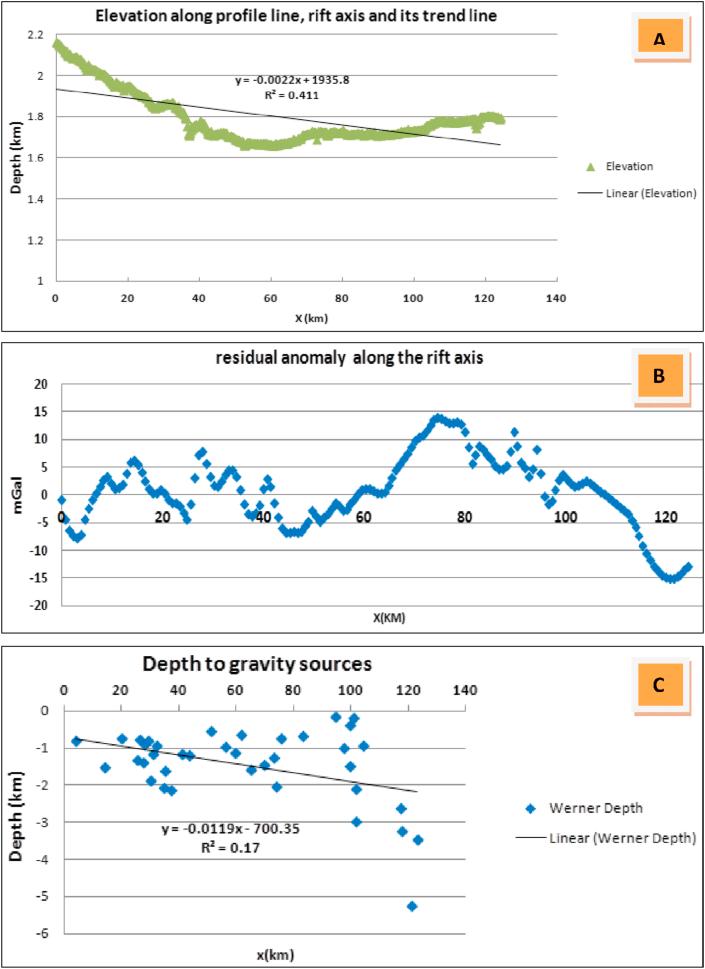

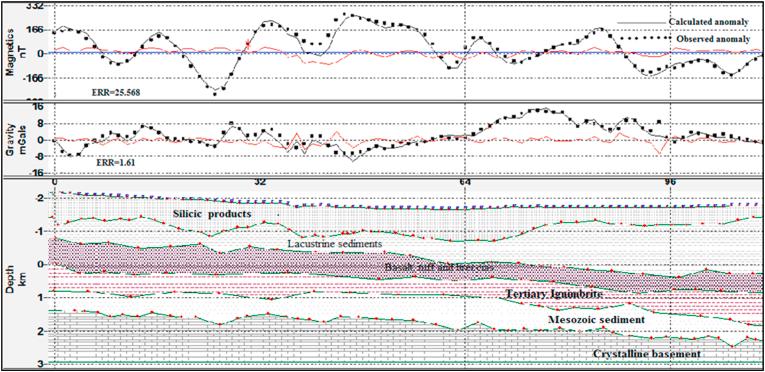

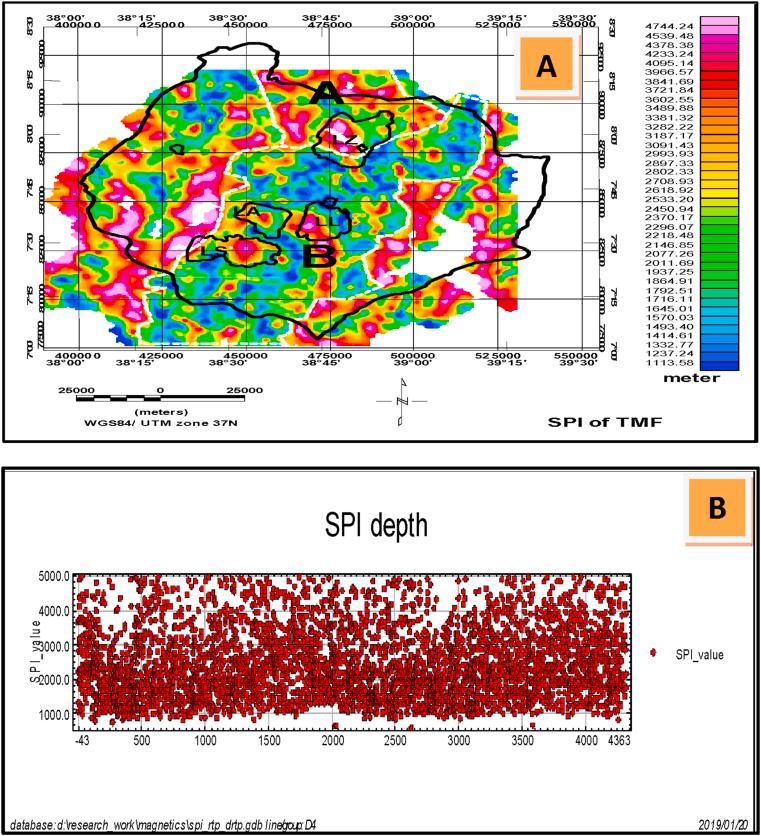

Quantitative analysis of potential field data are made in the Ziway-Shala lakes basin over an area bounded by 3800' E - 3930' E and 700' N - 830' N. Most previous geophysical studies in the region under consideration focus on mapping the deep crustal structures and undulation of the Moho depth. Only few studies are targeted at mapping the shallow subsurface structures. The main focus of this paper is mapping geometries of the major lithological and structural units of the shallow subsurface using gravity and magnetic data. The ultimate objective of the research is to understand the hydrogeological dynamics of the region through mapping interfaces geometries. Automatic inversions, 2D joint forward modeling and 3D inversion are the major techniques employed. The 2D Werner de-convolution based on both gravity and magnetic data along the rift axis showed source depths tending to deepen northwards. Source depths estimates determined by Source Parameter Imaging also showed similar tendency. This is further strengthened by the joint 2D forward modeling of gravity and magnetic data which showed the top of the basement is sloping northwards. The result of the 3D gravity interface inversion agrees with results of the above mentioned depth estimation techniques. Finally, the gravity power spectral analysis resulted in two depth estimates, 1.53 km and 2.87 km which approximate the positions of two density interfaces. The shallow depth interface is thought to presumably delineate the low density Fluvio-lacustrine sediments including the rift floor volcanic units and crystalline basement. Our investigation results agree with the results of previous seismic studies which identified low velocity ("sediment-volcanic") horizon in the rift floor with low resolution. The information obtained with regard to water balance of the basin, salinity level of the lakes and the conceptual hydrological flow model appears to reveal that the groundwater flow in the study region is controlled by subsurface structures, particularly, the mapped interface topographies.
