Logical modelling of differentiation of human monocytes into dendritic cells unravels novel transcriptional regulatory interactions.

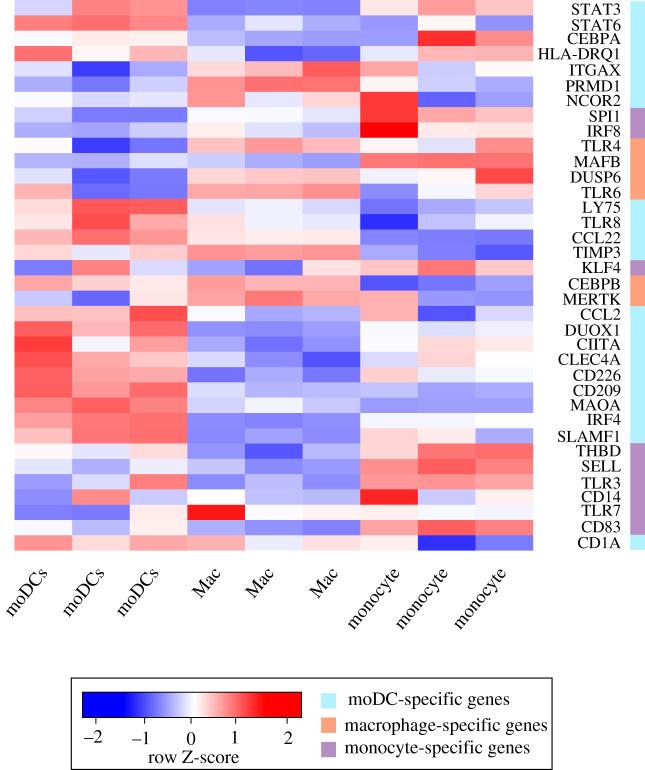

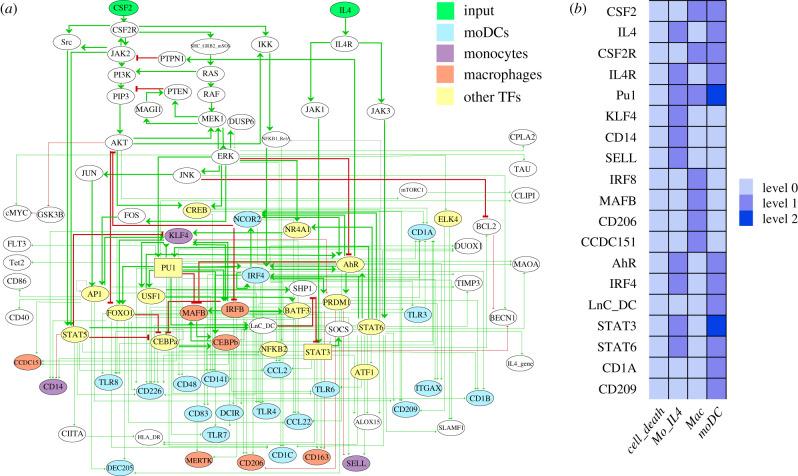

Dendritic cells (DCs) are the major specialized antigen-presenting cells, thereby connecting innate and adaptive immunity. Because of their role in establishing adaptive immunity, they constitute promising targets for immunotherapy. Monocytes can differentiate into DCs in the presence of colony-stimulating factor 2 (CSF2) and interleukin 4 (IL4), activating four signalling pathways (MAPK, JAK/STAT, NFKB and PI3K). However, the downstream transcriptional programme responsible for DC differentiation from monocytes (moDCs) remains unknown. By analysing the scientific literature on moDC differentiation, we established a preliminary logical model that helped us identify missing information regarding the activation of genes responsible for this differentiation, including missing targets for key transcription factors (TFs). Using ChIP-seq and RNA-seq data from the Blueprint consortium, we defined active and inactive promoters, together with differentially expressed genes in monocytes, moDCs and macrophages, which correspond to an alternative cell fate. We then used this functional genomic information to predict novel targets for previously identified TFs. By integrating this information, we refined our model and recapitulated the main established facts regarding moDC differentiation. Prospectively, the resulting model should be useful to develop novel immunotherapies targeting moDCs.
