Department of Radiology, Seoul National University Hospital, Seoul, Korea.
Department of Radiology, Seoul National University College of Medicine, Seoul, Korea.
Korean J Radiol. 2021 Sep;22(9):1537-1546. doi: 10.3348/kjr.2020.1464. Epub 2021 May 26.

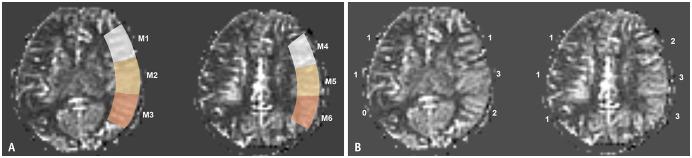

OBJECTIVE: To assess the role of arterial spin-labeling (ASL) perfusion MRI in identifying cerebral perfusion changes after indirect revascularization in children with moyamoya disease. MATERIALS AND METHODS: We included pre- and postoperative perfusion MRI data of 30 children with moyamoya disease (13 boys and 17 girls; mean age ± standard deviation, 6.3 ± 3.0 years) who underwent indirect revascularization between June 2016 and August 2017. Relative cerebral blood flow (rCBF) and qualitative perfusion scores for arterial transit time (ATT) effects were evaluated in the middle cerebral artery (MCA) territory on ASL perfusion MRI. The rCBF and relative time-to-peak (rTTP) values were also measured using dynamic susceptibility contrast (DSC) perfusion MRI. Each perfusion change on ASL and DSC perfusion MRI was analyzed using the paired test. We analyzed the correlation between perfusion changes on ASL and DSC images using Spearman's correlation coefficient. RESULTS: The ASL rCBF values improved at both the ganglionic and supraganglionic levels of the MCA territory after surgery ( = 0.040 and = 0.003, respectively). The ATT perfusion scores also improved at both levels ( < 0.001 and < 0.001, respectively). The rCBF and rTTP values on DSC MRI showed significant improvement at both levels of the MCA territory of the operated side (all < 0.05). There was no significant correlation between the improvements in rCBF values on the two perfusion images ( = 0.195, = 0.303); however, there was a correlation between the change in perfusion scores on ASL and rTTP on DSC MRI ( = 0.701, < 0.001). CONCLUSION: Recognizing the effects of ATT on ASL perfusion MRI may help monitor cerebral perfusion changes and complement quantitative rCBF assessment using ASL perfusion MRI in patients with moyamoya disease after indirect revascularization.
目的:评估动脉自旋标记(ASL)灌注 MRI 在识别儿童烟雾病间接血运重建后脑灌注变化中的作用。
材料与方法:我们纳入了 2016 年 6 月至 2017 年 8 月期间接受间接血运重建的 30 例烟雾病患儿(男 13 例,女 17 例;平均年龄±标准差,6.3±3.0 岁)的术前和术后灌注 MRI 数据。在 ASL 灌注 MRI 上评估大脑中动脉(MCA)区的相对脑血流(rCBF)和动脉渡越时间(ATT)效应的定性灌注评分。还使用动态对比增强(DSC)灌注 MRI 测量 rCBF 和相对达峰时间(rTTP)值。使用配对 t 检验分析 ASL 和 DSC 灌注 MRI 上的每个灌注变化。使用 Spearman 相关系数分析 ASL 和 DSC 图像上的灌注变化之间的相关性。

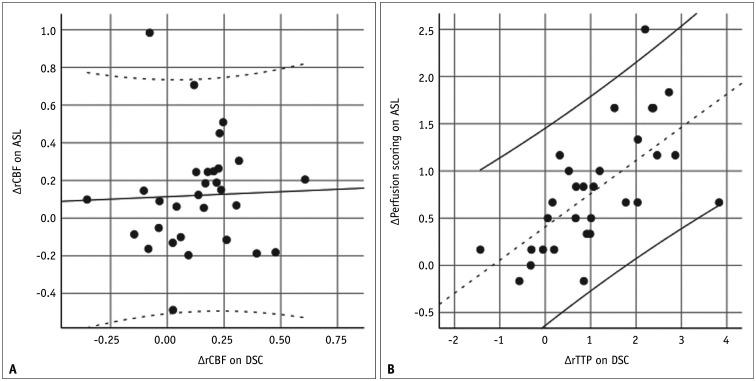

结果:手术后 MCA 区神经节和神经节上水平的 ASL rCBF 值均升高(分别为 =0.040 和 =0.003)。ATT 灌注评分也在两个水平上均改善(均<0.001)。DSC MRI 上 MCA 区手术侧的 rCBF 和 rTTP 值均显著改善(均<0.05)。两种灌注图像上 rCBF 值的改善之间没有显著相关性( =0.195, =0.303);然而,ASL 上灌注评分的变化与 DSC MRI 上 rTTP 之间存在相关性( =0.701,<0.001)。
结论:认识到 ATT 对 ASL 灌注 MRI 的影响有助于监测烟雾病间接血运重建后患者的脑灌注变化,并补充 ASL 灌注 MRI 对定量 rCBF 的评估。
