Kaplan Abdullah, Altara Raffaele, Manca Marco, Gunes Hacı Murat, Cataliotti Alessandro, Booz George W, Zouein Fouad A
Department of Pharmacology and Toxicology, American University of Beirut Faculty of Medicine, Riad El-Solh, Beirut, 1107 2020, Lebanon.
Department of Cardiology, Medipol University, Sefakoy Hospital, Tevfik Bey, Maslak Cesme Cd., No:30, 34295 Kucukcekmece, Istanbul, Turkey.
Egypt Heart J. 2021 Jun 26;73(1):55. doi: 10.1186/s43044-021-00177-2.
Left atrial (LA) size is frequently assessed by posterior-anterior linear measurement of LA (LAD P-A) in the parasternal long axis to expedite examination. Aging, changes in body surface area, and several cardiovascular pathologies can affect aortic root (AoR) size, thereby affecting LA anatomical shape. We hypothesized that AoR dilatation influences LAD P-A and consequently correct assessment of LA size.

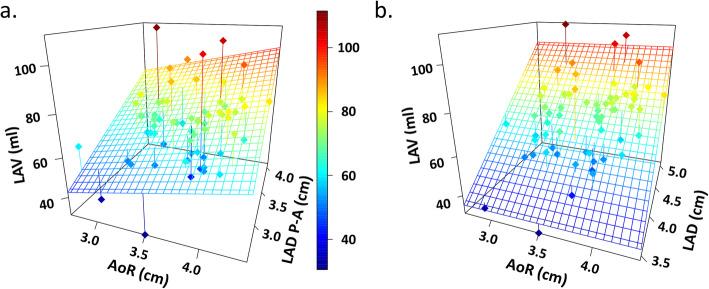

We tested our hypothesis in a study of 70 patients with AoR diameter ranging from 2.7 to 4.8 cm. LA size assessed in parasternal long axis view as LAD P-A was compared to that with LA width and length acquired in the apical two and four chamber view. Simpson's method of discs was used as standard measurement to assess LA volume. We observed that LAD P-A in the parasternal long axis decreases when AoR diameter increases. Thus, the increase in LA size assessed in parasternal long axis did not correlate with the increase of LA volume. Further analysis revealed that a significant positive correlation was observed when LAV was plotted as a function of LAD P-A only for those with a normal size AoR. In contrast, LA volume increase correlated with LA diameters assessed in the apical two and four chamber view regardless of AoR size.
Our study documents that increases in AoR impact on the linear measurement of LA, resulting in an underestimated LAD P-A. LA size ought to be calculated from the apical two and four chambers view parameters, especially in patients with AoR dilatation.
为加快检查速度,常通过在胸骨旁长轴上对左心房(LA)进行前后径线性测量(LAD P-A)来评估左心房大小。衰老、体表面积变化以及多种心血管疾病可影响主动脉根部(AoR)大小,进而影响左心房的解剖形态。我们推测主动脉根部扩张会影响LAD P-A,从而影响对左心房大小的正确评估。
我们在一项对70例主动脉根部直径范围为2.7至4.8厘米的患者的研究中验证了我们的假设。将在胸骨旁长轴视图中评估的作为LAD P-A的左心房大小与在心尖二腔和四腔视图中获取的左心房宽度和长度进行比较。采用Simpson圆盘法作为评估左心房容积的标准测量方法。我们观察到,当主动脉根部直径增加时,胸骨旁长轴上的LAD P-A减小。因此,在胸骨旁长轴上评估的左心房大小增加与左心房容积增加不相关。进一步分析显示,仅对于主动脉根部大小正常的患者,将左心房容积(LAV)绘制为LAD P-A的函数时观察到显著正相关。相反,无论主动脉根部大小如何,左心房容积增加与在心尖二腔和四腔视图中评估的左心房直径相关。
我们的研究证明,主动脉根部增大对左心房的线性测量有影响,导致LAD P-A被低估。左心房大小应根据心尖二腔和四腔视图参数计算,尤其是在主动脉根部扩张的患者中。
