Stoyanov Evgenii S, Bagryanskaya Irina Yu, Stoyanova Irina V
Vorozhtsov Novosibirsk Institute of Organic Chemistry SB RAS, Prospect Lavrentieva 9, Novosibirsk 630090, Russia.
ACS Omega. 2021 Jun 10;6(24):15834-15843. doi: 10.1021/acsomega.1c01297. eCollection 2021 Jun 22.

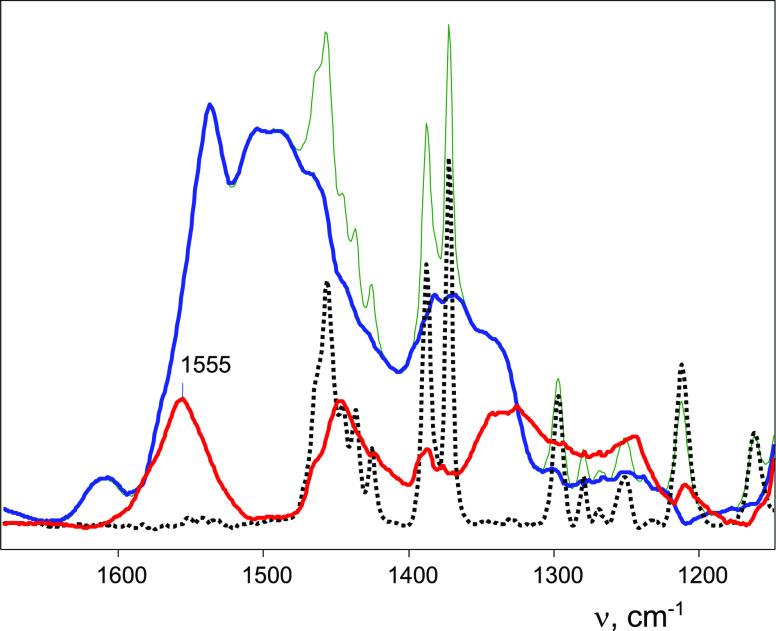

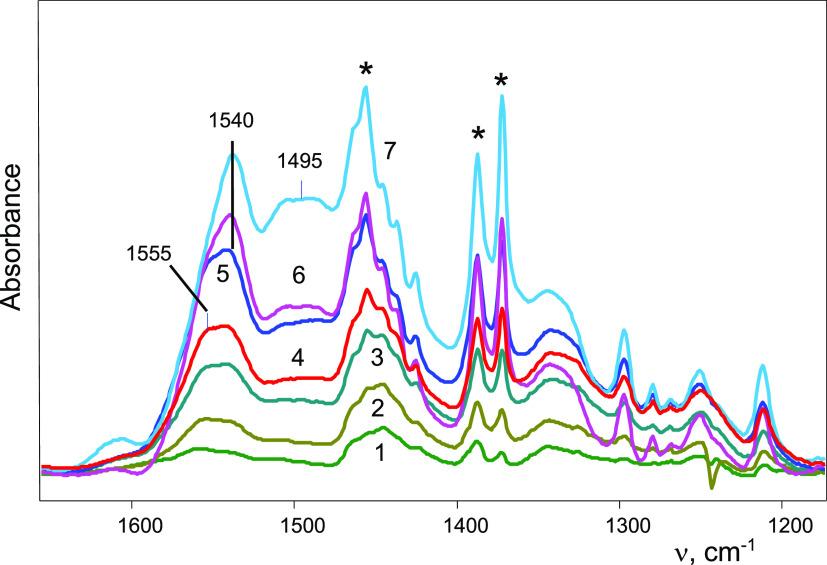

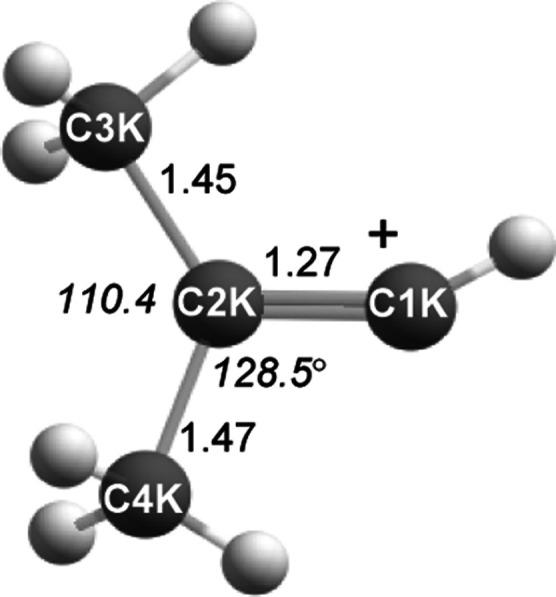

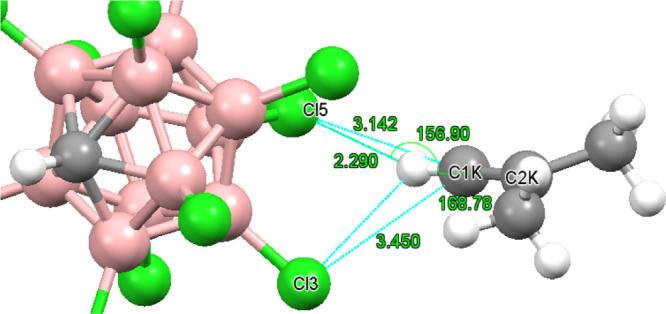

The isobutylene carbocation (CH)C=CH was obtained in amorphous and crystalline salts with the carborane anion CHBCl . The cation was characterized by X-ray crystallography and IR spectroscopy. Its crystal structure shows a relatively uniform ionic interaction of the cation with the surrounding anions, with a slightly shortened distance between the C atom of the =CH group and the Cl atom of the anion, pointing to a higher positive charge on this group. In the amorphous phase, the asymmetric interaction of the cation with the anion increases, approaching ion pairing. This gives rise to a strong hyperconjugation between the two CH groups and the 2p orbital of the central carbon sp atom (the red shift of the CH stretch is 150 cm); this effect stabilizes the cation. Over time, as the structure of the amorphous phase becomes more ordered, the hyperconjugation weakens and disappears in the crystalline phase with the disappearance of ion pairing. The carbocation stabilization in the crystalline phase is achieved due to the transfer of a portion of the charge to the neighboring anions, whereas the charge on the C=C bond becomes the strongest: the C=C stretch frequency drops to ∼160 cm relative to neutral isobutylene. The collected IR spectra for the optimized cation under vacuum (in the 6-311G ++ (d, p) basis for all HF, MP2, and DFT calculations) predict that a positive charge on the C=C bond increases its stretching frequency; this computational result contradicts the experimental data, perhaps because it does not take into account the significant impact of the environment.
异丁烯碳正离子(CH₃)₂C⁺=CH₂是在含有碳硼烷阴离子CHB₁₁Cl₁₁的非晶态和晶态盐中获得的。该碳正离子通过X射线晶体学和红外光谱进行表征。其晶体结构表明阳离子与周围阴离子之间存在相对均匀的离子相互作用,=CH基团的C原子与阴离子的Cl原子之间的距离略有缩短,表明该基团上的正电荷较高。在非晶相中,阳离子与阴离子的不对称相互作用增强,接近离子对。这导致两个CH₃基团与中心碳sp²原子的2p轨道之间产生强烈的超共轭作用(CH伸缩振动的红移为150 cm⁻¹);这种效应使碳正离子稳定。随着时间的推移,随着非晶相结构变得更加有序,超共轭作用减弱并在晶相中随着离子对的消失而消失。晶相中碳正离子的稳定是由于部分电荷转移到相邻阴离子上,而C=C键上的电荷变得最强:相对于中性异丁烯,C=C伸缩振动频率降至~160 cm⁻¹。在真空下对优化后的碳正离子收集的红外光谱(在所有HF、MP2和DFT计算的6 - 311G++(d, p)基组下)预测,C=C键上的正电荷会增加其伸缩振动频率;这个计算结果与实验数据相矛盾,可能是因为它没有考虑环境的重大影响。
