Shipunova Victoria O, Kolesnikova Olga A, Kotelnikova Polina A, Soloviev Vladislav D, Popov Anton A, Proshkina Galina M, Nikitin Maxim P, Deyev Sergey M
Shemyakin-Ovchinnikov Institute of Bioorganic Chemistry, Russian Academy of Sciences, 16/10 Miklukho-Maklaya Street, Moscow 117997, Russia.
Moscow Institute of Physics and Technology, 9 Institutskiy per., Dolgoprudny 141701, Russia.
ACS Omega. 2021 Jun 10;6(24):16000-16008. doi: 10.1021/acsomega.1c01811. eCollection 2021 Jun 22.

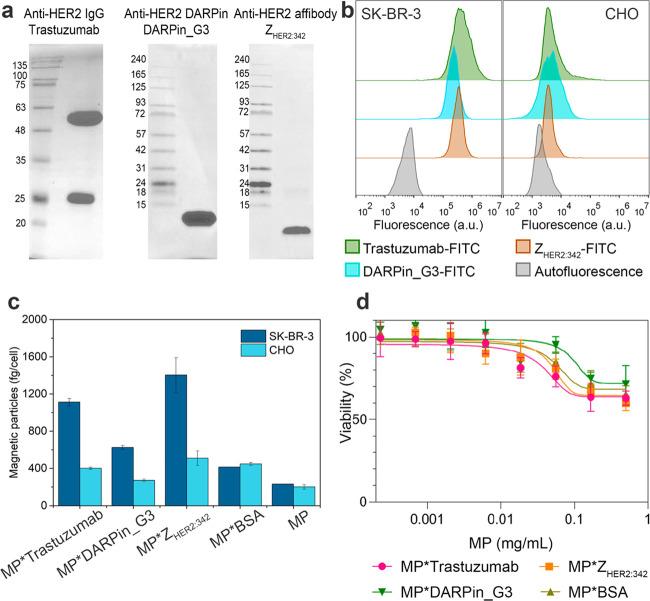

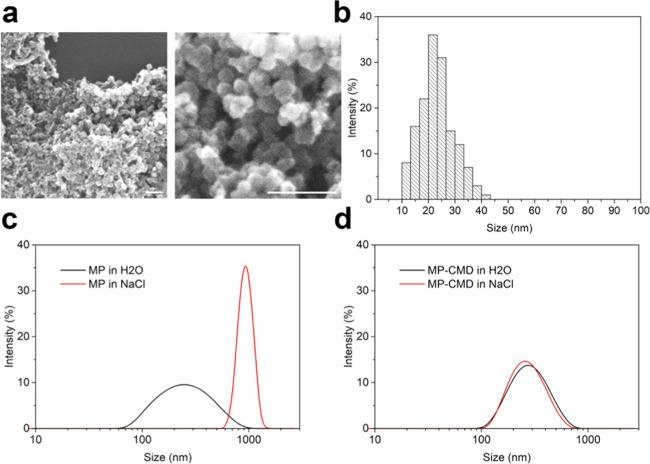

Targeted drug delivery is one of the most intriguing and challenging issues in modern biomedicine. For active targeting, full-size IgG molecules (150 kDa) are usually used. Recent studies have revealed that small artificial polypeptide scaffolds such as DARPins (14 kDa) and affibodies (8 kDa) are much more promising tools for drug delivery due to their small size, artificial nature, low immunogenicity, and many other properties. However, there is no comparative information on the targeting abilities of scaffold polypeptides, which should be taken into account when developing drug delivery systems (DDSs). The present work is the first comprehensive study on the comparison of the effectiveness of different HER2-targeting proteins within the architecture of nanoparticles. Namely, we synthesized trimodal nanoparticles: magnetic, fluorescent, and directed toward HER2 oncomarker on cancer cells. The magnetic particles (MPs) were covalently modified with (i) full-size IgG, 150 kDa, (ii) DARPin_G3, 14 kDa, and (iii) affibody Z, 8 kDa. We showed that the number of DARPin_G3 and affibody Z molecules conjugated to the nanoparticle surface are 10 and 40 times higher, respectively, than the corresponding value for trastuzumab. Using the methods of magnetic particle quantification (MPQ)-cytometry and confocal microscopy, we showed that all types of the obtained magnetic conjugates specifically labeled HER2-overexpressing cells. Namely, we demonstrated that particle binding to HER2-positive cells is 1113 ± 39 fg/cell for MPtrastuzumab, 1431 ± 186 fg/cell for MPZ, and 625±21 fg/cell for MP*DARPin_G3, which are 2.77, 2.75, and 2.30 times higher than the corresponding values for control HER2-negative cells. Thus, we showed that the smallest HER2-recognizing polypeptide affibody Z is more effective in terms of specificity and selectivity in nanoparticle-mediated cell labeling.

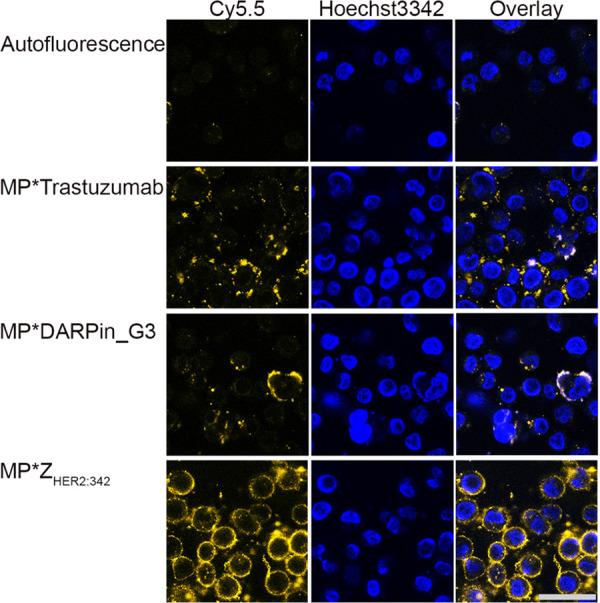

靶向药物递送是现代生物医学中最具吸引力和挑战性的问题之一。对于主动靶向,通常使用全尺寸的IgG分子(150 kDa)。最近的研究表明,诸如DARPins(14 kDa)和亲和体(8 kDa)等小型人工多肽支架由于其尺寸小、人工合成性质、低免疫原性以及许多其他特性,是更有前景的药物递送工具。然而,关于支架多肽靶向能力的比较信息却没有,而在开发药物递送系统(DDSs)时这是需要考虑的因素。目前的工作是首次对纳米颗粒结构内不同HER2靶向蛋白的有效性进行的全面比较研究。也就是说,我们合成了三模态纳米颗粒:磁性、荧光且针对癌细胞上的HER2肿瘤标志物。磁性颗粒(MPs)用(i)全尺寸IgG(150 kDa)、(ii)DARPin_G3(14 kDa)和(iii)亲和体Z(8 kDa)进行了共价修饰。我们发现,与纳米颗粒表面缀合的DARPin_G3和亲和体Z分子数量分别比曲妥珠单抗的相应值高10倍和40倍。使用磁性颗粒定量(MPQ)-细胞术和共聚焦显微镜方法,我们表明所有类型的所得磁性缀合物都能特异性标记HER2过表达细胞。具体而言,我们证明MP曲妥珠单抗与HER2阳性细胞的结合量为1113±39 fg/细胞,MPZ为1431±186 fg/细胞,MP*DARPin_G3为625±21 fg/细胞,分别是对照HER2阴性细胞相应值的2.77倍、2.75倍和2.30倍。因此,我们表明最小的识别HER2的多肽亲和体Z在纳米颗粒介导的细胞标记的特异性和选择性方面更有效。
