• 文献检索
  • 文档翻译
  • 深度研究
  • 学术资讯
  • Suppr Zotero 插件Zotero 插件
  • 邀请有礼
  • 套餐&价格
  • 历史记录
应用&插件
Suppr Zotero 插件Zotero 插件浏览器插件Mac 客户端Windows 客户端微信小程序
定价
高级版会员购买积分包购买API积分包
服务
文献检索文档翻译深度研究API 文档MCP 服务
关于我们
关于 Suppr公司介绍联系我们用户协议隐私条款
关注我们

Suppr 超能文献

核心技术专利:CN118964589B侵权必究
粤ICP备2023148730 号-1Suppr @ 2026

文献检索

告别复杂PubMed语法,用中文像聊天一样搜索,搜遍4000万医学文献。AI智能推荐,让科研检索更轻松。

立即免费搜索

文件翻译

保留排版,准确专业,支持PDF/Word/PPT等文件格式,支持 12+语言互译。

免费翻译文档

深度研究

AI帮你快速写综述,25分钟生成高质量综述,智能提取关键信息,辅助科研写作。

立即免费体验

耐热合金NiAl-Cr-Co-(La、Mo、Zr、Ta、Re)的结构与性能及增材制造用粉末的制备

Structure and Properties of Heat-Resistant Alloys NiAl-Cr-Co- ( La, Mo, Zr, Ta, Re) and Fabrication of Powders for Additive Manufacturing.

作者信息

Sanin Vitaliy V, Kaplansky Yury Yu, Aheiev Maksym I, Levashov Evgeny A, Petrzhik Mikhail I, Bychkova Marina Ya, Samokhin Andrey V, Fadeev Andrey A, Sanin Vladimir N

机构信息

Scientific-Educational Center of SHS, National University of Science and Technology "MISiS", Leninsky Prospect 4, 119049 Moscow, Russia.

A.A. Baikov Institute of Metallurgy and Materials Science, Russian Academy of Sciences, Leninsky Prospect 49, 119334 Moscow, Russia.

出版信息

Materials (Basel). 2021 Jun 8;14(12):3144. doi: 10.3390/ma14123144.

DOI:10.3390/ma14123144
PMID:34201081
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC8229370/
Abstract

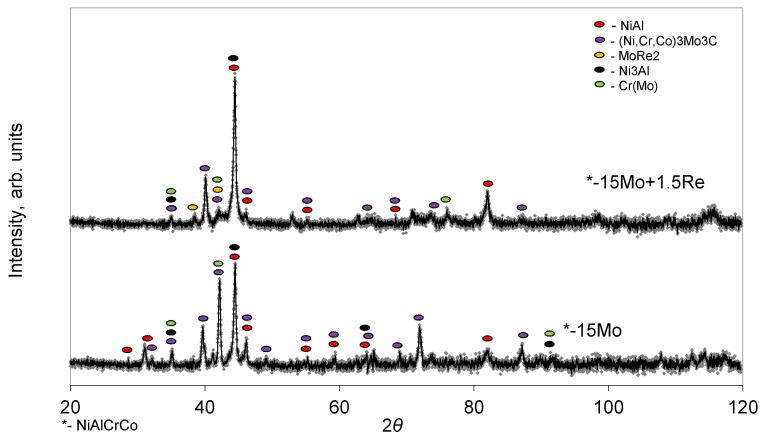

The NiAl-Cr-Co- alloys were produced by centrifugal self-propagating high-temperature synthesis (SHS) casting. The effects of dopants = La, Mo, Zr, Ta, and Re on combustion, as well as the phase composition, structure, and properties of the resulting cast alloys, have been studied. The greatest improvement in overall properties was achieved when the alloys were co-doped with 15% Mo and 1.5% Re. By forming a ductile matrix, molybdenum enhanced strength characteristics up to the values σ = 1604 ± 80 MPa, σ = 1520 ± 80 MPa, and ε = 0.79%, while annealing at T = 1250 ℃ and t = 180 min improved strength characteristics to the following level: σ = 1800 ± 80 MPa, σ = 1670 ± 80 MPa, and ε = 1.58%. Rhenium modified the structure of the alloy and further improved its properties. The mechanical properties of the NiAl, ZrNi, NiTa, (Al,Ta)Ni, and Al(Re,Ni) phases were determined by nanoindentation. The three-level hierarchical structure of the NiAl-Cr-Co+15%Mo alloy was identified. The optimal plasma treatment regime was identified, and narrow-fraction powders (fraction 8-27 µm) characterized by 95% degree of spheroidization and the content of nanosized fraction <5% were obtained.

摘要

通过离心自蔓延高温合成(SHS)铸造法制备了NiAl-Cr-Co合金。研究了掺杂剂(La、Mo、Zr、Ta和Re)对燃烧的影响,以及所得铸造合金的相组成、结构和性能。当合金同时掺杂15%的Mo和1.5%的Re时,综合性能得到了最大程度的改善。通过形成韧性基体,钼将强度特性提高到σ = 1604 ± 80 MPa、σ = 1520 ± 80 MPa和ε = 0.79%,而在T = 1250℃和t = 180 min下退火后,强度特性提高到以下水平:σ = 1800 ± 80 MPa、σ = 1670 ± 80 MPa和ε = 1.58%。铼改变了合金的结构并进一步改善了其性能。通过纳米压痕法测定了NiAl、ZrNi、NiTa、(Al,Ta)Ni和Al(Re,Ni)相的力学性能。确定了NiAl-Cr-Co+15%Mo合金的三级层次结构。确定了最佳的等离子体处理工艺,并获得了球化度为95%且纳米级分数含量<5%的窄粒度粉末(粒度为8-27 µm)。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0c1e/8229370/0ab6f5cb6fdd/materials-14-03144-g023.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0c1e/8229370/1a2f2f258aca/materials-14-03144-g001.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0c1e/8229370/e8ec681c0e96/materials-14-03144-g002.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0c1e/8229370/77b4bc9b6181/materials-14-03144-g003.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0c1e/8229370/09411d079e3b/materials-14-03144-g004.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0c1e/8229370/db39e0f62deb/materials-14-03144-g005.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0c1e/8229370/c01500aa055d/materials-14-03144-g006.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0c1e/8229370/79e87cf7e36e/materials-14-03144-g007.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0c1e/8229370/7c376cf90045/materials-14-03144-g008.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0c1e/8229370/ea9d7de8830c/materials-14-03144-g009.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0c1e/8229370/71d2eb9dd995/materials-14-03144-g010.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0c1e/8229370/b1eb5158e6d1/materials-14-03144-g011.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0c1e/8229370/5b4cde74271e/materials-14-03144-g012.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0c1e/8229370/a53b1613a788/materials-14-03144-g013.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0c1e/8229370/b7f14c41aa0e/materials-14-03144-g014.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0c1e/8229370/9f5bb86ba452/materials-14-03144-g015.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0c1e/8229370/617a540035df/materials-14-03144-g016.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0c1e/8229370/9e56899eb63e/materials-14-03144-g017.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0c1e/8229370/fe7b3d5685d9/materials-14-03144-g018.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0c1e/8229370/0bfd1c3f66f2/materials-14-03144-g019.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0c1e/8229370/d7efab16d779/materials-14-03144-g020.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0c1e/8229370/f3a4e5b7ebff/materials-14-03144-g021.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0c1e/8229370/a28704d596e1/materials-14-03144-g022.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0c1e/8229370/0ab6f5cb6fdd/materials-14-03144-g023.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0c1e/8229370/1a2f2f258aca/materials-14-03144-g001.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0c1e/8229370/e8ec681c0e96/materials-14-03144-g002.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0c1e/8229370/77b4bc9b6181/materials-14-03144-g003.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0c1e/8229370/09411d079e3b/materials-14-03144-g004.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0c1e/8229370/db39e0f62deb/materials-14-03144-g005.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0c1e/8229370/c01500aa055d/materials-14-03144-g006.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0c1e/8229370/79e87cf7e36e/materials-14-03144-g007.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0c1e/8229370/7c376cf90045/materials-14-03144-g008.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0c1e/8229370/ea9d7de8830c/materials-14-03144-g009.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0c1e/8229370/71d2eb9dd995/materials-14-03144-g010.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0c1e/8229370/b1eb5158e6d1/materials-14-03144-g011.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0c1e/8229370/5b4cde74271e/materials-14-03144-g012.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0c1e/8229370/a53b1613a788/materials-14-03144-g013.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0c1e/8229370/b7f14c41aa0e/materials-14-03144-g014.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0c1e/8229370/9f5bb86ba452/materials-14-03144-g015.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0c1e/8229370/617a540035df/materials-14-03144-g016.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0c1e/8229370/9e56899eb63e/materials-14-03144-g017.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0c1e/8229370/fe7b3d5685d9/materials-14-03144-g018.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0c1e/8229370/0bfd1c3f66f2/materials-14-03144-g019.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0c1e/8229370/d7efab16d779/materials-14-03144-g020.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0c1e/8229370/f3a4e5b7ebff/materials-14-03144-g021.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0c1e/8229370/a28704d596e1/materials-14-03144-g022.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0c1e/8229370/0ab6f5cb6fdd/materials-14-03144-g023.jpg

相似文献

1
Structure and Properties of Heat-Resistant Alloys NiAl-Cr-Co- ( La, Mo, Zr, Ta, Re) and Fabrication of Powders for Additive Manufacturing.耐热合金NiAl-Cr-Co-(La、Mo、Zr、Ta、Re)的结构与性能及增材制造用粉末的制备
Materials (Basel). 2021 Jun 8;14(12):3144. doi: 10.3390/ma14123144.
2
Influence of Strengthening Elements and Heat Treatment on Microstructure and Fracture Toughness of NiAl-Cr(Mo)-Based Eutectic Alloy.强化元素及热处理对NiAl-Cr(Mo)基共晶合金微观结构和断裂韧性的影响
Materials (Basel). 2023 Apr 25;16(9):3362. doi: 10.3390/ma16093362.
3
The Effect of Dopants on Structure Formation and Properties of Cast SHS Alloys Based on Nickel Monoaluminide.掺杂剂对基于单铝化镍的铸造自蔓延高温合成合金的结构形成及性能的影响
Materials (Basel). 2023 Apr 22;16(9):3299. doi: 10.3390/ma16093299.
4
Effect of Ti Content on the Microstructure and High-Temperature Creep Property of Cast Fe-Ni-Based Alloys with High-Al Content.钛含量对高铝铸造铁镍基合金微观组织和高温蠕变性能的影响
Materials (Basel). 2020 Dec 26;14(1):82. doi: 10.3390/ma14010082.
5
Favorable modulation of osteoblast cellular activity on Zr-modified Co-Cr-Mo alloy: The significant impact of zirconium on cell-substrate interactions.Zr 改性 Co-Cr-Mo 合金对成骨细胞活性的有利调节:Zr 对细胞-基底相互作用的显著影响。
J Biomed Mater Res B Appl Biomater. 2020 May;108(4):1518-1526. doi: 10.1002/jbm.b.34499. Epub 2019 Oct 17.
6
Design and fabrication of Ti-Zr-Hf-Cr-Mo and Ti-Zr-Hf-Co-Cr-Mo high-entropy alloys as metallic biomaterials.Ti-Zr-Hf-Cr-Mo 和 Ti-Zr-Hf-Co-Cr-Mo 高熵合金作为金属生物材料的设计与制备。
Mater Sci Eng C Mater Biol Appl. 2020 Feb;107:110322. doi: 10.1016/j.msec.2019.110322. Epub 2019 Oct 22.
7
Effects of chromium and nitrogen content on the microstructures and mechanical properties of as-cast Co-Cr-Mo alloys for dental applications.铬和氮含量对牙科用铸态 Co-Cr-Mo 合金显微组织和力学性能的影响。
Acta Biomater. 2012 Jul;8(7):2856-62. doi: 10.1016/j.actbio.2012.03.024. Epub 2012 Mar 17.
8
Effects of phase constitution on magnetic susceptibility and mechanical properties of Zr-rich Zr-Mo alloys.富锆 Zr-Mo 合金的相组成对磁化率和力学性能的影响。
Acta Biomater. 2011 Dec;7(12):4259-66. doi: 10.1016/j.actbio.2011.07.005. Epub 2011 Jul 19.
9
Effect of PFM Firing Cycles on the Mechanical Properties, Phase Composition, and Microstructure of Nickel-Chromium Alloy.烤瓷熔附金属全冠烧结次数对镍铬合金力学性能、相组成及微观结构的影响
J Prosthodont. 2015 Dec;24(8):634-41. doi: 10.1111/jopr.12328. Epub 2015 Jul 27.
10
Effects of the rare earth element lanthanum on the metal-ceramic bond strength of dental casting Co-Cr alloys.稀土元素镧对牙科铸造 Co-Cr 合金金属-陶瓷结合强度的影响。
J Prosthet Dent. 2019 May;121(5):848-857. doi: 10.1016/j.prosdent.2018.08.017. Epub 2019 Jan 16.

引用本文的文献

1
The Effect of Dopants on Structure Formation and Properties of Cast SHS Alloys Based on Nickel Monoaluminide.掺杂剂对基于单铝化镍的铸造自蔓延高温合成合金的结构形成及性能的影响
Materials (Basel). 2023 Apr 22;16(9):3299. doi: 10.3390/ma16093299.
