Department of Radiology and Research Institute of Radiology, University of Ulsan College of Medicine, Asan Medical Center, Seoul, Korea.
Inflammatory Bowel Disease Center, University of Ulsan College of Medicine, Asan Medical Center, Seoul, Korea.
Korean J Radiol. 2021 Oct;22(10):1640-1649. doi: 10.3348/kjr.2020.1420. Epub 2021 Jul 14.
Flattening in the anteroposterior direction (AP flattening) of the terminal ileum (TI) or sigmoid colon (SC) lying across the psoas muscle, on magnetic resonance enterography (MRE), might mimic bowel inflammation in the coronal view. This study investigated the prevalence of AP flattening and the factors associated with its development.

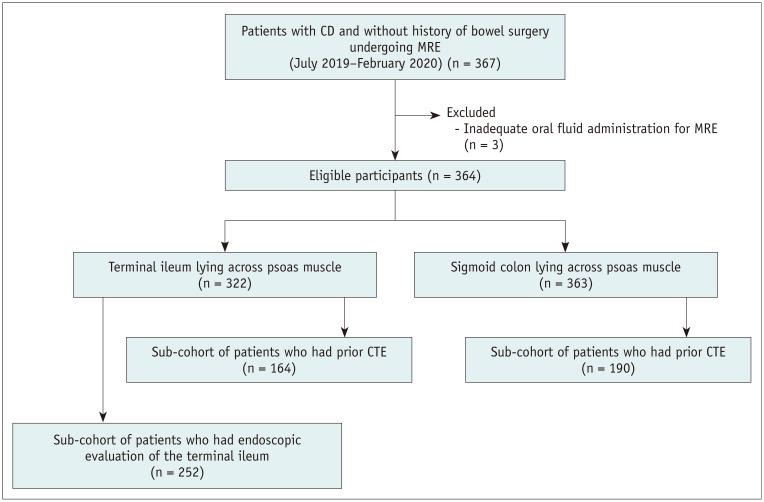

A total of 364 surgery-naïve patients with Crohn's disease (CD) who had undergone MRE were retrospectively reviewed. AP flattening was defined as a luminal collapse in the anteroposterior direction, with a bowel width in the axial plane < 1/4 of the normal diameter without reduction of bowel width in coronal images. The prevalence of AP flattening of the TI and SC on MRE in patients with bowel segments lying across the psoas muscle was determined. We further compared the rate of AP flattening between MRE and computed tomography enterography (CTE) in a subcohort of patients with prior CTE. The factors associated with AP flattening were analyzed using multivariable logistic regression in a subcohort of patients with endoscopic findings of TI.
Three hundred and twenty-two and 363 patients, respectively, had TI and SC lying across the psoas muscle. The prevalence of AP flattening on MRE was 7.5% (24/322) in TI and 5.2% (19/363) in SC. The prevalences were significantly higher on MRE than on CTE in both the TI (7.3% [12/164] vs. 0.6% [1/164]; = 0.003) and SC (5.8% [11/190] vs. 1.6% [3/190]; = 0.039). AP flattening of the TI was independently and strongly associated with the absence of CD inflammation on endoscopy, with an adjusted odds ratio of 0.066 ( = 0.003) for the presence versus the absence (reference) of inflammation.
AP flattening of the TI or SC lying across the psoas muscle was uncommon and predominantly observed on MRE of the bowel without CD inflammation.
磁共振肠造影术(MRE)上,位于腰大肌表面的末端回肠(TI)或乙状结肠(SC)在前后方向上变平(AP 变平)可能会在冠状面模拟肠炎症。本研究调查了 AP 变平的发生率以及与 AP 变平发展相关的因素。
回顾性分析了 364 例未经手术的克罗恩病(CD)患者的 MRE 资料,这些患者均接受过 MRE 检查。AP 变平定义为在轴向平面上,肠腔在前后方向上塌陷,肠腔宽度<正常直径的 1/4,而冠状图像上的肠腔宽度没有缩小。确定 MRE 上位于腰大肌表面的肠段中 TI 和 SC 的 AP 变平的发生率。我们进一步比较了 MRE 和计算机断层肠造影术(CTE)在一组有先前 CTE 病史的患者中的 AP 变平率。在一组有 TI 内镜检查结果的患者中,使用多变量逻辑回归分析与 AP 变平相关的因素。
分别有 322 例和 363 例患者的 TI 和 SC 位于腰大肌表面。MRE 上 TI 的 AP 变平发生率为 7.5%(24/322),SC 为 5.2%(19/363)。在 TI(7.3%[12/164]与 0.6%[1/164]; = 0.003)和 SC(5.8%[11/190]与 1.6%[3/190]; = 0.039)中,MRE 上的发生率明显高于 CTE。TI 的 AP 变平与内镜检查时 CD 炎症的缺失独立且密切相关,存在炎症时的调整优势比为 0.066( = 0.003)。
位于腰大肌表面的 TI 或 SC 的 AP 变平并不常见,并且主要发生在无 CD 炎症的 MRE 肠检查中。
