Can Achilles tendon xanthoma be distinguished from Achilles tendinopathy using Dixon method MRI? A cross-sectional exploratory study.

BACKGROUND

Familial hypercholesterolemia is a genetic condition characterized by life-long elevations of plasma low-density lipoprotein cholesterol. In addition to life-threatening cardiovascular complications, intratendinous cholesterol deposits (xanthomas) can lead to pain and tendon thickening, particularly in the Achilles. Clinical detection of xanthomas currently relies upon visual assessment and palpation, or ultrasound-based measures of tendon thickening or echotexture. Misdiagnosis of xanthoma can delay the commencement of potentially life-saving lipid-lowering therapy. Our primary purpose was to determine whether analysis of separated fat and water magnetic resonance images may be able to differentiate between xanthomatic and nonxanthomatic Achilles tendons through quantification of intratendinous fat content. The main hypothesis was that Achilles tendon xanthomas will demonstrate greater lipid content than Achilles tendinopathy or healthy control tendons.

METHODS

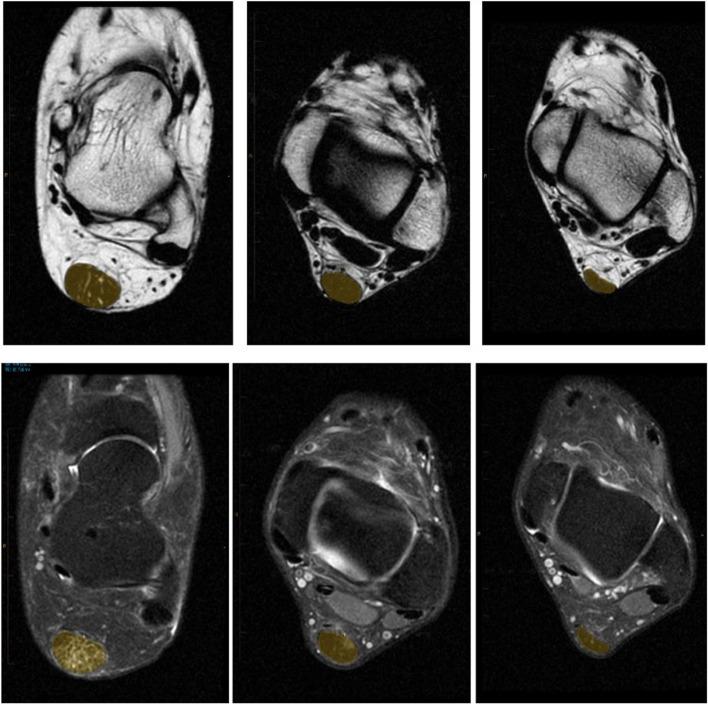

Bilateral MRI scans of Achilles tendons from 30 participants (n = 10 Achilles tendon xanthoma, n = 10 Achilles overuse tendinopathy, n = 10 healthy controls) were analyzed for total lipid content using the Dixon method of fat and water signal separation. Secondary outcome measures included tendon water content, as well as ultrasound characterization of tendon tissue organization and thickness.

RESULTS

Fat content was greater in Achilles tendon xanthomas compared to the tendinopathy (p < 0.0001) and control groups (p < 0.0001). Water content was also greater in Achilles tendon xanthomas compared to the tendinopathy (p < 0.0001) and control groups (p = 0.0002). Ultrasound tissue characterization revealed worse tissue organization in Achilles tendon xanthoma tendons compared to Achilles tendinopathy (p < 0.05) but demonstrated largely overlapping distributions. Achilles tendon xanthoma tendons were, on average, significantly thicker than the tendons of the other two groups (p < 0.01 and p < 0.001, respectively).

CONCLUSION

MRI-derived measures of Achilles tendon fat content may be able to distinguish xanthomas from control and tendinopathic tissue. Dixon method MRI warrants further evaluation in an adequately powered study to develop and test clinically relevant diagnostic thresholds.
