Development of Custom Anatomic Healing Abutment Based on Cone-Beam Computer Tomography Measurement on Human Teeth Cross-Section.

INTRODUCTION

Nowadays, the final success of implantation is not only based on obtaining osseointegration of the implant but is also determined by achieving a satisfactory aesthetic effect of the soft tissues surrounding the implant, which can be defined as an aesthetic integration. The process of obtaining this aesthetic integration already begins at the stage of placing the healing abutment, which allows us to obtain the emergence profile necessary for our prosthetic reconstruction.

MATERIALS AND METHODS

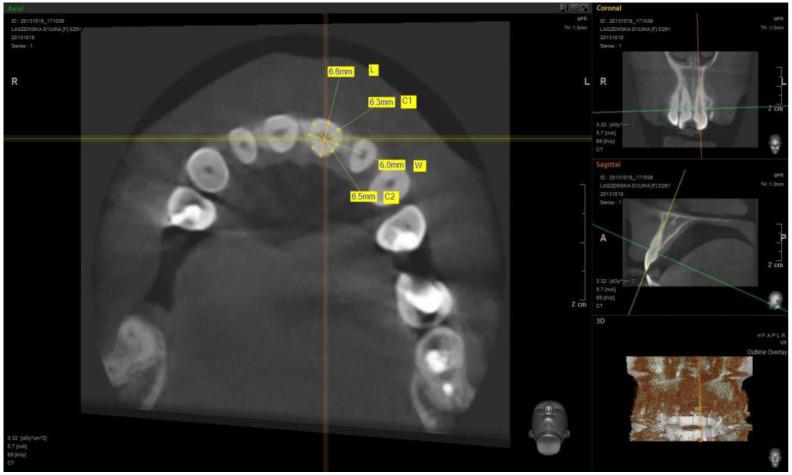

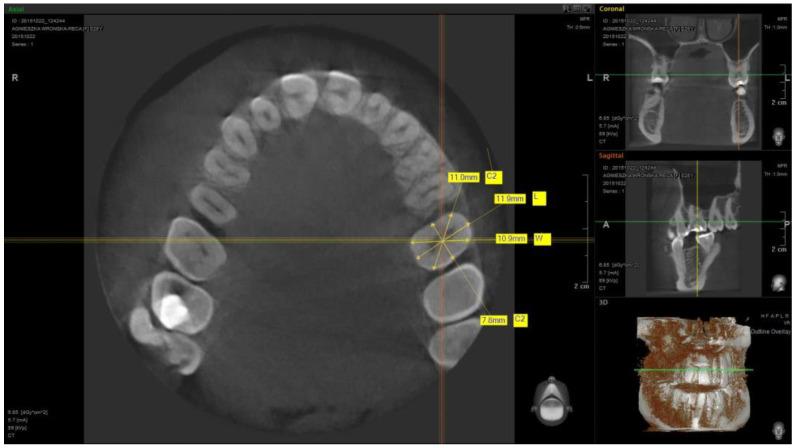

The study used cone-beam computer tomography (CBCT) scans of 51 patients. The measurements of the maxillary teeth (central incisor, lateral incisor, canine, first premolar, and first molar) were performed from cross-sections of the individual teeth at the transition zone to design a custom anatomic healing abutment milled from zirconium and luted to the non-index Ti-base.

RESULTS

The obtained results allowed to design and create the shape of the anatomic healing abutment.

CONCLUSIONS

The use of laboratory-produced anatomical healing abutments is possible and may allow to obtain the desired and planned emergence profiles of prosthetic restorations. In addition, it might be a method of reducing work time at the dental chair but further clinical trials are necessary.
