Analysis of the sagittal root angle and its correlation with hard and soft tissue indices in anterior teeth for immediate implant evaluation: a retrospective study.

BACKGROUND

To assess the root angle characteristics of maxillary incisors, and to analyze the relationship between the root angle and other implant-related anatomical indices to use the sagittal root angle as an index for immediate implant evaluation and design.

METHODS

A random sample consisting of 400 cone-beam computed tomography (CBCT) images and 65 maxillary plaster models were selected for the present study. CBCT and stereolithography (STL) scan images were imported as DICOM files into coDiagnostiX software for matching the hard and soft tissue. The angle between the long axis of the anterior tooth and the corresponding alveolar bone and implant-related hard and soft tissue indices were measured in the sagittal section. Descriptive statistics, frequency analysis, multi-level comparisons, and correlation analyses were performed.

RESULTS

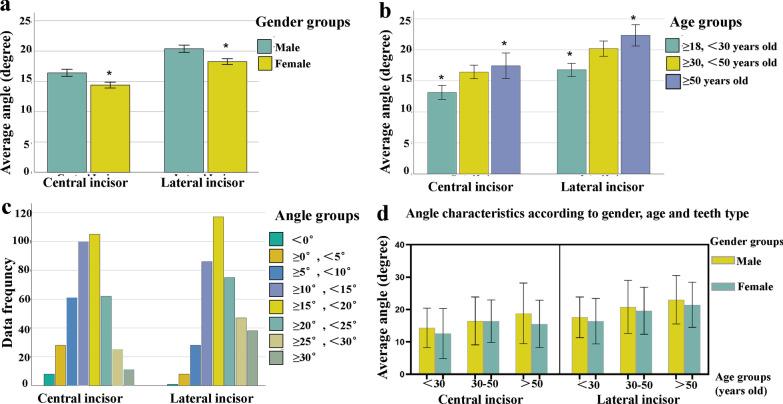

The average sagittal root angles were 15° at the central incisor and 19° at the lateral incisor. The root angle in males was significantly larger than that in females, and increased with age. The largest angle, 22.35°, was found in the lateral incisors of the oldest (> 50 years old) male group. The root angle was found to correlate with coronal buccal bone thickness, coronal palatal bone thickness, apical buccal bone thickness, palatal bone thickness, and the below apex bone thickness.

CONCLUSIONS

The sagittal root angle could reflect the distribution of other implant-related anatomical indices, which may provide additional reference for the evaluation of immediate implant placement.
