周期性弯曲和摩擦对纺织信号线特性阻抗的影响。

Effect of Cyclical Bending and Rubbing on the Characteristic Impedance of Textile Signal Lines.

作者信息

Leśnikowski Jacek

机构信息

Faculty of Material Technologies and Textile Design, Institute of Architecture of Textiles, Lodz University of Technology, Żeromskiego 116, 90-543 Lodz, Poland.

出版信息

Materials (Basel). 2021 Oct 12;14(20):6013. doi: 10.3390/ma14206013.

DOI:10.3390/ma14206013

PMID:34683605

原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC8537305/

Abstract

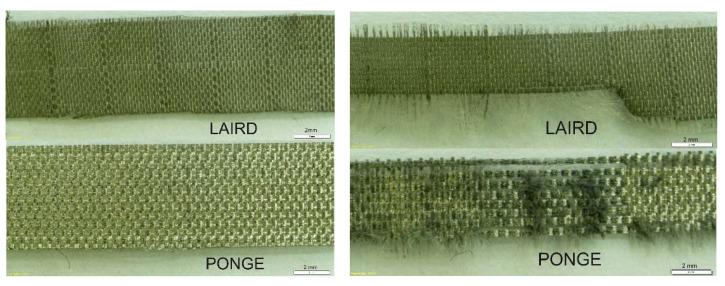

This article presents the results of tests on the resistance of new textile signal lines to bending and abrasion. The textile signal lines are one of the most important parts of the electronic system incorporated into modern smart garments. The main application of the lines presented in this article is the transmission of digital signals or high-frequency analogue signals. The tested lines were made of fabrics with sewn paths made of electro-conductive fabric. The construction of a measuring stand for testing the electric properties of textile transmission lines is shown. This article presents the effects of bending and abrasion on the resistance of electro-conductive strips, which are one of the elements of textile signal lines. The article also presents the effects of bending and abrasion on the characteristic impedance of constructed textile signal lines. Statistical analysis of the obtained results is also presented.

摘要

本文介绍了新型纺织信号线的抗弯曲和耐磨测试结果。纺织信号线是现代智能服装所集成电子系统的最重要部件之一。本文所述线路的主要应用是数字信号或高频模拟信号的传输。测试线路由带有导电织物缝制路径的织物制成。展示了用于测试纺织传输线电性能的测量台的构造。本文介绍了弯曲和磨损对作为纺织信号线元件之一的导电条电阻的影响。文章还介绍了弯曲和磨损对所构建纺织信号线特性阻抗的影响。此外还给出了所得结果的统计分析。
