Franceschi Pietro, Nicoletti Catia, Bonetto Ruggero, Bonchio Marcella, Natali Mirco, Dell'Amico Luca, Sartorel Andrea
Nano and Molecular Catalysis Laboratory, Department of Chemical Sciences, University of Padova, Padova, Italy.
Department of Chemical, Pharmaceutical and Agricultural Sciences (DOCPAS), University of Ferrara, and Centro Interuniversitario per La Conversione Chimica Dell'Energia Solare (SOLARCHEM), Ferrara, Italy.
Front Chem. 2021 Nov 24;9:783993. doi: 10.3389/fchem.2021.783993. eCollection 2021.

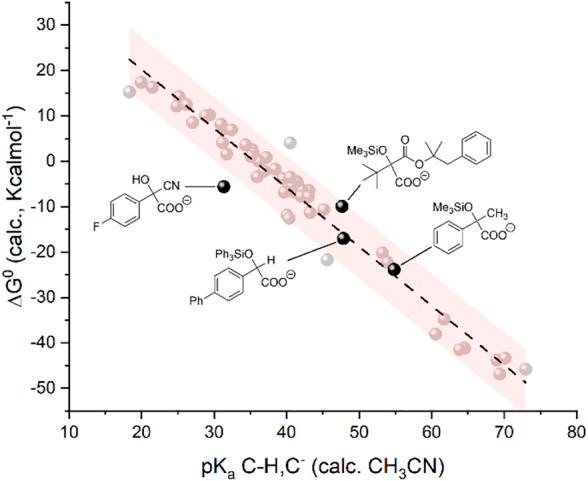

The utilization of carbon dioxide as a raw material represents nowadays an appealing strategy in the renewable energy, organic synthesis, and green chemistry fields. Besides reduction strategies, carbon dioxide can be exploited as a single-carbon-atom building block through its fixation into organic scaffolds with the formation of new C-C bonds (carboxylation processes). In this case, activation of the organic substrate is commonly required, upon formation of a carbanion C, being sufficiently reactive toward the addition of CO. However, the prediction of the reactivity of C with CO is often problematic with the process being possibly associated with unfavorable thermodynamics. In this contribution, we present a thermodynamic analysis combined with density functional theory calculations on 50 organic molecules enabling the achievement of a linear correlation of the standard free energy (ΔG) of the carboxylation reaction with the basicity of the carbanion C, expressed as the pK of the CH/C couple. The analysis identifies a threshold pK of ca 36 (in CHCN) for the CH/C couple, above which the ΔG of the carboxylation reaction is negative and indicative of a favorable process. We then apply the model to a real case involving electrochemical carboxylation of flavone and chalcone as model compounds of α,β-unsaturated ketones. Carboxylation occurs in the β-position from the doubly reduced dianion intermediates of flavone and chalcone (calculated ΔG of carboxylation in β = -12.8 and -20.0 Kcalmol for flavone and chalcone, respectively, associated with pK values for the conjugate acids of 50.6 and 51.8, respectively). Conversely, the one-electron reduced radical anions are not reactive toward carboxylation (ΔG > +20 Kcalmol for both substrates, in either α or β position, consistent with pK of the conjugate acids < 18.5). For all the possible intermediates, the plot of calculated ΔG of carboxylation vs. pK is consistent with the linear correlation model developed. The application of the ΔG vs. pK correlation is finally discussed for alternative reaction mechanisms and for carboxylation of other C=C and C=O double bonds. These results offer a new mechanistic tool for the interpretation of the reactivity of CO with organic intermediates.

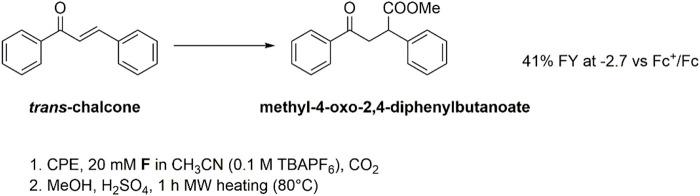

如今,将二氧化碳用作原料在可再生能源、有机合成和绿色化学领域是一种颇具吸引力的策略。除了还原策略外,二氧化碳还可通过固定到有机骨架中形成新的C-C键(羧化过程),作为单碳原子构建单元加以利用。在这种情况下,通常需要在形成碳负离子C后激活有机底物,使其对CO的加成具有足够的反应活性。然而,预测C与CO的反应活性往往存在问题,该过程可能与不利的热力学相关。在本论文中,我们结合密度泛函理论计算对50种有机分子进行了热力学分析,实现了羧化反应的标准自由能(ΔG)与碳负离子C的碱性之间的线性相关性,碳负离子C的碱性以CH/C偶合的pK表示。分析确定了CH/C偶合在CHCN中的阈值pK约为36,高于此值,羧化反应的ΔG为负,表明该过程有利。然后,我们将该模型应用于一个实际案例,涉及黄酮和查耳酮作为α,β-不饱和酮的模型化合物的电化学羧化。羧化发生在黄酮和查耳酮双还原二价阴离子中间体的β位(黄酮和查耳酮在β位羧化的计算ΔG分别为-12.8和-20.0 Kcal/mol,共轭酸的pK值分别为50.6和51.8)。相反,单电子还原的自由基阴离子对羧化没有反应活性(两种底物在α或β位的ΔG均> +20 Kcal/mol,与共轭酸的pK < 18.5一致)。对于所有可能的中间体,羧化计算ΔG与pK的关系图与所建立的线性相关模型一致。最后讨论了ΔG与pK相关性在替代反应机理以及其他C=C和C=O双键羧化中的应用。这些结果为解释CO与有机中间体的反应活性提供了一种新的机理工具。
