Wang Kang, Ma Simin, Xue Xiaoyang, Li Tong, Sha Simiao, Ren Xiaodong, Zhang Jingru, Lu Hui, Ma Jinfu, Guo Shengwei, Liu Yucheng, Feng Jiangshan, Najar Adel, Liu Shengzhong Frank
Key Laboratory of Powder Material & Advanced Ceramics International Scientific & Technological Cooperation Base of Industrial Waste Recycling and Advanced Materials, Ningxia Research Center of Silicon Target and Silicon-Carbon Negative Materials Engineering Technology, School of Materials Science & Engineering, North Minzu University, Yinchuan, 750021, P. R. China.
Dalian National Laboratory for Clean Energy, iChEM, Dalian Institute of Chemical Physics, Chinese Academy of Sciences, Dalian, Liaoning, 116023, China.
Adv Sci (Weinh). 2022 Mar;9(9):e2105103. doi: 10.1002/advs.202105103. Epub 2022 Jan 24.

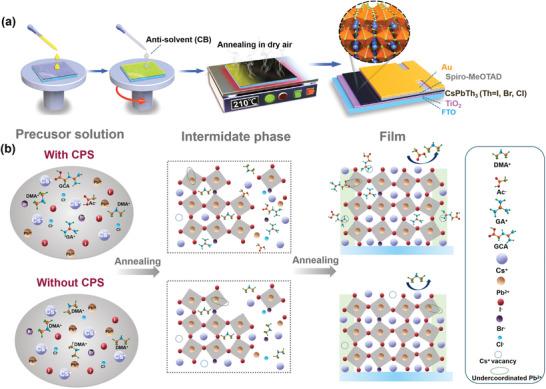

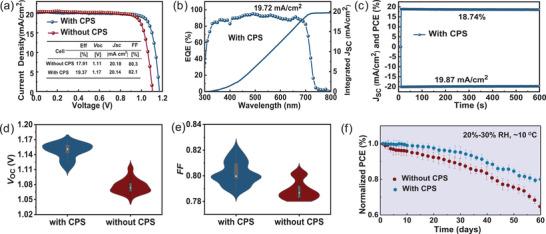

The distorted lead iodide octahedra of all-inorganic perovskite based on triple halide-mixed CsPb(I Br Cl ) framework have made a tremendous breakthrough in its black phase stability and photovoltaic efficiency. However, their performance still suffers from severe ion migration, trap-induced nonradiative recombination, and black phase instability due to lower tolerance factor and high total energy. Here, a combinational passivation strategy to suppress ion migration and reduce traps both on the surface and in the bulk of the CsPhTh perovskite film is developed, resulting in improved power conversion efficiency (PCE) to as high as 19.37%. The involvement of guanidinium (GA) into the CsPhTh perovskite bulk film and glycocyamine (GCA) passivation on the perovskite surface and grain boundary synergistically enlarge the tolerance factor and suppress the trap state density. In addition, the acetate anion as a nucleating agent significantly improves the thermodynamic stability of GA-doped CsPbTh film through the slight distortion of PbI octahedra. The decreased nonradiative recombination loss translates to a high fill factor of 82.1% and open-circuit voltage (V ) of 1.17 V. Furthermore, bare CsPbTh perovskite solar cells without any encapsulation retain 80% of its initial PCE value after being stored for one month under ambient conditions.
基于三卤化物混合CsPb(I Br Cl )框架的全无机钙钛矿的扭曲碘化铅八面体在其黑相稳定性和光伏效率方面取得了巨大突破。然而,由于较低的容忍因子和高总能量,它们的性能仍然受到严重的离子迁移、陷阱诱导的非辐射复合以及黑相不稳定性的影响。在此,开发了一种组合钝化策略,以抑制CsPhTh钙钛矿薄膜表面和体相中的离子迁移并减少陷阱,从而将功率转换效率(PCE)提高到高达19.37%。胍盐(GA)掺入CsPhTh钙钛矿体相薄膜以及甘氨酰胺(GCA)对钙钛矿表面和晶界的钝化协同扩大了容忍因子并抑制了陷阱态密度。此外,乙酸根阴离子作为成核剂通过PbI八面体的轻微扭曲显著提高了GA掺杂的CsPbTh薄膜的热力学稳定性。非辐射复合损失的降低转化为82.1%的高填充因子和1.17 V的开路电压(V )。此外,未进行任何封装的裸CsPbTh钙钛矿太阳能电池在环境条件下储存一个月后仍保留其初始PCE值的80%。
