Shishatskiy Sergey, Makrushin Vladimir, Levin Ivan, Merten Petra, Matson Samira, Khotimskiy Valeriy
Helmholtz-Zentrum Hereon, Institute of Membrane Research, Max-Planck-Str. 1, 21502 Geesthacht, Germany.
A.V. Topchiev Institute of Petrochemical Synthesis of Russian Academy of Sciences, Leninsky Prospect 29, 119991 Moscow, Russia.
Polymers (Basel). 2022 Jan 24;14(3):462. doi: 10.3390/polym14030462.

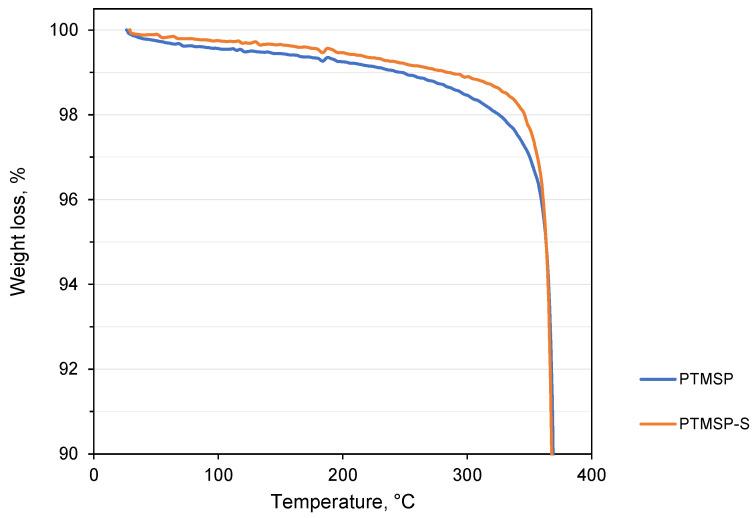

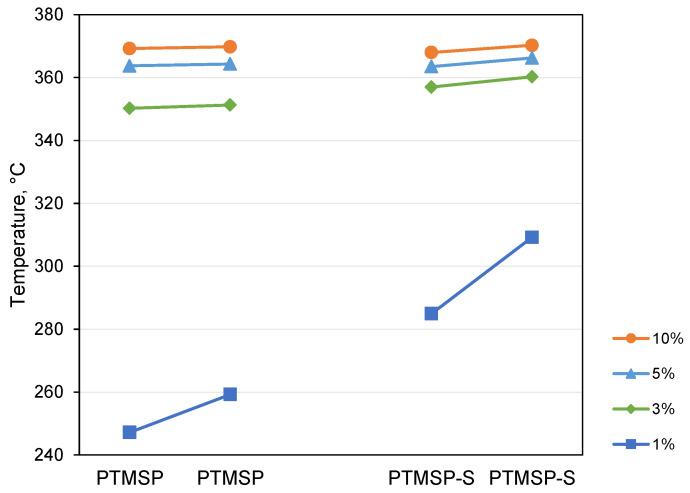

The effect of phenolic antioxidant Irganox 1076 on the structure and gas permeation behavior of poly(1-trimethylsilyl-1-propyne) (PTMSP) was investigated. Isotropic films as well as thin film composite membranes (TFCM) from pure PTMSP and with added antioxidant (0.02 wt%) were prepared. PTMSP with antioxidant has a significantly higher thermal degradation stability in comparison to pure polymer. The thermal annealing of isotropic films of PTMSP with antioxidant was carried out at 140 °C. It revealed the stability of gas permeation properties for a minimum of up to 500 h of total heating time after a modest permeation values decrease in the first 48 h. X-ray diffraction data indicate a decrease in interchain distances during the heat treatment of isotropic films and indicate an increase in the packing density of macromolecules during thermally activated relaxation. Isotropic films and TFCMs from pure PTMSP and with antioxidant stabilizer were tested under conditions of constant O and N flow. The physical aging of thick and composite PTMSP membranes point out the necessity of thermal annealing for obtaining PTMSP-based membranes with predictable properties.
研究了酚类抗氧化剂抗氧剂1076对聚(1-三甲基硅基-1-丙炔)(PTMSP)结构和气体渗透行为的影响。制备了纯PTMSP以及添加了抗氧化剂(0.02 wt%)的各向同性膜和复合薄膜(TFCM)。与纯聚合物相比,含有抗氧化剂的PTMSP具有显著更高的热降解稳定性。含抗氧化剂的PTMSP各向同性膜在140°C下进行热退火。结果表明,在最初48小时渗透率适度下降后,气体渗透性能在总加热时间至少长达500小时内保持稳定。X射线衍射数据表明,各向同性膜热处理过程中链间距离减小,表明热活化松弛过程中大分子堆积密度增加。对纯PTMSP以及含有抗氧化稳定剂的各向同性膜和TFCM在恒定氧气和氮气流量条件下进行了测试。厚PTMSP膜和复合PTMSP膜的物理老化表明,为了获得具有可预测性能的基于PTMSP的膜,热退火是必要的。
