Yeow Yen Ling, Wu Jiansha, Wang Xiao, Winteringham Louise, Feindel Kirk W, Tirnitz-Parker Janina E E, Leedman Peter J, Ganss Ruth, Hamzah Juliana
Harry Perkins Institute of Medical Research, Centre for Medical Research, QEII Medical Centre, The University of Western Australia, Nedlands, WA, Australia.
Centre for Microscopy, Characterisation and Analysis, The University of Western Australia, Nedlands, WA, Australia.
Front Oncol. 2022 Feb 22;12:837234. doi: 10.3389/fonc.2022.837234. eCollection 2022.

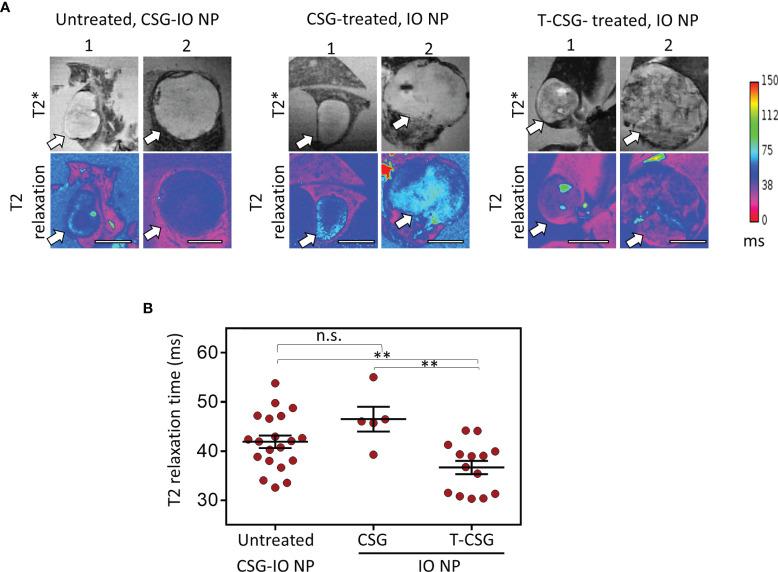

Improving tumor access for drug delivery is challenging, particularly in poorly perfused tumors. The availability of functional tumor blood vessels for systemic access is vital to allow drugs or imaging agents to accumulate in the tumor parenchyma. We subjected mice engineered to develop hepatocellular carcinoma (HCC), to treatment with tumor necrosis factor alpha (TNFα) conjugated to a CSG peptide (CSGRRSSKC). CSG binds to the laminin-nidogen-1 complex of the extracellular matrix (ECM) in HCC. When produced as a recombinant fusion protein, the TNFα-CSG functions as an ECM depletion agent an immune-mediated mechanism to improve tumor perfusion. Tumor perfusion in HCC was dramatically improved after daily intravenous (i.v.) injection of 5 µg TNFα-CSG for five consecutive days. Following treatment, we assessed the tumor accessibility to accumulate an imaging agent, superparamagnetic iron-oxide nanoparticles (IO-NP). Here, we compared the passive delivery of an i.v. dose of IO-NP in HCC following ECM depletion after TNFα-CSG treatment, to the intratumoral accumulation of a comparable dose of CSG-targeted IO-NP in HCC with intact ECM. Magnetic resonance imaging (MRI) T-weighted scans and T relaxation times indicate that when the tumor ECM is intact, HCC was resistant to the intratumoral uptake of IO-NP, even when the particles were tagged with CSG peptide. In contrast, pre-treatment with TNFα-CSG resulted in the highest IO-NP accumulation in tumors. These findings suggest poorly perfused HCC may be resistant to molecular-targeted imaging agents including CSG-IO-NP. We demonstrate that specific ECM depletion using TNFα-CSG improves nanoparticle delivery into poorly perfused tumors such as HCC.
改善肿瘤给药途径具有挑战性,尤其是在灌注不良的肿瘤中。功能性肿瘤血管对于全身给药的可用性对于使药物或成像剂在肿瘤实质中积累至关重要。我们对经过基因工程改造以发展肝细胞癌(HCC)的小鼠进行了治疗,使用与CSG肽(CSGRRSSKC)偶联的肿瘤坏死因子α(TNFα)。CSG与HCC细胞外基质(ECM)的层粘连蛋白 - 巢蛋白 - 1复合物结合。当作为重组融合蛋白产生时,TNFα - CSG作为一种ECM消耗剂,通过免疫介导机制改善肿瘤灌注。在连续五天每天静脉内(i.v.)注射5μg TNFα - CSG后,HCC中的肿瘤灌注得到显著改善。治疗后,我们评估了肿瘤对成像剂超顺磁性氧化铁纳米颗粒(IO - NP)积累的可及性。在这里,我们比较了TNFα - CSG治疗后ECM耗竭情况下HCC中静脉注射剂量的IO - NP的被动递送,与具有完整ECM的HCC中同等剂量的CSG靶向IO - NP的瘤内积累。磁共振成像(MRI)T加权扫描和T弛豫时间表明,当肿瘤ECM完整时,HCC对IO - NP的瘤内摄取具有抗性,即使颗粒用CSG肽标记也是如此。相比之下,用TNFα - CSG预处理导致肿瘤中IO - NP的积累最高。这些发现表明灌注不良的HCC可能对包括CSG - IO - NP在内的分子靶向成像剂具有抗性。我们证明使用TNFα - CSG特异性耗尽ECM可改善纳米颗粒向灌注不良的肿瘤(如HCC)中的递送。
