N.N. Blokhin National Medical Research Center of Oncology of the Ministry of Public Health of the Russian Federation (N.N. Blokhin NMRCO), Kashirskoe Shosse, 23, 115478 Moscow, Russia.
Department of Medical Nanobiotechnologies, Pirogov Russian National Research Medical University, Ostrovityanova, 1, 117997 Moscow, Russia.
Int J Mol Sci. 2022 Mar 18;23(6):3297. doi: 10.3390/ijms23063297.

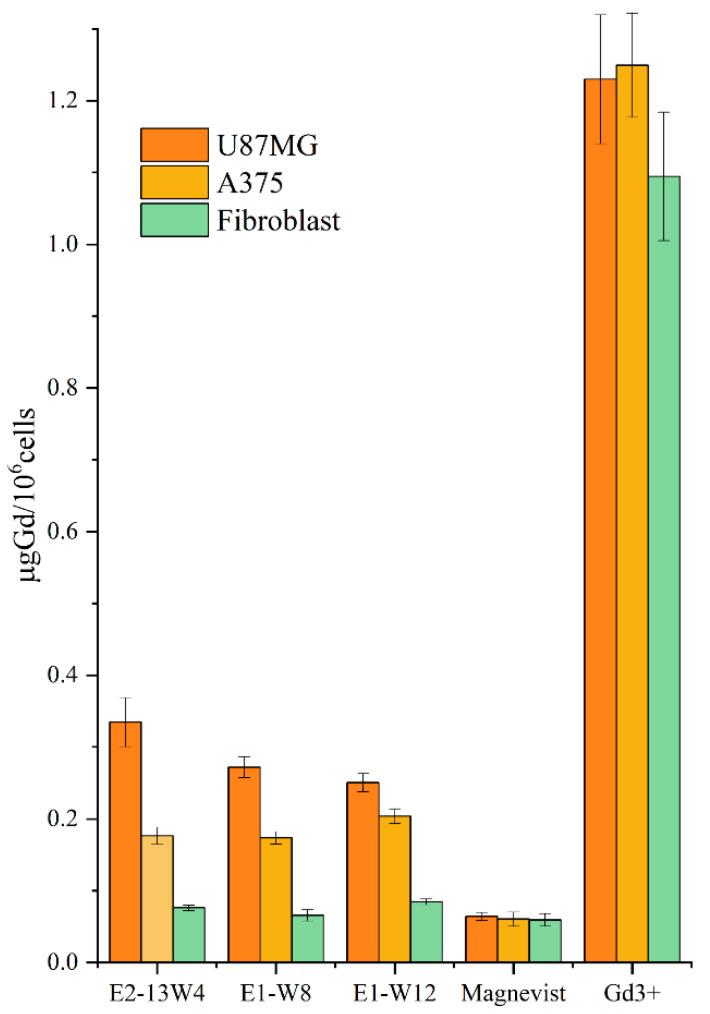

Three artificial proteins that bind the gadolinium ion (Gd3+) with tumour-specific ligands were de novo engineered and tested as candidate drugs for binary radiotherapy (BRT) and contrast agents for magnetic resonance imaging (MRI). Gd3+-binding modules were derived from calmodulin. They were joined with elastin-like polypeptide (ELP) repeats from human elastin to form the four-centre Gd3+-binding domain (4MBS-domain) that further was combined with F3 peptide (a ligand of nucleolin, a tumour marker) to form the F3-W4 block. The F3-W4 block was taken alone (E2-13W4 protein), as two repeats (E1-W8) and as three repeats (E1-W12). Each protein was supplemented with three copies of the RGD motif (a ligand of integrin αvβ3) and green fluorescent protein (GFP). In contrast to Magnevist (a Gd-containing contrast agent), the proteins exhibited three to four times higher accumulation in U87MG glioma and A375 melanoma cell lines than in normal fibroblasts. The proteins remained for >24 h in tumours induced by Ca755 adenocarcinoma in C57BL/6 mice. They exhibited stability towards blood proteases and only accumulated in the liver and kidney. The technological advantages of using the engineered proteins as a basis for developing efficient and non-toxic agents for early diagnosis of tumours by MRI as well as part of BRT were demonstrated.
三种人工蛋白与肿瘤特异性配体结合钆离子(Gd3+),被重新设计并测试作为二元放射治疗(BRT)候选药物和磁共振成像(MRI)造影剂。Gd3+结合模块来源于钙调蛋白。它们与来自人弹性蛋白的弹性蛋白样多肽(ELP)重复序列结合,形成四中心 Gd3+结合域(4MBS 域),进一步与 F3 肽(核仁素的配体,一种肿瘤标志物)结合形成 F3-W4 块。F3-W4 块单独使用(E2-13W4 蛋白),或作为两个重复(E1-W8)或三个重复(E1-W12)使用。每个蛋白都补充了三个 RGD 基序(整合素 αvβ3 的配体)和绿色荧光蛋白(GFP)。与 Magnevist(一种含 Gd 的造影剂)相比,这些蛋白在 U87MG 神经胶质瘤和 A375 黑色素瘤细胞系中的积累量是正常成纤维细胞的 3 到 4 倍。在 C57BL/6 小鼠的 Ca755 腺癌诱导的肿瘤中,这些蛋白能在体内停留超过 24 小时。它们对血液蛋白酶稳定,仅在肝脏和肾脏中积累。展示了使用工程蛋白作为开发高效、无毒的 MRI 早期肿瘤诊断剂以及 BRT 一部分的技术优势。
