Construction of Al-Mg-Zn Interatomic Potential and the Prediction of Favored Glass Formation Compositions and Associated Driving Forces.

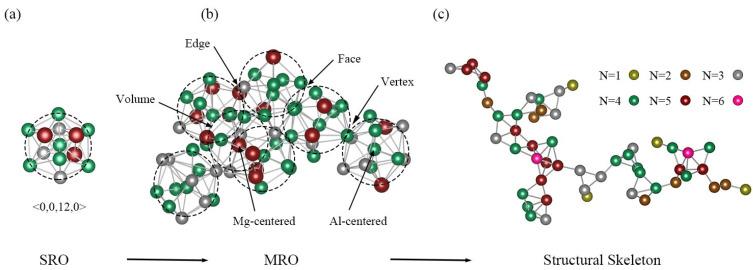

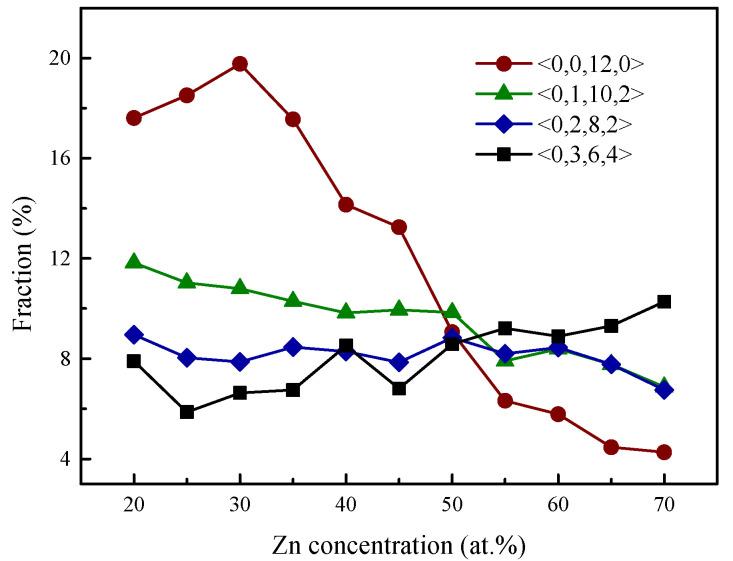

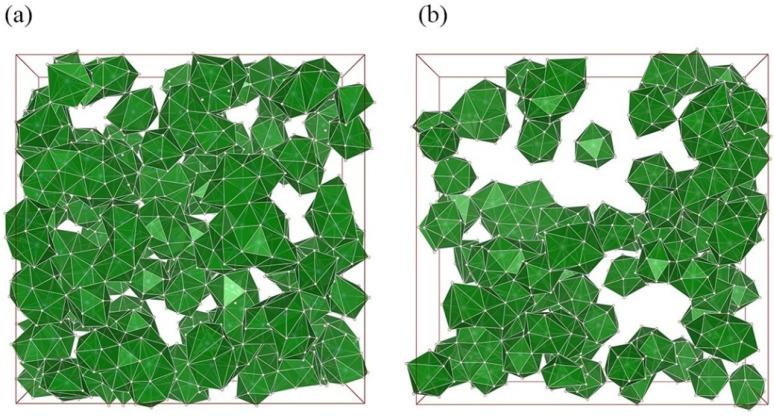

An interatomic potential is constructed for the ternary Al-Mg-Zn system under a proposed modified tight-binding scheme, and it is verified to be realistic. Applying this ternary potential, atomistic simulations predict an intrinsic glass formation region in the composition triangle, within which the glassy alloys are more energetically favored in comparison with their solid solution counterparts. Kinetically, the amorphization driving force of each disordered state is derived to correlate the readiness of its glass-forming ability in practice; thus, an optimal stoichiometry region is pinpointed around AlMgZn. Furthermore, by monitoring the structural evolution for various (AlMg)Zn (x = 30, 50, and 70 at.%) compositions, the optimized-glass-former AlMgZn is characterized by both the highest degree of icosahedral ordering and the highest phase stability among the investigated compositions. In addition, the icosahedral network in AlMgZn exhibits a much higher cross-linking degree than that in AlMgZn. This suggests that there is a certain correlation between the icosahedral ordering and the larger glass-forming ability of AlMgZn. Our results have significant implications in clarifying glass formation and hierarchical atomic structures, and in designing new ternary Al-Mg-Zn glassy alloys with high GFA.
