Experimental Research on Microwave Ignition and Combustion Characteristics of ADN-Based Liquid Propellant.

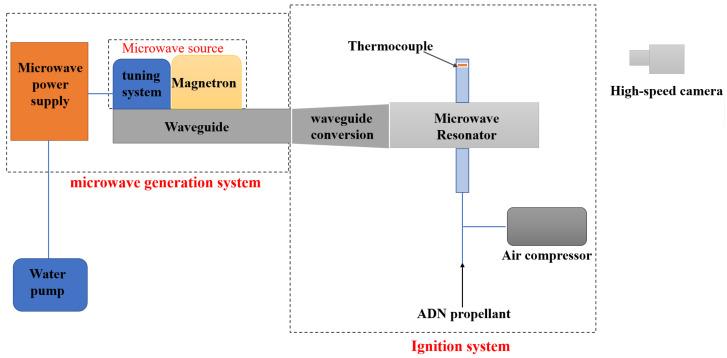

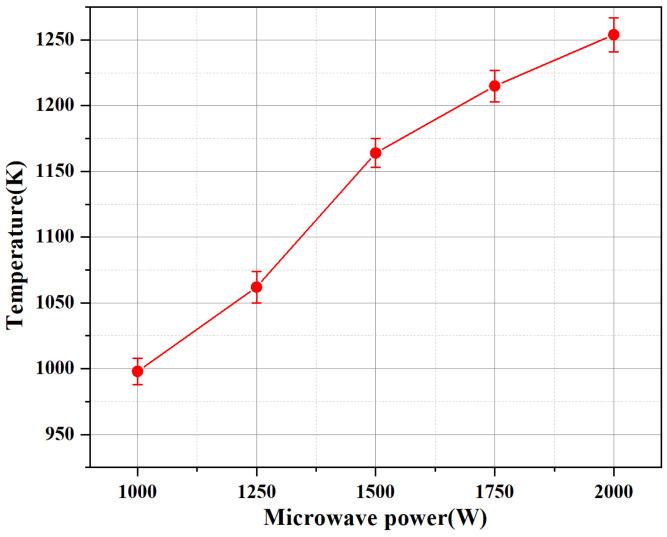

Microwave ignition has attracted much attention due to its advantages of reliable ignition, large ignition area and cold-start capability. In this paper, the experimental method is used to explore the ignition ability of the microwave device to ADN-based liquid propellant. Additionally, we discuss the influence of the inlet power and rate of propellant injected into the ignition system on the height of the combustion jet and the combustion temperature. In the experiment, a microwave-assisted ignition system was established based on a special microwave resonant cavity. The liquid propellant and working gas were sprayed into the resonator cavity through the hollow straight tube beneath the resonant cavity. The test results show that the device can ignite the propellant under the condition of 800 W input power, which proves the feasibility of the microwave ignition device for ADN-based liquid propellant. Microwave power has some influence on the flame spray height at the initial stage of combustion. The spray height at 2000 W is increased by 55.7% in comparison to 1000 W. In the stable combustion stage, the input power has a very significant increase in the average temperature of the flame, which is increased by 25%. The combustion is relatively better when the propellant flow rate is 30 mL/min, and the height of the flame spray increases by 25.2%. The increase in throughput did not have a significant impact on the flame temperature.
