• 文献检索
  • 文档翻译
  • 深度研究
  • 学术资讯
  • Suppr Zotero 插件Zotero 插件
  • 邀请有礼
  • 套餐&价格
  • 历史记录
应用&插件
Suppr Zotero 插件Zotero 插件浏览器插件Mac 客户端Windows 客户端微信小程序
定价
高级版会员购买积分包购买API积分包
服务
文献检索文档翻译深度研究API 文档MCP 服务
关于我们
关于 Suppr公司介绍联系我们用户协议隐私条款
关注我们

Suppr 超能文献

核心技术专利：CN118964589B侵权必究
粤ICP备2023148730 号-1Suppr @ 2026

文献检索

告别复杂PubMed语法，用中文像聊天一样搜索，搜遍4000万医学文献。AI智能推荐，让科研检索更轻松。

立即免费搜索

文件翻译

保留排版，准确专业，支持PDF/Word/PPT等文件格式，支持 12+语言互译。

免费翻译文档

深度研究

AI帮你快速写综述，25分钟生成高质量综述，智能提取关键信息，辅助科研写作。

立即免费体验

Enhanced Oxidation Resistance of Ultrafine-Grain Microstructure AlCoCrFeNi High Entropy Alloy.

作者信息

Garg Mayank, Grewal Harpreet S, Sharma Ram K, Arora Harpreet S

机构信息

Surface Science and Tribology Lab, Department of Mechanical Engineering, Shiv Nadar University, Greater Noida, Uttar Pradesh 201314, India.

Centre for Inter-Disciplinary Research and Innovation, University of Petroleum and Energy Studies, Bidholi Via-Prem Nagar, Dehradun, Uttarakhand 248007, India.

出版信息

ACS Omega. 2022 Apr 7;7(15):12589-12600. doi: 10.1021/acsomega.1c06014. eCollection 2022 Apr 19.

DOI:10.1021/acsomega.1c06014
PMID:35474797
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC9026100/
Abstract

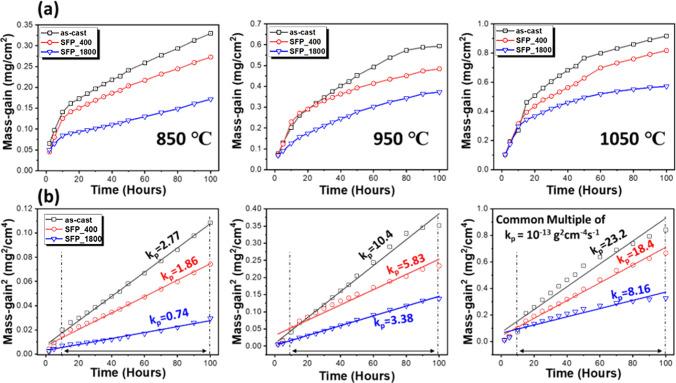

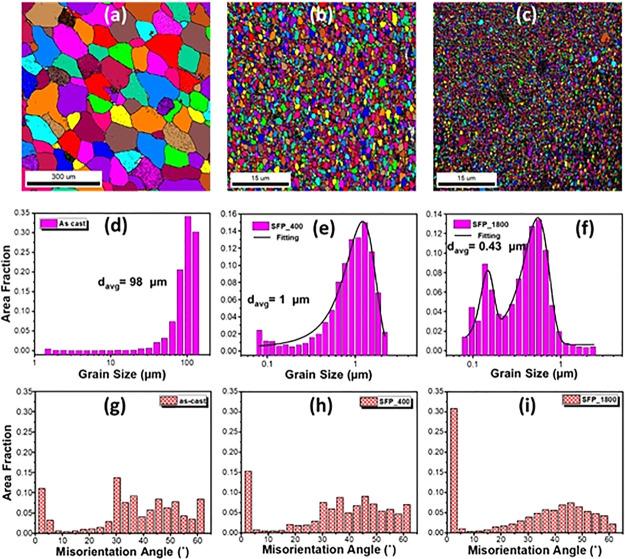

This work investigates the effect of ultrafine-grain microstructure on the oxidation behavior of AlCoCrFeNi high entropy alloy (HEA). The ultrafine-grain microstructure is obtained using stationary friction processing performed at two different rotational speeds, 400 and 1800 rpm, for 5 min duration. Processed samples demonstrate high depth of refinement (DOR) and ultrafine grain size (0.43-1 μm) at high rotational speeds along with significant phase transformations from BCC/B2 to FCC microstructure. Further, surface free energy of the ultrafine-grain microstructure is enhanced up to 35%. Oxidation kinetics of the ultrafine-grained sample is decelerated up to 12-48% in a temperature range of 850-1050 °C for a duration of 100 h. Chromia and alumina were the predominant oxides formed in almost all the samples oxidized at elevated temperature. In addition, spinel Co(Cr,Fe)O/Fe(Co,Cr)O formation is also detected in the unprocessed oxidized samples. Processed samples rich in grain boundaries (GBs) promote internal oxidation to form Al-rich inner oxides. The enhanced oxidation resistance of the processed samples is attributed to the microstructural refinement and homogenization resulting in the formation of protective chromia followed by Al-rich inner oxides.

摘要
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/7c47/9026100/536b7c19a297/ao1c06014_0012.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/7c47/9026100/2176f3645953/ao1c06014_0001.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/7c47/9026100/701b26909ba7/ao1c06014_0002.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/7c47/9026100/f11f64540e2e/ao1c06014_0003.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/7c47/9026100/ebb0d452f14d/ao1c06014_0004.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/7c47/9026100/cc0d291cd5c4/ao1c06014_0005.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/7c47/9026100/abd89fcfd287/ao1c06014_0006.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/7c47/9026100/5d9e81f23bd9/ao1c06014_0007.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/7c47/9026100/bc947aba9fbe/ao1c06014_0008.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/7c47/9026100/59db4f3c25ce/ao1c06014_0009.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/7c47/9026100/ed24acba4f78/ao1c06014_0010.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/7c47/9026100/a17ddbd4e25b/ao1c06014_0011.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/7c47/9026100/536b7c19a297/ao1c06014_0012.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/7c47/9026100/2176f3645953/ao1c06014_0001.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/7c47/9026100/701b26909ba7/ao1c06014_0002.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/7c47/9026100/f11f64540e2e/ao1c06014_0003.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/7c47/9026100/ebb0d452f14d/ao1c06014_0004.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/7c47/9026100/cc0d291cd5c4/ao1c06014_0005.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/7c47/9026100/abd89fcfd287/ao1c06014_0006.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/7c47/9026100/5d9e81f23bd9/ao1c06014_0007.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/7c47/9026100/bc947aba9fbe/ao1c06014_0008.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/7c47/9026100/59db4f3c25ce/ao1c06014_0009.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/7c47/9026100/ed24acba4f78/ao1c06014_0010.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/7c47/9026100/a17ddbd4e25b/ao1c06014_0011.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/7c47/9026100/536b7c19a297/ao1c06014_0012.jpg

相似文献

1
Enhanced Oxidation Resistance of Ultrafine-Grain Microstructure AlCoCrFeNi High Entropy Alloy.
ACS Omega. 2022 Apr 7;7(15):12589-12600. doi: 10.1021/acsomega.1c06014. eCollection 2022 Apr 19.
2
Improvement of Pitting-Corrosion Resistance of Ultrafine-Grained 7475 Al Alloy by Aging.时效处理对超细晶粒7475铝合金耐点蚀性能的改善
Materials (Basel). 2022 Jan 4;15(1):360. doi: 10.3390/ma15010360.
3
Modeling Oxidation of AlCoCrFeNi High-Entropy Alloy Using Stochastic Cellular Automata.用随机元胞自动机对AlCoCrFeNi高熵合金的氧化进行建模
Entropy (Basel). 2022 Sep 8;24(9):1263. doi: 10.3390/e24091263.
4
Electrochemical and hot corrosion behaviour of steel reinforced with AlSiBeTiV high entropy alloy using friction stir processing.采用搅拌摩擦加工的AlSiBeTiV高熵合金增强钢的电化学和热腐蚀行为
Sci Technol Adv Mater. 2024 Feb 19;25(1):2320083. doi: 10.1080/14686996.2024.2320083. eCollection 2024.
5
Effects of Heat Treatment on the Interface Microstructure and Mechanical Properties of Friction-Stir-Processed AlCoCrFeNi/A356 Composites.热处理对搅拌摩擦加工的AlCoCrFeNi/A356复合材料界面微观结构及力学性能的影响
Materials (Basel). 2023 Mar 10;16(6):2234. doi: 10.3390/ma16062234.
6
Data supporting the hierarchically activated deformation mechanisms to form ultra-fine grain microstructure in carbon containing FeMnCoCr twinning induced plasticity high entropy alloy.支持在含碳的FeMnCoCr孪生诱导塑性高熵合金中形成超细晶粒微观结构的分层激活变形机制的数据。
Data Brief. 2022 Mar 12;42:108052. doi: 10.1016/j.dib.2022.108052. eCollection 2022 Jun.
7
High Temperature Oxidation Behavior of an Equimolar Cr-Mn-Fe-Co High-Entropy Alloy.等摩尔Cr-Mn-Fe-Co高熵合金的高温氧化行为
Materials (Basel). 2021 Jul 30;14(15):4259. doi: 10.3390/ma14154259.
8
Initial Oxidation Behavior of AlCoCrFeNi High-Entropy Coating Produced by Atmospheric Plasma Spraying in the Range of 650 °C to 1000 °C.大气等离子喷涂制备的AlCoCrFeNi高熵涂层在650℃至1000℃范围内的初始氧化行为
Materials (Basel). 2024 Jan 23;17(3):550. doi: 10.3390/ma17030550.
9
Microstructure, Mechanical Properties and Wear Behaviors of Ultrafine-Grain WC-Based Cermets with Different Binder Phases Fabricated by Spark Plasma Sintering.火花等离子烧结制备的具有不同粘结相的超细晶粒WC基金属陶瓷的微观结构、力学性能及磨损行为
Materials (Basel). 2024 Jan 29;17(3):659. doi: 10.3390/ma17030659.
10
Effect of AlO (x = 0, 1, 2, and 3 vol.%) in CrFeCuMnNi-x High-Entropy Alloy Matrix Composites on Their Microstructure and Mechanical and Wear Performance.AlO（x = 0、1、2和3体积百分比）在CrFeCuMnNi - x高熵合金基复合材料中对其微观结构、力学性能和耐磨性能的影响。
Materials (Basel). 2023 May 11;16(10):3672. doi: 10.3390/ma16103672.

引用本文的文献

1
Production and Characterization of Fine-Grained Multielement AlCoxCrFeNi (x = 1, 0.75, 0.5) Alloys for High-Temperature Applications.用于高温应用的细晶多元素AlCoxCrFeNi（x = 1, 0.75, 0.5）合金的制备与表征
Materials (Basel). 2024 Oct 6;17(19):4897. doi: 10.3390/ma17194897.
2
Modeling Oxidation of AlCoCrFeNi High-Entropy Alloy Using Stochastic Cellular Automata.用随机元胞自动机对AlCoCrFeNi高熵合金的氧化进行建模
Entropy (Basel). 2022 Sep 8;24(9):1263. doi: 10.3390/e24091263.

本文引用的文献

1
High Tensile Ductility and Strength in Dual-phase Bimodal Steel through Stationary Friction Stir Processing.通过静态搅拌摩擦加工实现双相双峰钢的高拉伸延展性和强度。
Sci Rep. 2019 Feb 13;9(1):1972. doi: 10.1038/s41598-019-38707-3.
