以木质素为原料水热合成氮掺杂碳量子点用于甲醛测定

Hydrothermal synthesis of nitrogen-doped carbon quantum dots from lignin for formaldehyde determination.

作者信息

Wang Ying, Liu Yushan, Zhou Jin, Yue Jinquan, Xu Mingcong, An Bang, Ma Chunhui, Li Wei, Liu Shouxin

机构信息

Key Laboratory of Bio-based Material Science &Technology, Northeast Forestry University, Ministry of Education Harbin 150040 P. R. China

出版信息

RSC Adv. 2021 Sep 1;11(47):29178-29185. doi: 10.1039/d1ra05370a.

Abstract

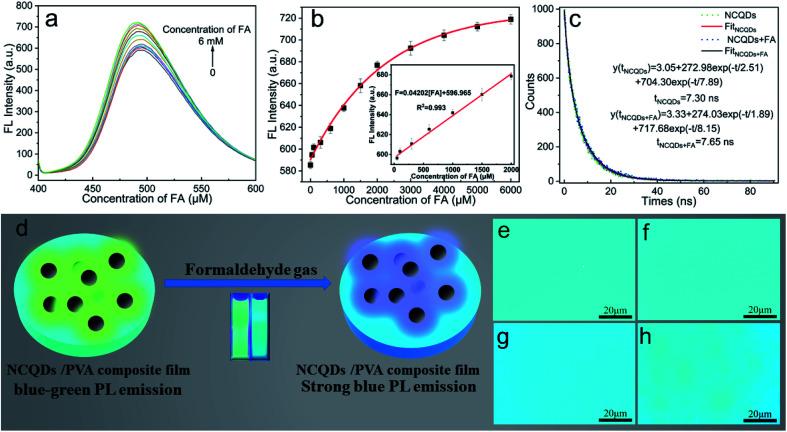

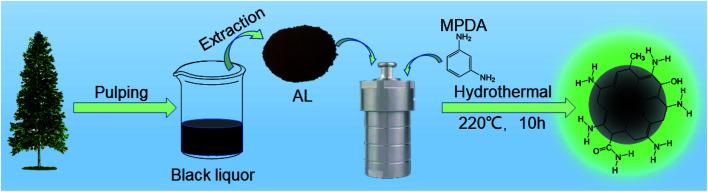

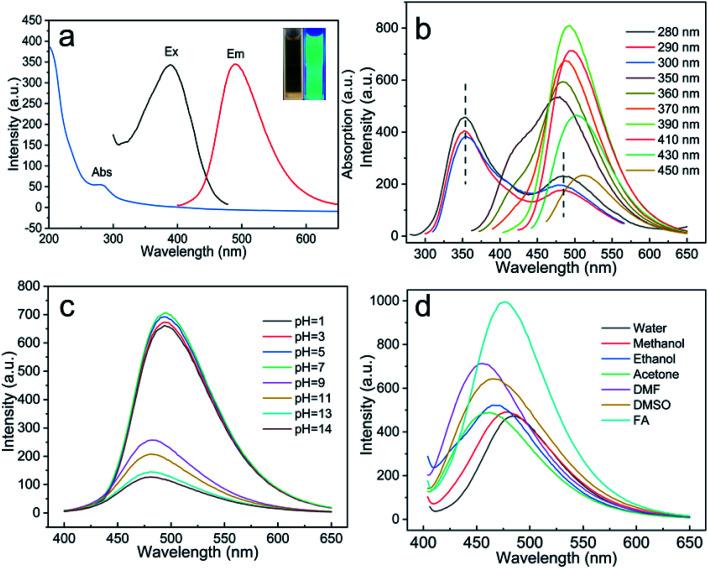

This work assessed the fabrication of nitrogen-doped CQDs (NCQDs) from alkali lignin (AL) obtained from spruce, representing a green, low-cost biomass generated by the pulp and biorefinery industries. The AL was found to retain its original lignin skeleton and could be used to produce NCQDs with excellent photoluminescence properties by one-pot hydrothermal treatment of AL and -phenylenediamine. These NCQDs exhibited blue-green fluorescence (FL) with excitation/emission of 390/490 nm under optimal conditions. The NCQDs showed pH and excitation wavelength-dependent FL emission behaviors. On the basis of the exceptional selective response of these NCQDs to specific solvents, we developed a FL probe for the detection of formaldehyde (FA). The FL intensity of NCQDs was found to be directly proportional to the concentration of FA in the range of 0.05 to 2 mM ( = 0.993), with a detection limit of 4.64 µM (based on 3/). A composite film comprising NCQDs with poly(vinyl alcohol) was found to act as a sensor with a good FL response to FA gas. When exposed to gaseous FA, this film exhibited increased FL intensity and transitioned from blue-green to blue. A mechanism is proposed in which the NCQDs react rapidly with FA to generate Schiff bases that result in enhanced FL emission and the observed blue shift in color.

摘要

这项工作评估了以云杉中提取的碱木质素(AL)制备氮掺杂碳量子点(NCQDs)的方法,云杉是制浆和生物精炼工业产生的一种绿色、低成本生物质。研究发现,AL保留了其原始木质素骨架,通过对AL和对苯二胺进行一锅水热处理,可用于制备具有优异光致发光性能的NCQDs。在最佳条件下,这些NCQDs在390/490 nm激发/发射下呈现蓝绿色荧光(FL)。NCQDs表现出pH值和激发波长依赖性的FL发射行为。基于这些NCQDs对特定溶剂的特殊选择性响应,我们开发了一种用于检测甲醛(FA)的FL探针。发现NCQDs的FL强度在0.05至2 mM范围内与FA浓度成正比(R = 0.993),检测限为4.64 μM(基于3σ)。发现由NCQDs与聚乙烯醇组成的复合膜可作为对FA气体具有良好FL响应的传感器。当暴露于气态FA时,该膜的FL强度增加,并从蓝绿色转变为蓝色。提出了一种机制,即NCQDs与FA快速反应生成席夫碱,导致FL发射增强和观察到的颜色蓝移。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/2e0b/9040886/d65b7fb00979/d1ra05370a-s1.jpg
