具有增强散热性能的银/聚酰亚胺复合薄膜的制备

fabrication of silver/polyimide composite films with enhanced heat dissipation.

作者信息

Lee So Yoon, Huh Tae-Hwan, Jeong Hye Rim, Kwark Young-Je

机构信息

Department of Information Communication, Materials Engineering, Chemistry Convergence Technology, Soongsil University Seoul 06978 Republic of Korea.

Department of Organic Materials and Fiber Engineering, Soongsil University Seoul 06978 Republic of Korea

出版信息

RSC Adv. 2021 Aug 3;11(43):26546-26553. doi: 10.1039/d1ra02380b. eCollection 2021 Aug 2.

Abstract

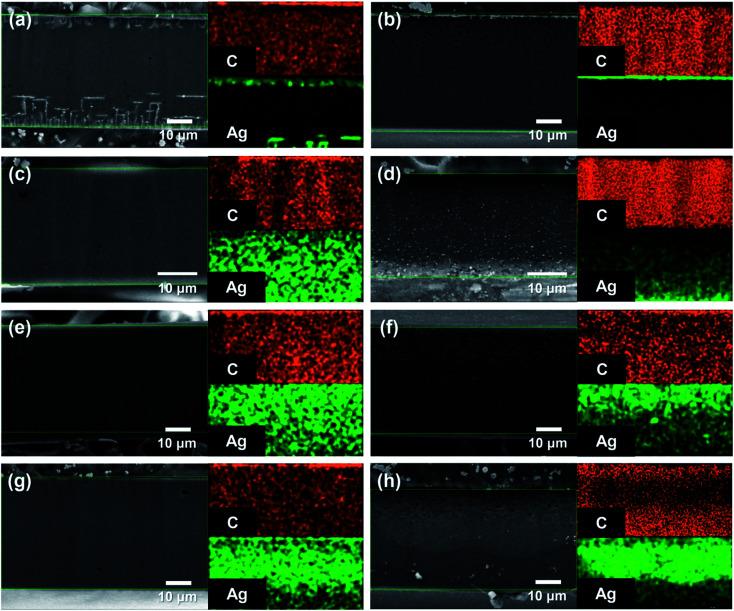

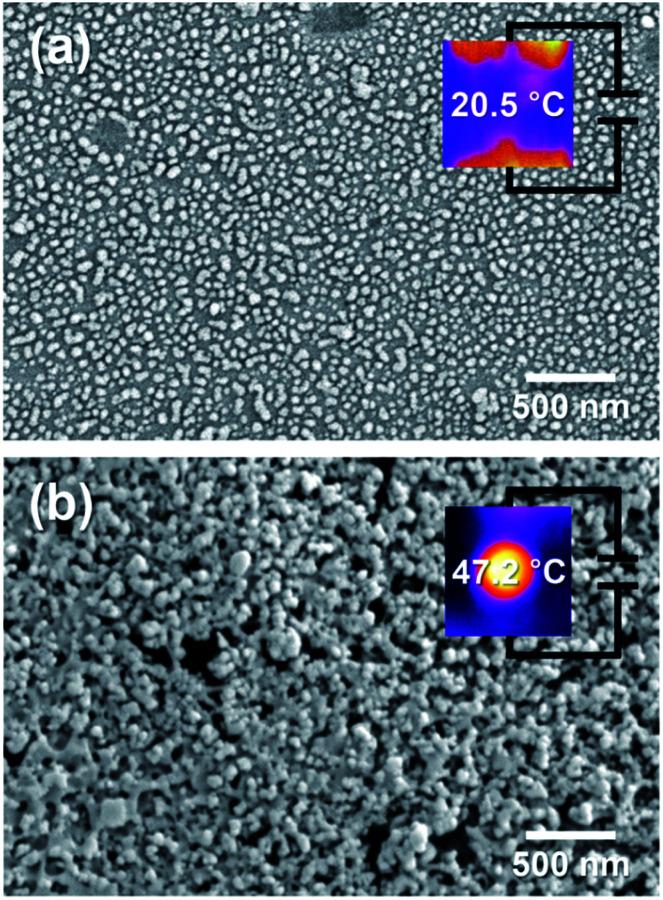

In this study, silver/polyimide (Ag/PI) composite films with enhanced heat dissipation properties were prepared. Ag was formed by reducing AgNO at various locations according to the reduction method. Two different types of soluble PIs capable of solution processing were used, namely Matrimid and hydroxy polyimide (HPI). Unlike Matrimid with bulky substituents, HPI with polar hydroxy groups formed ion-dipole interactions with Ag ions to form Ag particles with uniform size distribution. The location and distribution of Ag particles affect the heat emission characteristics of the composite films, resulting in better heat dissipation properties with the thermally and photochemically reduced Ag/HPI films having more Ag particles distributed inside of the films than the chemically reduced films.

摘要

在本研究中,制备了具有增强散热性能的银/聚酰亚胺(Ag/PI)复合薄膜。根据还原法,在不同位置通过还原AgNO₃形成Ag。使用了两种能够进行溶液加工的不同类型的可溶性聚酰亚胺,即Matrimid和羟基聚酰亚胺(HPI)。与具有庞大取代基的Matrimid不同,带有极性羟基的HPI与Ag离子形成离子-偶极相互作用,从而形成尺寸分布均匀的Ag颗粒。Ag颗粒的位置和分布会影响复合薄膜的散热特性,与化学还原薄膜相比,热化学还原的Ag/HPI薄膜内部有更多的Ag颗粒分布,从而具有更好的散热性能。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6e1c/9037336/4fae2c3f69ff/d1ra02380b-f1.jpg
